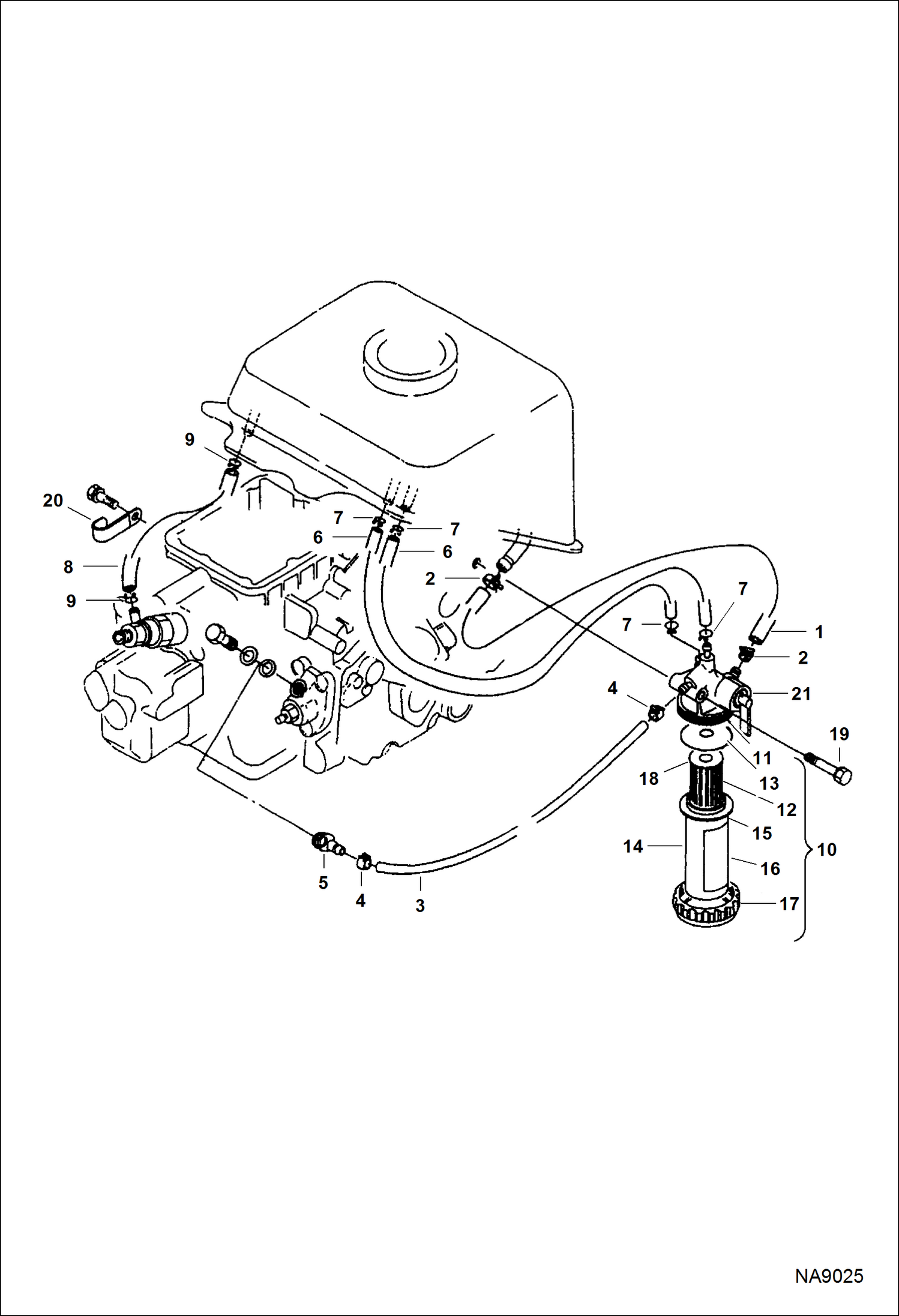

Запчасти Bobcat DOUBLE DRUM ROLLER ENGINE (Fuel Filter) POWER UNIT

1

7031089

PIPE, RETURN FUEL W/Ref. 2

2

PIPE CLIP NSS - Order Ref. 1

3

7031002

PIPE, FUEL ASSY W/Ref. 4

4

PIPE CLIP NSS - Order Ref. 3

5

7031003

FITTING

6

7031090

PIPE, BREATHER W/Ref. 7

7

PIPE CLIP NSS - Order Ref. 6

8

7031114

HOSE W/Ref. 9

9

PIPE CLIP NSS - Order Ref. 8

10

7031004

FILTER, FUEL ASSY W/Ref. 11-17

11

7031005

FILTER, FUEL ASSY

12

7031064

FILTER, FUEL ASSY

13

7031006

O-RING

14

7031007

BOWL, FUEL W/Ref. 15 & 16

15

FILTER CUP NSS - Order Ref. 14

16

FUEL FILTER LABEL NSS - Order Ref. 14

17

7031008

RING, RETAINING

18

7031009

O-RING

19

7031010

BOLT

20

7030913

CLAMP, CORD

21

HEAD NSS
