ENGINE (Governor)

Запчасти Bobcat DOUBLE DRUM ROLLER ENGINE (Governor) POWER UNIT

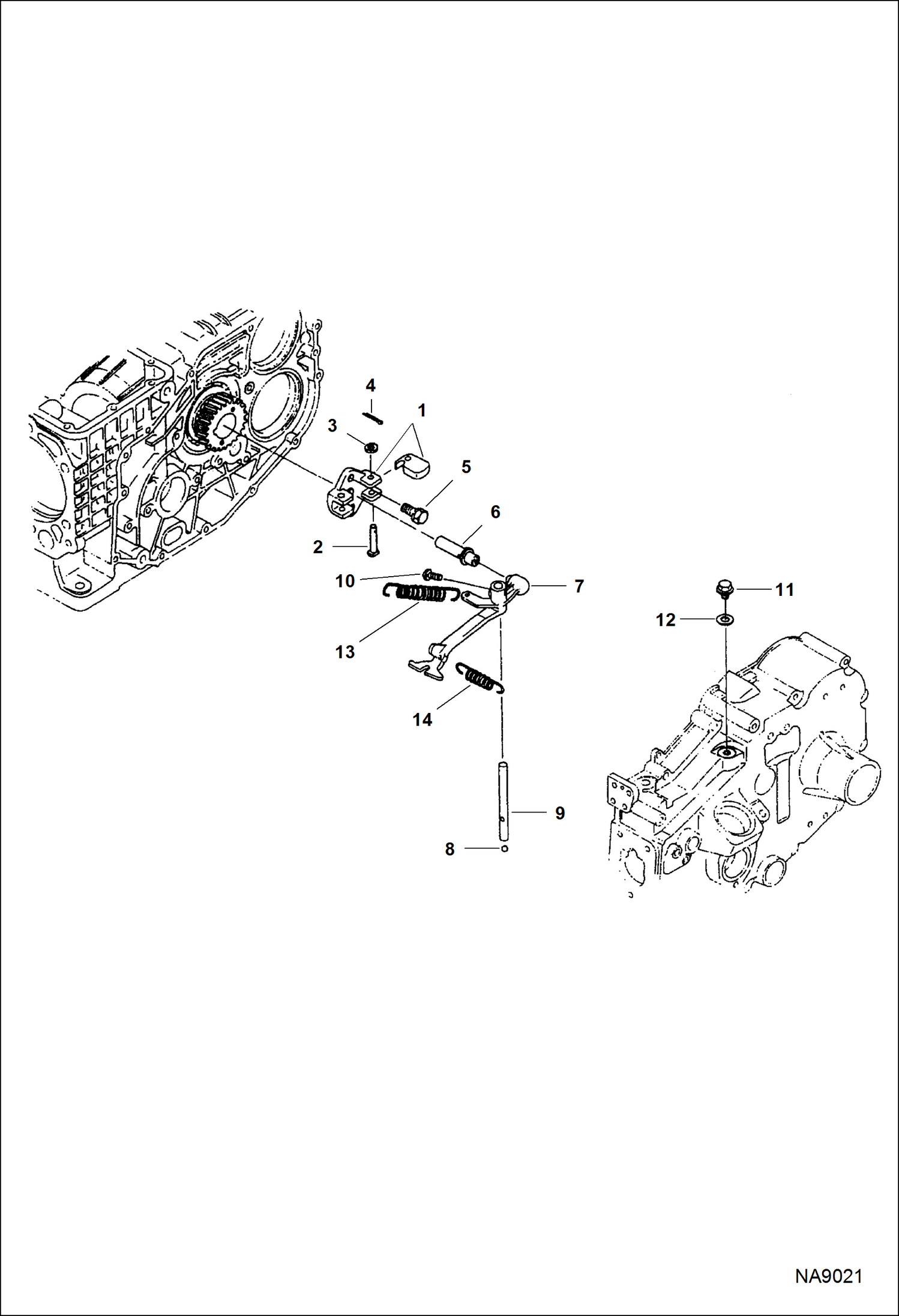

Схема запчастей Bobcat DOUBLE DRUM ROLLER - ENGINE (Governor) POWER UNIT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7031016

WEIGHT, GOVERNOR W/Ref. 2-4

2

GOVERNOR WEIGHT PIN NSS - Order Ref. 1

3

WASHER NSS - Order Ref. 1

4

SPLIT PIN NSS - Order Ref. 1

5

7030973

BOLT

6

7031017

SHAFT governor

7

7031018

LEVER, GOVERNOR ASSY

8

7031024

BEARING BALL

9

7031019

SHAFT, LEVER governor

10

7031020

BOLT, W/WASHER

11

7031021

PLUG

12

7030899

GASKET

13

7031023

SPRING, GOVERNOR

14

7031022

SPRING
