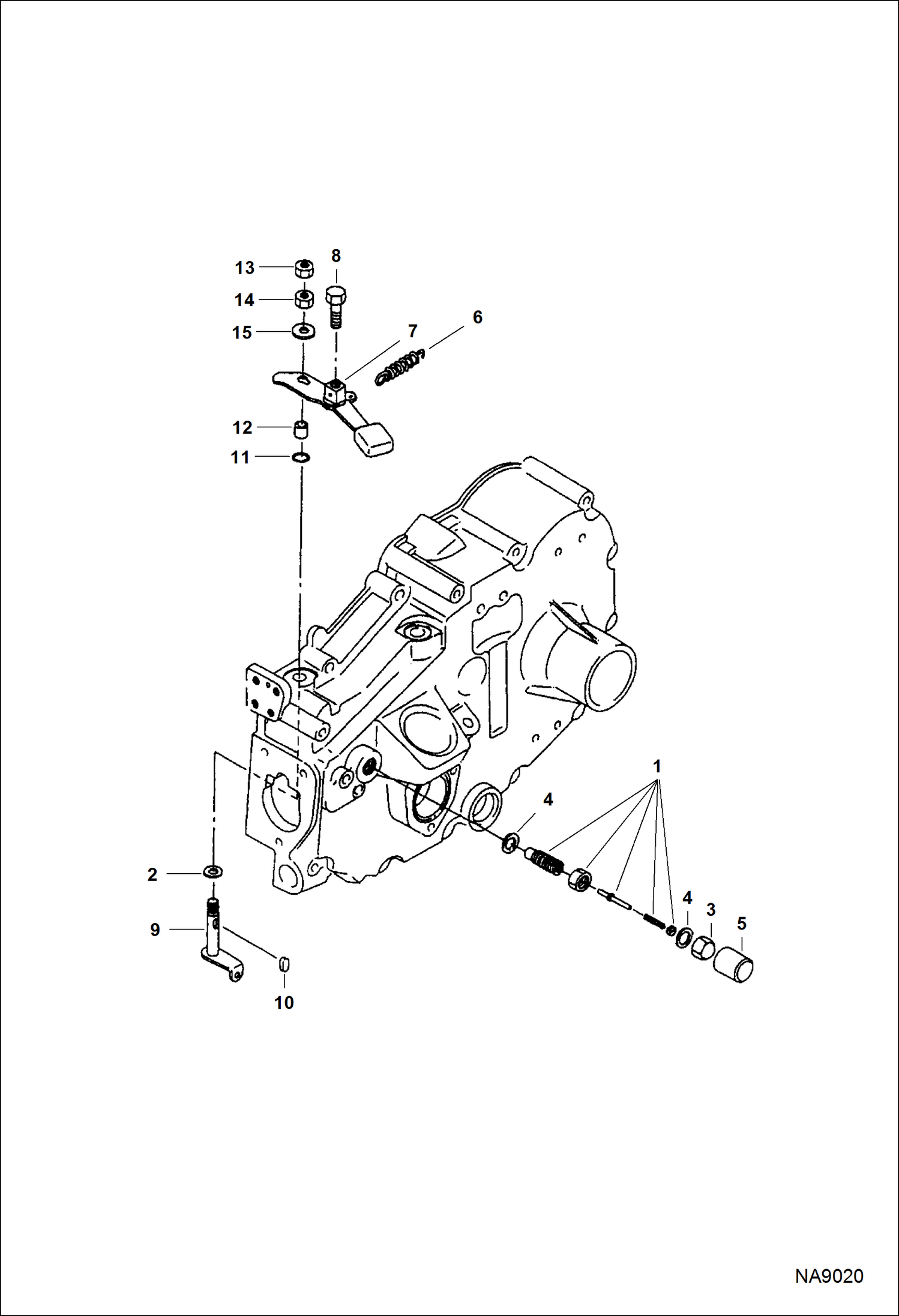

Запчасти Bobcat DOUBLE DRUM ROLLER ENGINE (Fuel Assy) POWER UNIT

1

7030774

BOLT, ADJUSTING

2

7031055

WASHER

3

7030775

NUT, CAP

4

7030776

GASKET

5

7030869

CAP

6

7030857

SPRING, STOP

7

7031025

LEVER, SPEED CONTROL W/Ref. 8

8

BOLT NSS - Order Ref. 7

9

7031026

SHAFT, LEVER control

10

7031027

KEY, SHAFT

11

7031028

O-RING

12

7031029

PLATE friction

13

7031030

NUT

14

7030930

NUT

15

7031031

WASHER
