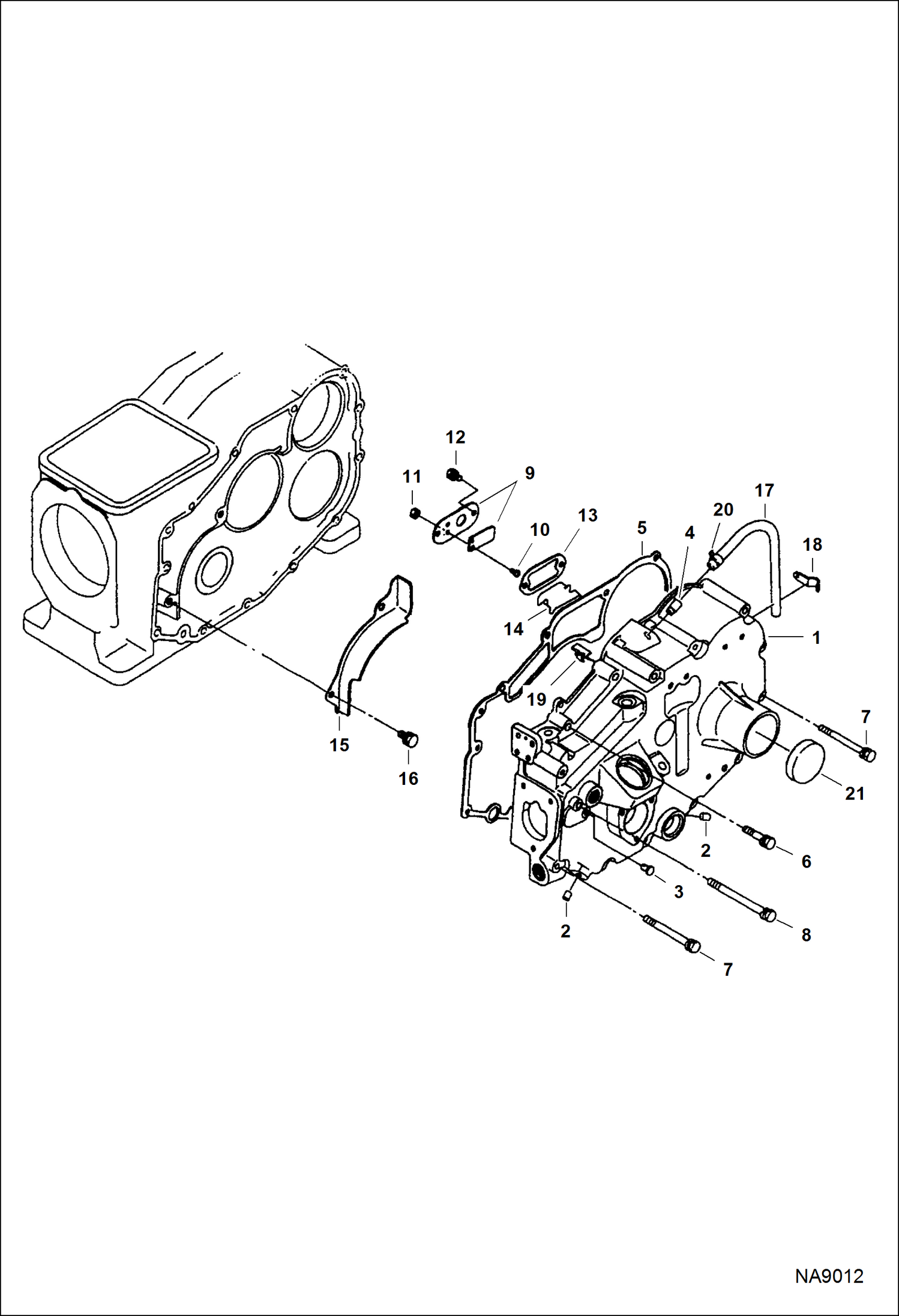

Запчасти Bobcat DOUBLE DRUM ROLLER ENGINE (Gearcase) POWER UNIT

1

7030850

COVER, GEARCASE W/Ref. 2-4 & 21

2

7030904

PLUG

3

7030905

PIN, SPRING

4

7030906

JOINT, HOSE

5

7030907

GASKET, GEARCASE

6

7030894

BOLT

7

7030908

BOLT

8

7030909

BOLT

9

7030845

FILTER, AIR CLEANER ASSY W/Ref. 10-12

10

SCREW W/WASHER NSS - Order Ref. 9

11

NUT NSS - Order Ref. 9

12

7031091

BOLT, W/WASHER

13

7030910

GASKET breather

14

7030911

PLATE, INNER breather

15

7030912

GUARD, BREATHER oil

16

7030966

BOLT

17

7031002

PIPE, FUEL ASSY W/Ref. 20

18

7030913

CLAMP, CORD

19

7030914

GUARD, BREATHER oil

20

PIPE CLIP NSS - Order Ref. 17

21

7030873

PLUG
