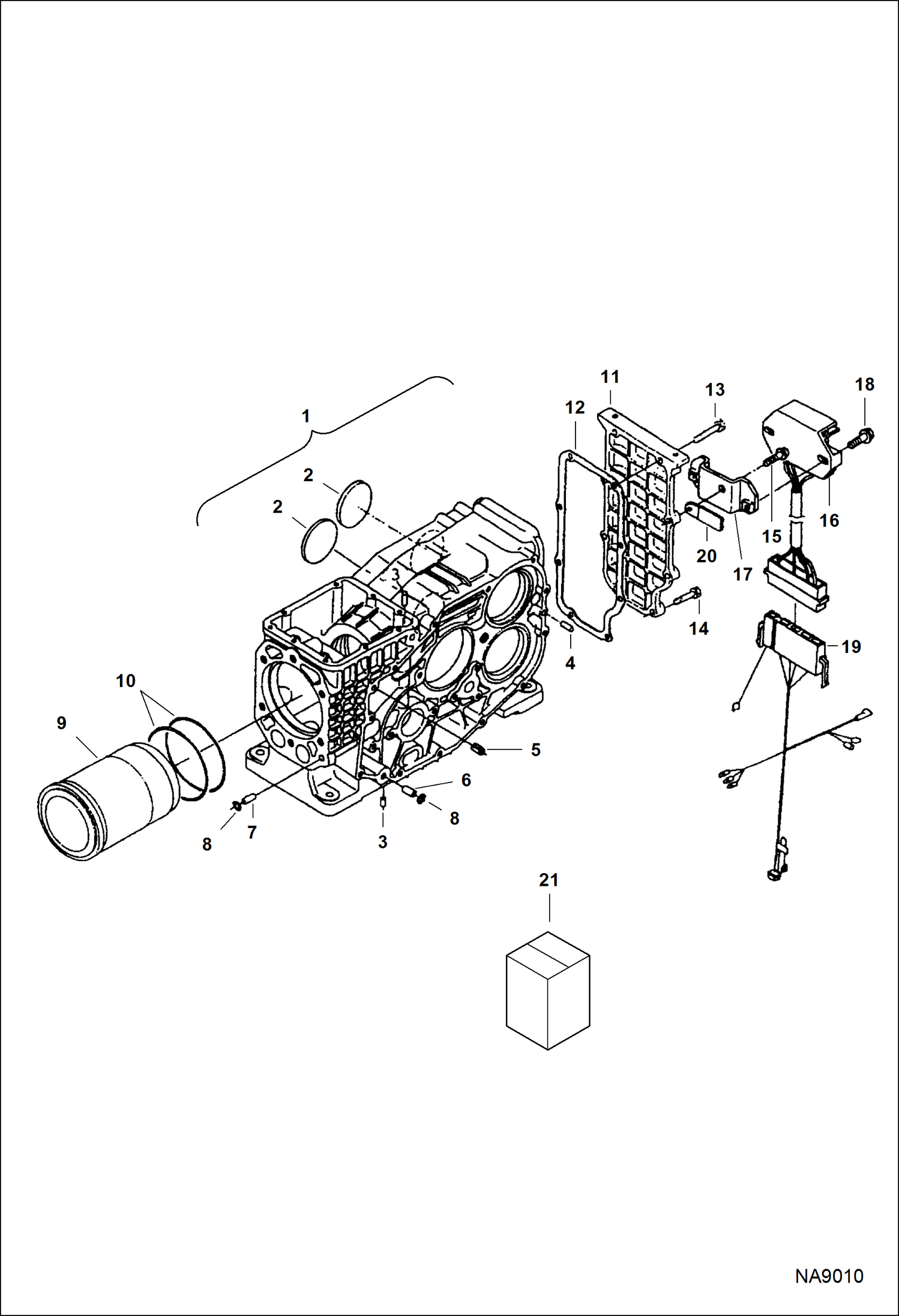

Запчасти Bobcat DOUBLE DRUM ROLLER ENGINE (Crankcase) POWER UNIT

1

7030833

BLOCK, ENG W/Ref. 2-8

2

7030878

PLUG seal

3

7030904

PLUG pin

4

7030879

PIN, STRAIGHT

5

7030887

PIN, SPRING

6

7030888

PIN pipe

7

7030889

PIN pipe

8

7030890

O-RING

9

7030891

LINER, ENG cylinder

10

7030892

O-RING

11

7030893

COVER crankcase

12

7030868

GASKET, COVER crankcase

13

7030894

BOLT

14

7030895

BOLT

15

7030838

BOLT, FLANGE

16

7030856

REGULATOR, VOLTAGE

17

7030846

BRACKET regulator

18

7030779

BOLT, FLANGE

19

7030854

HARNESS, ENG

20

7030913

CLAMP, CORD

21

7030767

KIT, GASKET
