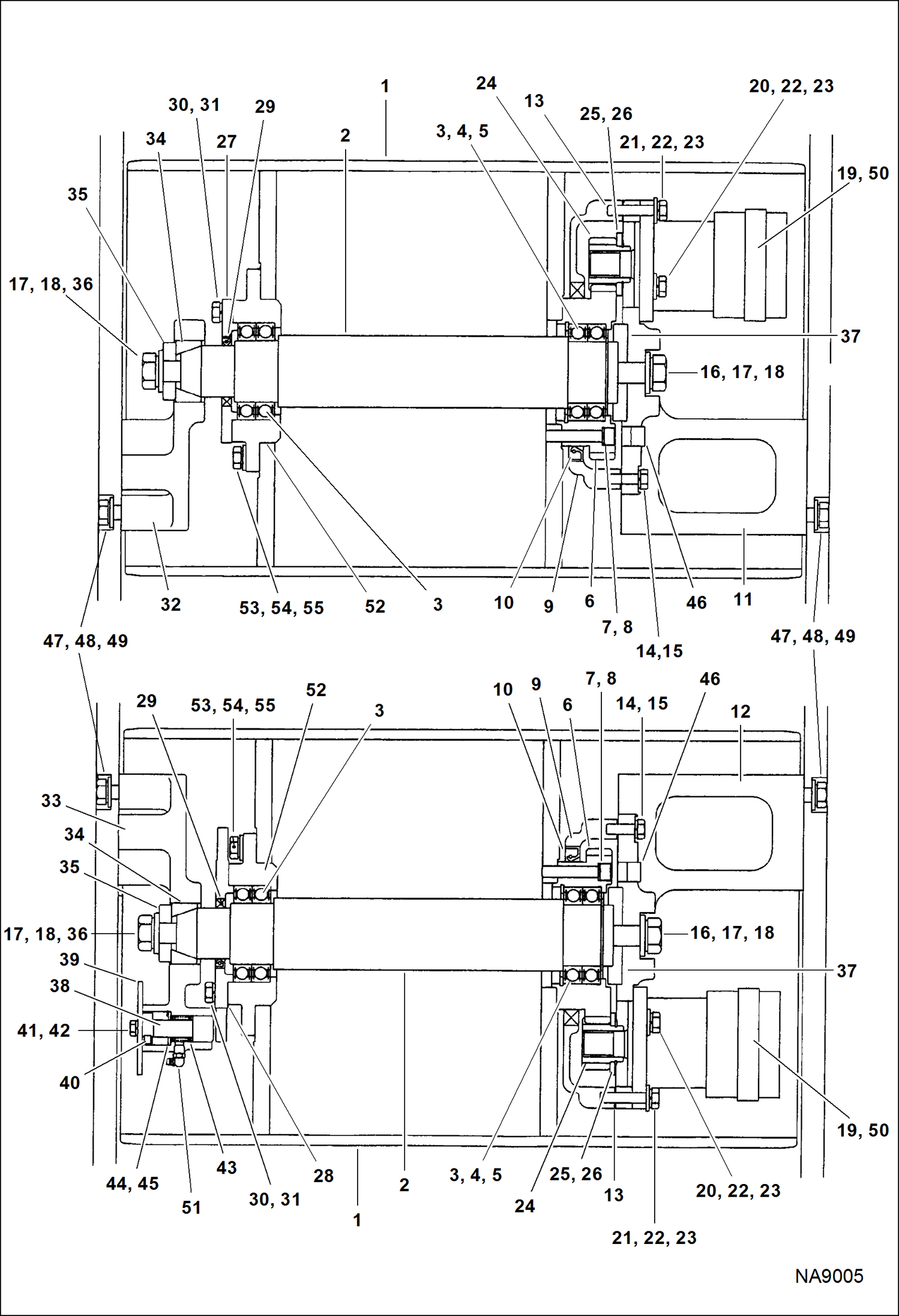

Запчасти Bobcat DOUBLE DRUM ROLLER DRUM DRUM

1

7030528

DRUM, ROLLER

2

7030529

SHAFT

3

7030607

BEARING BALL

4

7030608

RING, SNAP

5

7030609

RING, SNAP

6

7030530

GEAR, SHAFT

7

7030610

BOLT

8

7031133

WASHER

9

7030611

BEARING

10

7030612

SEAL oil

11

7030531

BRACKET, FRONT

12

7030532

BRACKET, REAR

13

7030613

GASKET

14

7031140

BOLT

15

7031066

WASHER, SPRING

16

7031144

BOLT

17

7030514

WASHER

18

7030497

WASHER

19

7030615

MOTOR, DRIVE HYD

20

7031140

BOLT

21

7030580

BOLT

22

7031066

WASHER, SPRING

23

7031070

WASHER

24

7030616

GEAR, PINION

25

7030617

PLATE, SET gear

26

7030560

RING, SNAP

27

7030618

COVER

28

7030619

FLANGE brake

29

7030620

SEAL oil

30

7031140

BOLT

31

7031066

WASHER, SPRING

32

7030535

BRACKET, FRONT

33

7030536

BRACKET, REAR

34

7030621

COLLAR taper

35

7030622

WASHER

36

7030614

BOLT

37

7030533

SPACER

38

7030623

PIN brake

39

7030624

LEVER, BRAKE

40

7030625

SET SCREW

41

7031141

BOLT

42

7031135

WASHER, SPRING

43

7031151

SPRING, RETURN

44

7030626

WASHER

45

7031152

RING, SNAP

46

7030627

PLUG

47

7030491

BOLT

48

7030759

WASHER

49

7030495

WASHER

50

7030628

KIT, SEAL

51

7030505

FITTING, GREASE

52

7030534

SLEEVE

53

7031136

BOLT

54

7031129

WASHER

55

7030549

WASHER
