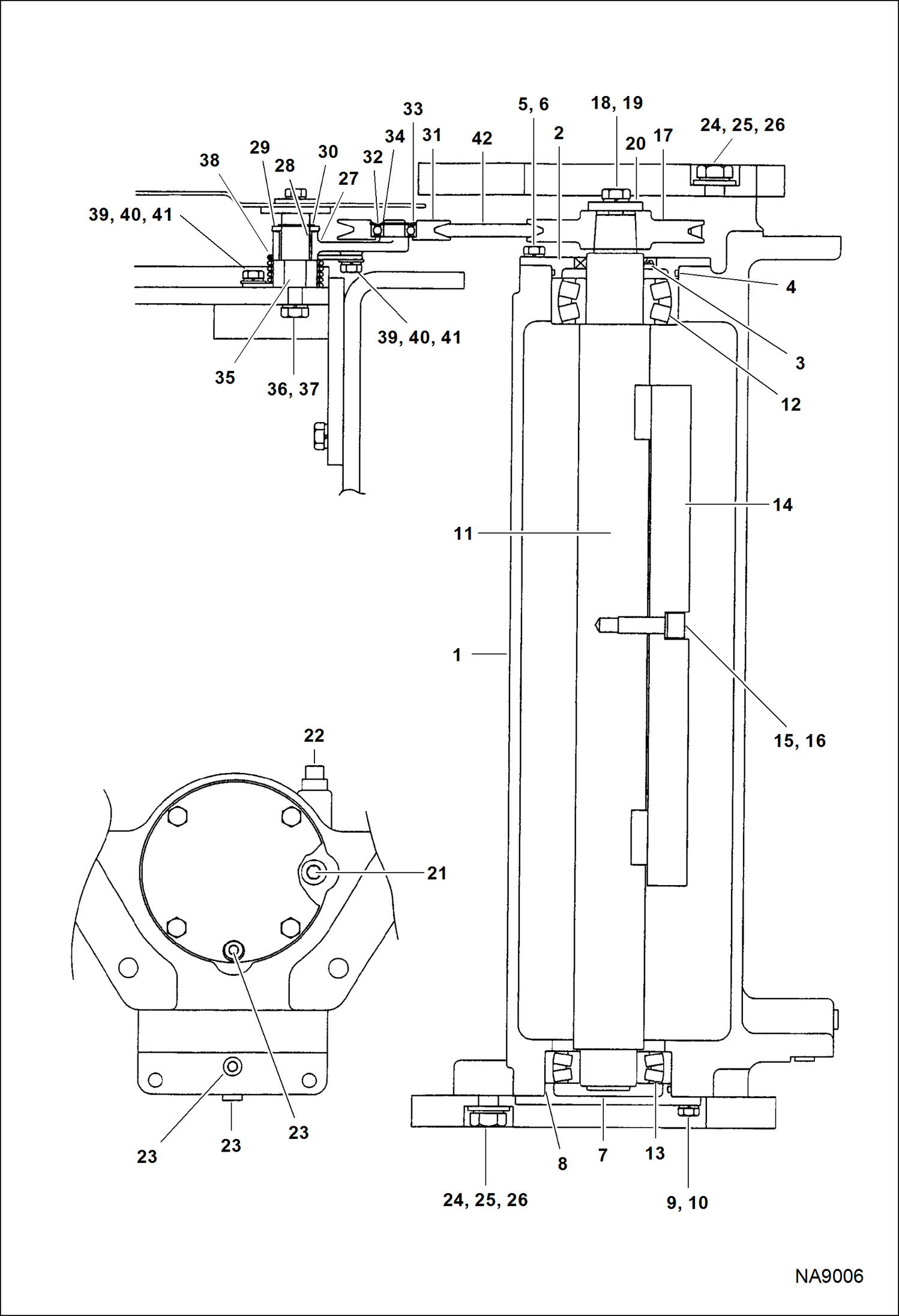

Запчасти Bobcat DOUBLE DRUM ROLLER ECCENTRIC CASE MAIN FRAME

1

7030537

FRAME

2

7030629

COVER

3

7030630

SEAL, OIL

4

7030631

O-RING

5

7031141

BOLT

6

7031135

WASHER, SPRING

7

7030538

COVER, BEARING

8

7030631

O-RING

9

7031141

BOLT

10

7031135

WASHER, SPRING

11

7030539

SHAFT eccentric

12

7030754

BEARING, ROLLER

13

7030498

BEARING roller

14

7030540

WEIGHT ASSY

15

7030632

BOLT

16

7031129

WASHER

17

7030541

PULLEY

18

7031069

BOLT

19

7031066

WASHER, SPRING

20

7030633

WASHER

21

7030634

PLUG

22

7030635

PLUG

23

7030636

PLUG

24

7030491

BOLT

25

7030759

WASHER

26

7030495

WASHER

27

7030637

ARM, TENSIONER

28

7030638

BUSHING

29

7030639

WASHER

30

7031157

RING, SNAP

31

7030640

PULLEY

32

7030641

BEARING BALL

33

7031152

RING, SNAP

34

7030642

RING, SNAP

35

7030542

SHAFT arm

36

7031140

BOLT

37

7031066

WASHER, SPRING

38

7030643

SPRING

39

7031126

BOLT

40

7031135

WASHER, SPRING

41

7030569

WASHER

42

7030755

BELT, CASE ECCENTRIC
