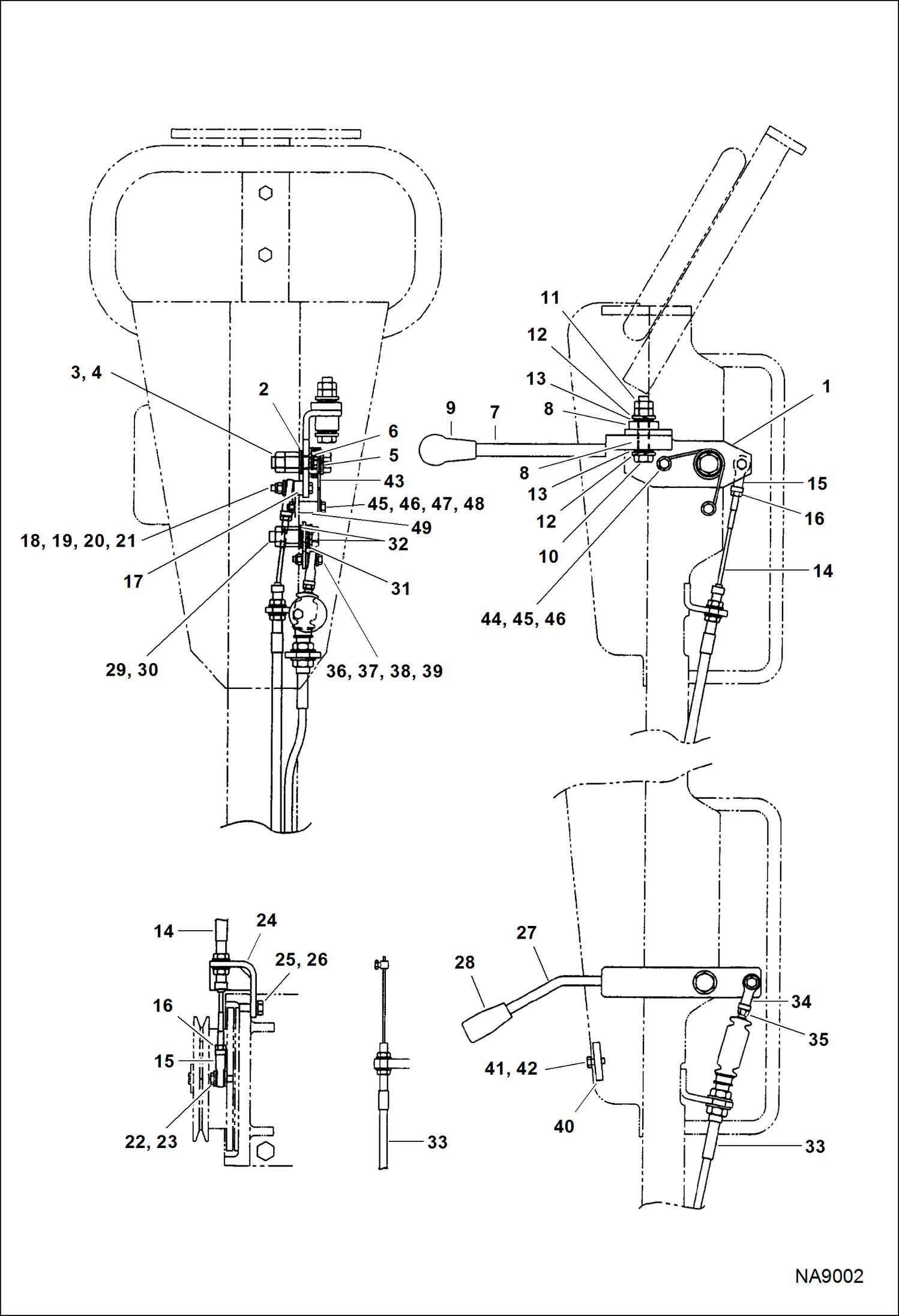

Запчасти Bobcat DOUBLE DRUM ROLLER VIBRATION LEVER/THROTTLE LEVER MAIN FRAME

1

7030673

HOLDER vibration

2

7030661

BUSHING

3

7030674

BOLT

4

7031131

NUT

5

7030663

WASHER

6

7030664

SPRING friction

7

7030675

LEVER vibration

8

7030676

BUSHING

9

7030662

KNOB vibration lever

10

7030677

BOLT

11

7030760

NUT

12

7031070

WASHER

13

7030678

SPRING friction

14

7030507

CABLE ASSY vibration

15

7030666

END, ROD

16

7031116

NUT

17

7030679

COLLAR

18

7030680

BOLT

19

7031185

WASHER

20

7031147

WASHER, SPRING

21

7030667

NUT

22

7031075

BOLT

23

7031185

WASHER

24

7030681

BRACKET

25

7031141

BOLT

26

7031135

WASHER, SPRING

27

7030682

LEVER, THROTTLE

28

7031068

KNOB throttle lever

29

7031117

BOLT

30

7031131

NUT

31

7030663

WASHER

32

7030664

SPRING friction

33

7030683

CABLE, THROTTLE

34

7030666

END, ROD

35

7031116

NUT

36

7031187

BOLT

37

7031185

WASHER

38

7031147

WASHER, SPRING

39

7030667

NUT

40

7030684

COLLAR

41

7030685

BOLT

42

7031147

WASHER, SPRING

43

7030686

SPRING

44

7031156

BOLT

45

7031147

WASHER, SPRING

46

7031139

WASHER

47

7030680

BOLT

48

7031116

NUT

49

7030687

COLLAR
