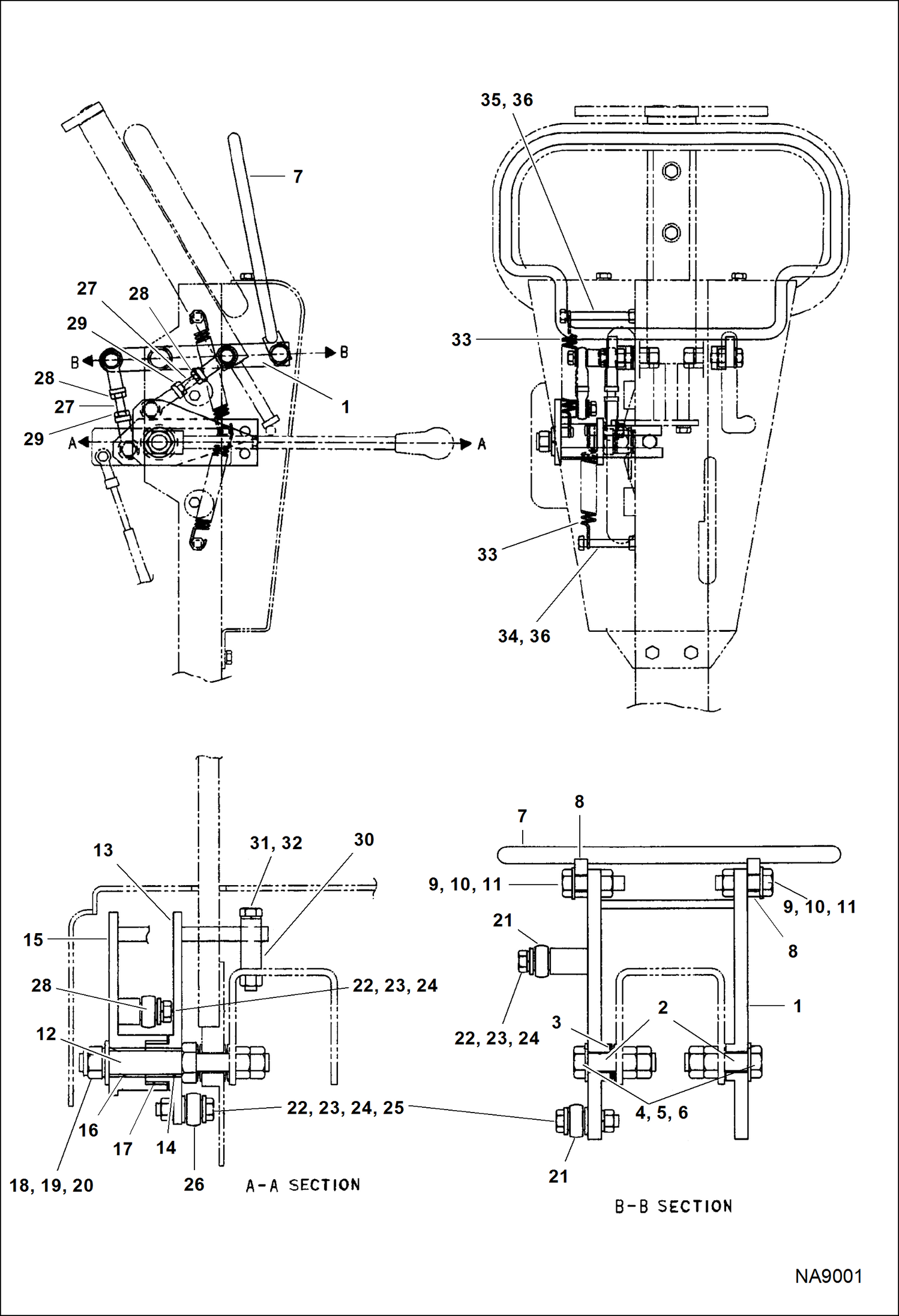

Запчасти Bobcat DOUBLE DRUM ROLLER OPERATING HANDLE (Neutral) MAIN FRAME

1

7030688

BRACKET, HANDLE

2

7030661

BUSHING

3

7031129

WASHER

4

7030674

BOLT

5

7031131

NUT

6

7031074

WASHER

7

7030689

HANDLE neutral

8

7030690

BUSHING

9

7031132

BOLT

10

7030726

WASHER

11

7030760

NUT

12

7030691

SHAFT arm

13

7030692

ARM, NEUTRAL (A)

14

7030693

BUSHING

15

7030694

ARM, NEUTRAL (B)

16

7030693

BUSHING

17

7030695

BUSHING

18

7030484

NUT

19

7031130

WASHER, SPRING

20

7031074

WASHER

21

7031146

ROD, END

22

7031073

BOLT

23

7030669

WASHER

24

7031135

WASHER, SPRING

25

7031145

NUT

26

7030696

END, ROD

27

7030697

ROD

28

7031145

NUT

29

7030698

NUT

30

7030699

GUIDE stop

31

7031072

BOLT

32

7031135

WASHER, SPRING

33

7030700

SPRING

34

7031072

BOLT

35

7030701

BOLT

36

7031145

NUT
