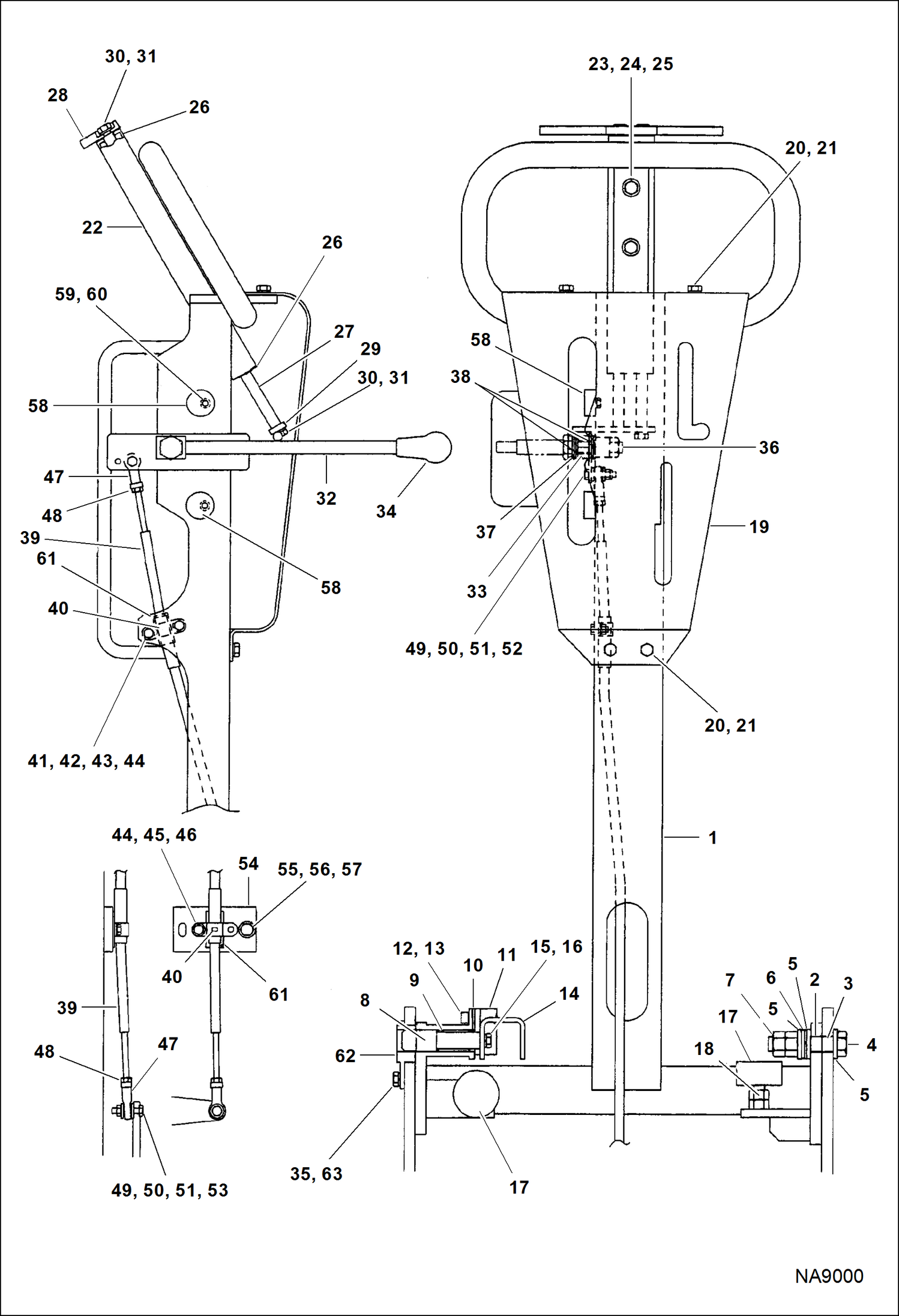

Запчасти Bobcat DOUBLE DRUM ROLLER OPERATING HANDLE (Forward/Reverse) MAIN FRAME

1

7030644

HANDLE, OPERATING

2

7030499

BUSHING

3

7030499

BUSHING

4

7030645

BOLT

5

7030493

WASHER

6

7030646

SPRING friction

7

7030647

NUT

8

7030648

PIN

9

7031151

SPRING, RETURN

10

7030649

COLLAR

11

7030650

BRACKET

12

7030651

BOLT

13

7031127

WASHER

14

7030652

HOOK

15

7031141

BOLT

16

7031135

WASHER, SPRING

17

7031143

BUMPER, RUBBER

18

7031131

NUT

19

7030653

GUIDE, LEVER

20

7030763

BOLT

21

7031135

WASHER, SPRING

22

7030654

HOLDER neutral

23

7031141

BOLT

24

7031135

WASHER, SPRING

25

7030655

WASHER

26

7030656

BUSHING

27

7030657

ROD

28

7030658

BAR

29

7030659

BAR

30

7030763

BOLT

31

7031135

WASHER, SPRING

32

7030660

LEVER forward/reverse

33

7030661

BUSHING

34

7030662

KNOB forward/reverse

35

7031135

WASHER, SPRING

36

7031131

NUT

37

7030663

WASHER

38

7030664

SPRING friction

39

7030506

CABLE ASSY forward/reverse

40

7030665

BRACKET

41

7031075

BOLT

42

7031147

WASHER, SPRING

43

7031116

NUT

44

7031185

WASHER

45

7031156

BOLT

46

7031147

WASHER, SPRING

47

7030666

END, ROD

48

7031116

NUT

49

7031187

BOLT

50

7031185

WASHER

51

7031147

WASHER, SPRING

52

7030667

NUT

53

7031116

NUT

54

7030668

PLATE, SET clamp

55

7031071

BOLT

56

7031135

WASHER, SPRING

57

7030669

WASHER

58

7030670

COLLAR

59

7030591

BOLT

60

7031147

WASHER, SPRING

61

7030671

SPACER

62

7030672

HOLDER

63

7030763

BOLT
