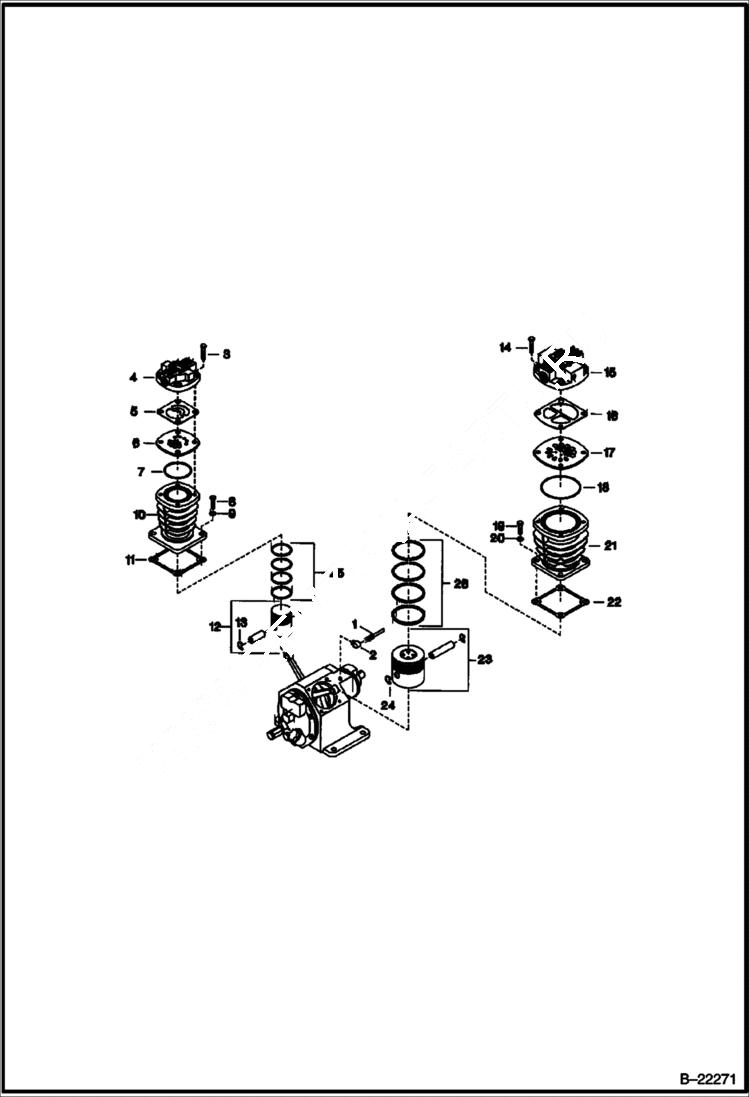

Запчасти Bobcat AIR COMPRESSOR COMPRESSOR PUMP MAIN FRAME

1

IR32295651

TUBE ASSY breather

2

IR95031860

ELBOW

3

IR95104188

SCREW

4

IR32247827

HEAD HP

5

IR32247926

GASKET head - HP

6

VALVE PLATE See Illustration COMPRESSOR PUMP/ B22269 ASSY - HP

7

IR32246878

O-RING

8

IR95035333

SCREW

9

IR95674677

GASKET

10

IR32294415

CYLINDER air

11

IR32293623

GASKET flange

12

IR32496606

PISTON ASSY complete - HP

13

IR35151067

RING lock

14

IR95104188

SCREW

15

IR32247694

HEAD LP

16

IR32247934

GASKET head - LP

17

VALVE PLATE See Illustration COMPRESSOR PUMP/ B22270 ASSY - LP

18

IR32246910

O-RING

19

IR95035333

SCREW

20

IR95674677

GASKET

21

IR32293656

CYLINDER LP

22

IR32293623

GASKET flange

23

IR32496572

PISTON ASSY complete - LP

24

IR35151067

RING lock

25

IR37138237

RING SET hp

26

IR32194276

RING SET lp
