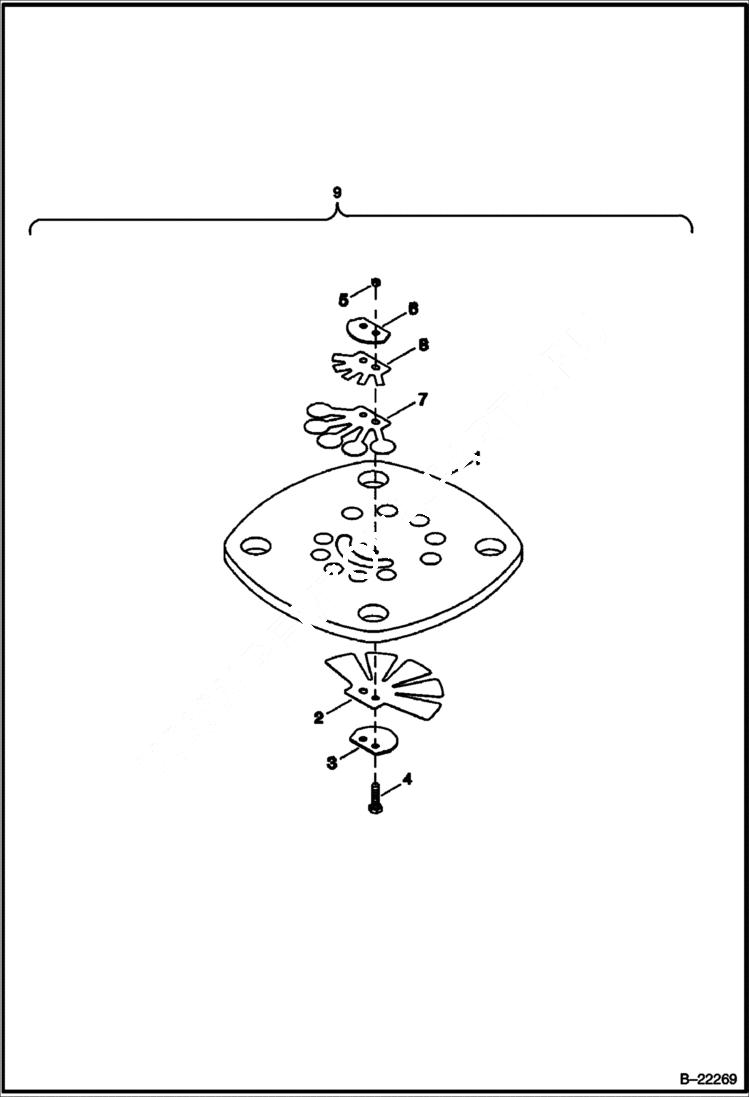

Запчасти Bobcat AIR COMPRESSOR COMPRESSOR PUMP MAIN FRAME

1

valve plate NSS - HP

2

IR32236671

FINGER VALVE HP - inlet

3

IR32297343

RETAINER HP

4

IR97511042

SCREW

5

IR97511059

NUT

6

IR32295461

RETAINER HP

7

IR32241010

FINGER VALVE HP - discharge

8

IR32295479

DAMPER valve

9

IR32310799

VALVE PLATE assy - HP - Ref. 1-8
