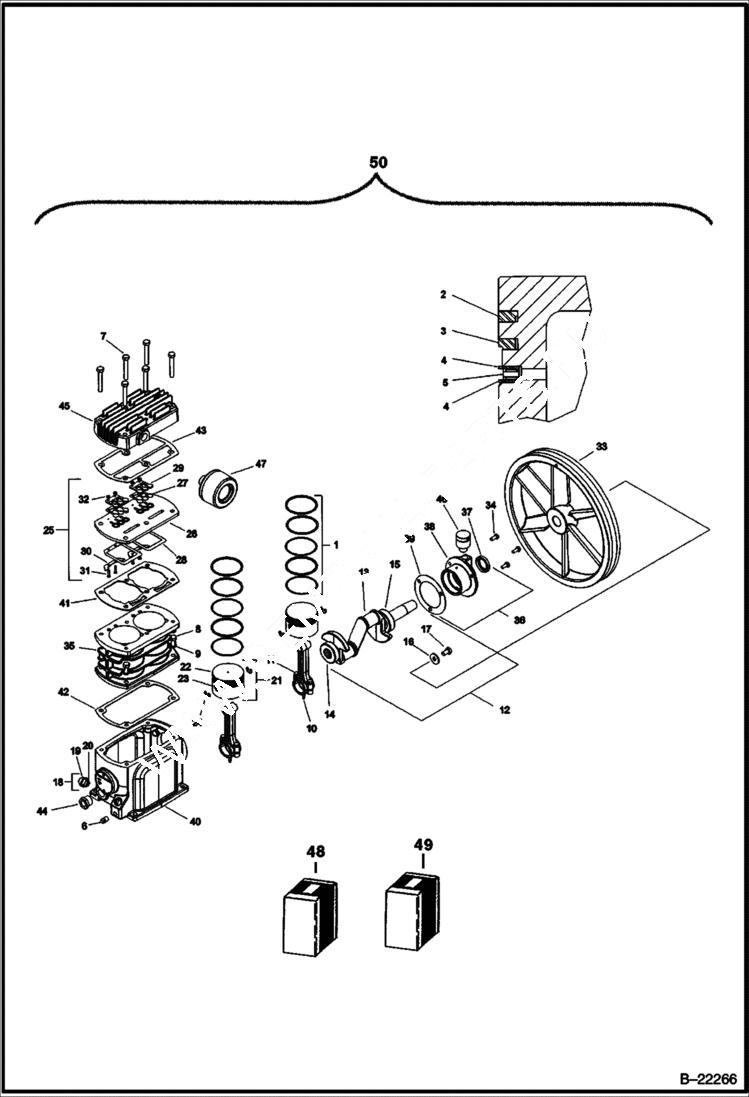

Запчасти Bobcat AIR COMPRESSOR COMPRESSOR PUMP MAIN FRAME

1

IR32307092

PISTON RING SET Ref 2 Ref 3 Ref 4 Ref 5

2

RING NSS - compression

3

RING NSS - scraper

4

RING NSS - oil control spacer

5

RING NSS - oil control

6

IR95033585

PLUG oil drain

7

IR96715784

SCREW

8

IR96716113

SCREW

9

IR96728316

WASHER

10

IR97330427

ROD W/Ref 11 connecting

11

IR96702246

SCREW

12

IR97338081

CRANKSHAFT Ref 13 Ref 14 Ref 15 Ref 16 Ref 17 assy

13

CRANKSHAFT NSS

14

Bearing NSS - main

15

BEARING NSS - ball

16

IR54375977

WASHER

17

IR54440045

SCREW

18

IR49812050

OIL FILL ASSY Ref 19 Ref 20

19

OIL FILL PLUG NSS

20

IR95024394

O-RING oil fill plug

21

IR97330468

PISTON & PIN Ref 22 Ref 23 Ref 24 assy

22

PISTON NSS

23

PIN NSS - piston

24

RING NSS - lock

25

IR97330484

VALVE ASSY REF. 26-32

26

PLATE NSS - valve

27

VALVE NSS - discharge

28

VALVE NSS - inlet

29

STOP NSS - discharge

30

RETAINER NSS - inlet

31

SCREW NSS

32

NUT NSS

33

IR97330492

BELT WHEEL

34

IR97330500

SCREW

35

IR97330625

CYLINDER

36

IR97338073

END COVER ASSY Ref 37 Ref 38 Ref 39

37

IR32204521

SEAL shaft

38

END COVER NSS

39

IR97331227

GASKET end cover

40

IR97330641

FRAME compressor

41

IR97330658

GASKET valve plate

42

IR97330666

GASKET cylinder

43

IR54571609

GASKET head

44

IR97330682

SIGHT GLASS

45

IR97330690

HEAD

46

IR70243936

VENT ASSY

47

IR70243399

FILTER inlet

47

IR70243712

ELEMENT

48

IR97338107

kit valve - Ref. 25, 41 & 43

49

IR97338115

kit ring - Ref. 1 & 42

50

IR18002378

PUMP compressor - W/Ref 1-47 - Was IR97330419
