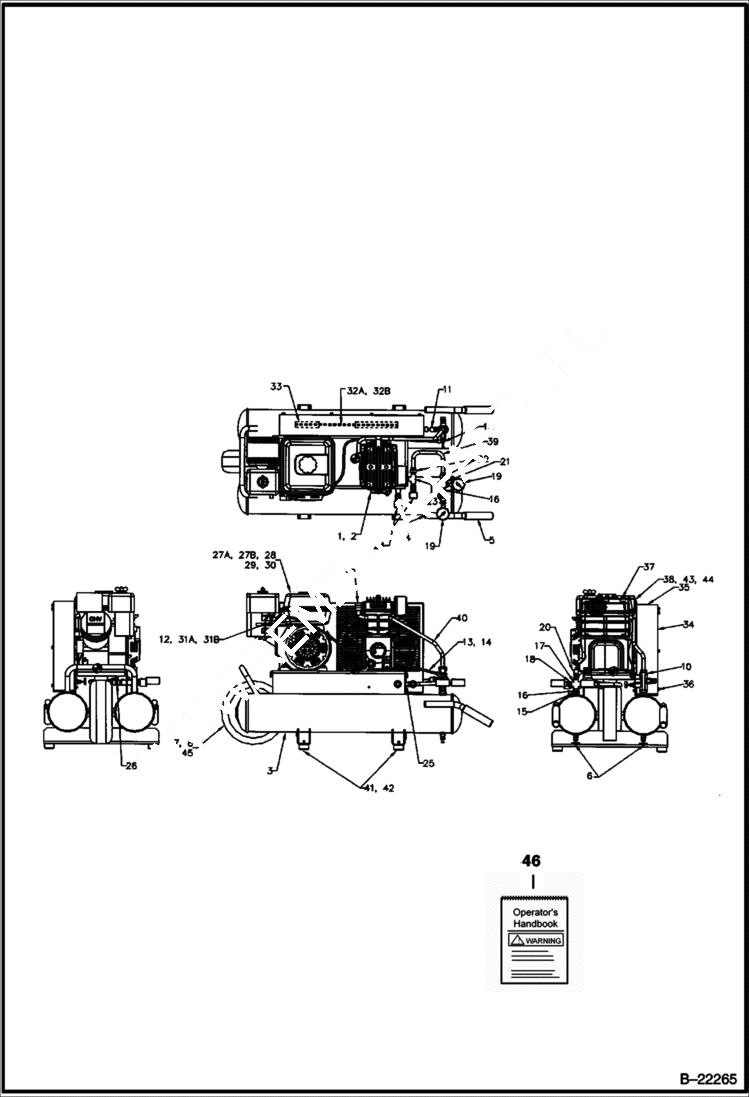

Запчасти Bobcat AIR COMPRESSOR MAIN FRAME MAIN FRAME

1

IR18002378

PUMP compressor - Was IR97330419 - A

2

IR56290794

SCREW

3

TANK NLA - 8 gallon - Was IR54639943 - A

4

IR54394036

PLUG

5

IR97171060

GRIP

6

IR32027120

VALVE manual drain

7

IR54389572

AXLE

8

IR54506001

WHEEL

9

IR95040184

ELBOW

10

IR56288756

VALVE ASSY unloader

11

IR54381348

VALVE safety/relief

12

IR39155577

ELBOW

13

IR97265912

TUBING unloader - 3 feet

14

IR97182240

INSERT nylon

15

IR32179012

BUSHING

16

IR95242442

NIPPLE

17

IR32127201

CROSS

18

IR97503023

BUSHING filtered

19

IR54494075

GAUGE pressure

20

IR97010094

VALVE safety/relief

21

IR37992849

REGULATOR pressure

22

IR95083200

CONNECTOR

23

IR32140956

PIPE TEE

24

IR32238354

quick connect

25

IR32186496

NIPPLE

26

IR37143542

ELBOW

27

IR97339451

ENGINE, HONDA BA5.5-W

27

IR56286701

ENGINE, BRIGGS AND STRATTON SS3J5.5GB-WB

28

IR58879461

SCREW

29

IR54391545

NUT

30

IR95094389

KEY

31

IR54460555

CYLINDER

32

IR32205601

BELT

33

IR22921860

SHEAVE Was IR54640289 - A

34

IR54459508

BELT GUARD front

35

IR54459516

BELT GUARD back

36

IR97173595

SCREW

37

IR56280159

SCREW

38

IR54640032

BRACE beltguard

39

IR49812332

TUBELINE

40

IR49812324

TUBELINE

41

IR97175343

PAD insolator

42

IR97175350

SCREW filtered

43

IR32175564

SCREW

44

IR39128541

NUT

45

IR54657218

NUT

46

IR22138085CD

OM, BA5.5 W AIR COMPRESSOR CD
