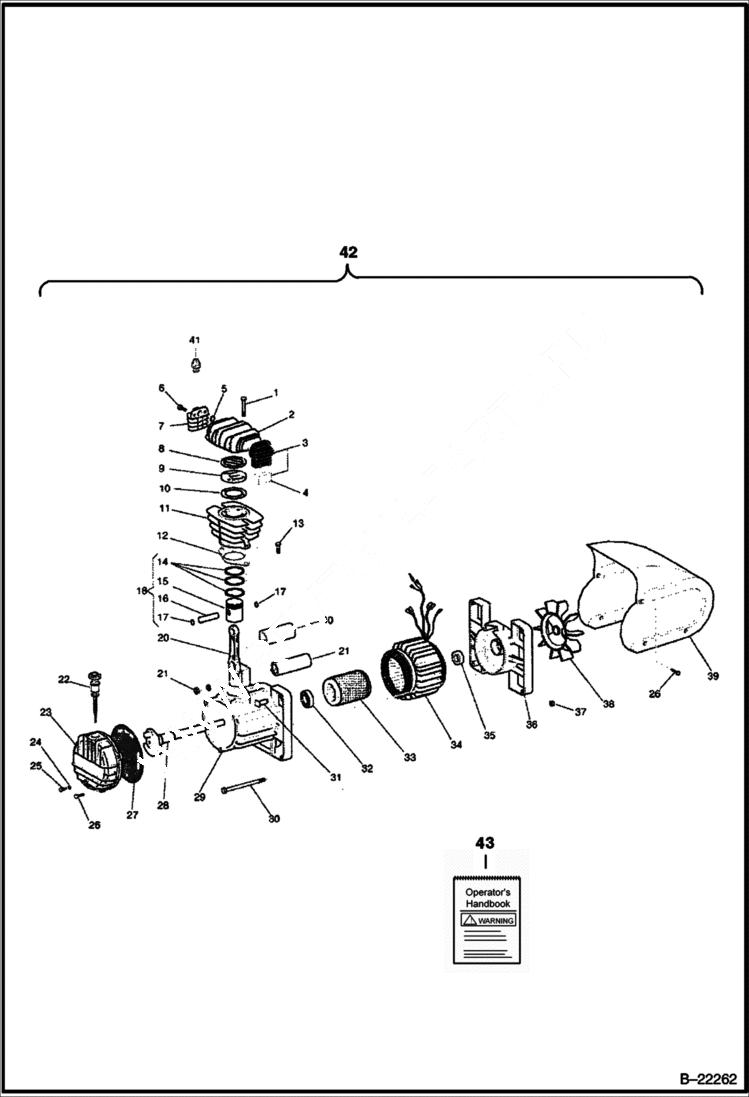

Запчасти Bobcat AIR COMPRESSOR MAIN FRAME (Compressor Pump) MAIN FRAME

1

IR32336943

SCREW

2

IR32336968

HEAD

3

IR32336901

FILTER

4

IR32337313

ELEMENT

5

IR32337016

O-RING

6

IR32337008

SCREW

7

IR32336950

MANIFOLD

8

IR32336984

SEAL head

9

IR32336992

VALVE PLATE

10

IR32337024

SEAL

11

IR32337040

CYLINDER

12

IR32337800

SEAL casing

13

IR32337032

SCREW

14

IR32337693

RING SET

15

IR32337065

PISTON

16

IR32337073

PIN

17

IR32337081

RING retainer

18

IR32337099

PISTON complete

20

IR32337107

ROD connecting

21

IR32337123

CONDENSER

22

IR32337164

DIPSTICK

23

IR32337172

COVER

24

IR32337305

O-RING

25

IR32337180

SCREW

26

IR32337198

SCREW

27

IR32337156

SEAL casing

28

IR32337149

CRANKSHAFT

29

IR32337214

CASING

30

IR32337206

SCREW

31

IR32337297

CUTOUT overload

32

IR32337131

BEARING

33

IR32337222

ROTOR

34

IR32337230

WOUND CASING

35

IR32337248

BEARING

36

IR32337255

COVER

37

IR32337263

NUT

38

IR32337271

FAN

39

IR32337289

SHROUD

40

IR32337792

SPACER

41

IR32338170

OVERLOAD cutout protection

42

IR32336935

PUMP complete - Ref. 1-41

43

IR22138093CD

OM, BA2T E AIR COMPRESSOR CD
