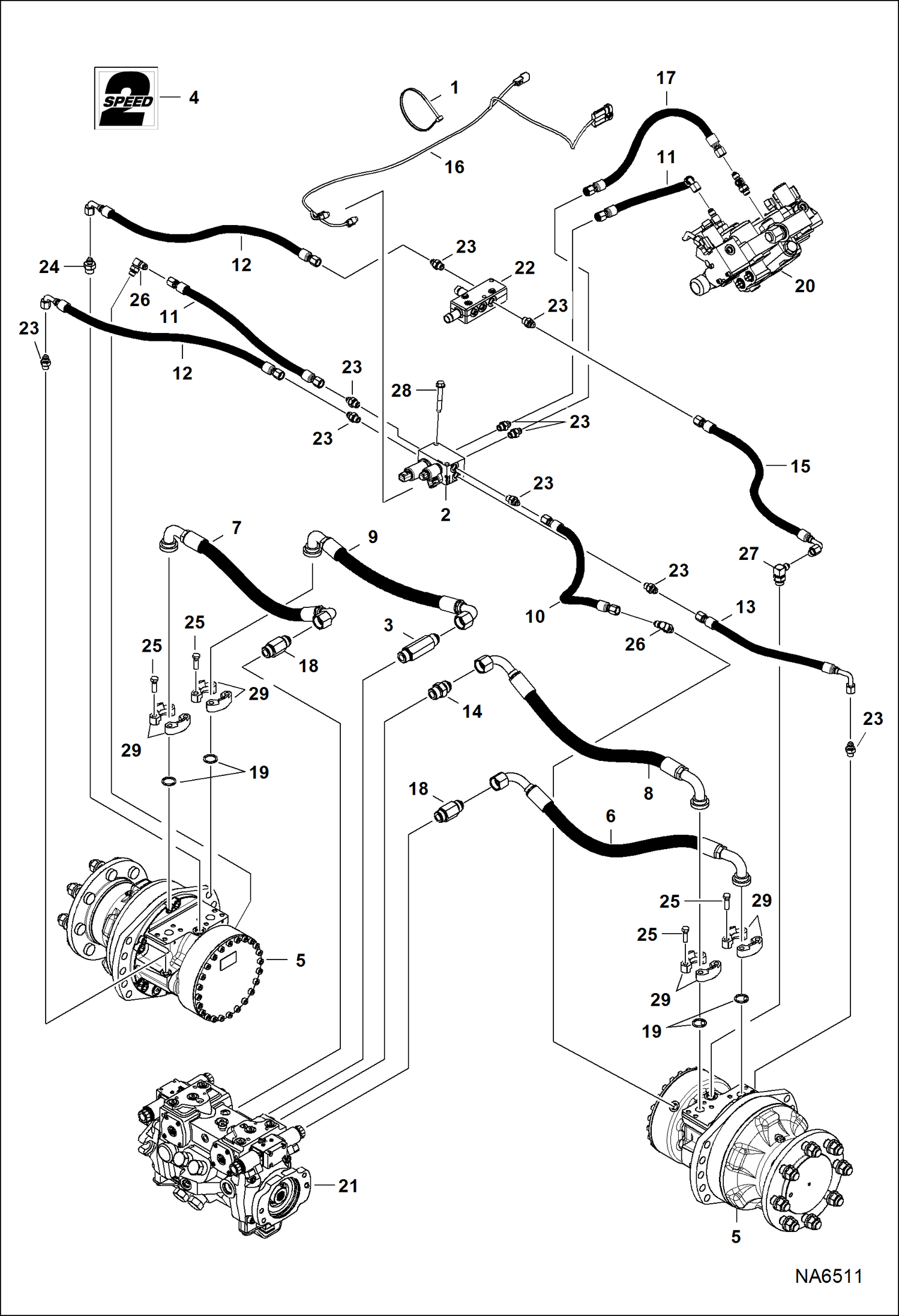

Запчасти Bobcat T-Series HYDROSTATIC CIRCUITRY (2-Speed Motor) (S/N A3PG12800 & Abpve, A3PH12326 & Above) HYDROSTATIC SYSTEM

1

6624289

STRAP, TIE

2

VALVE, 2-SPEED See Illustration 2-SPEED VALVE/ NA6501 NLA - Was 7211449 - A

3

6735511

ADAPTER

4

6729078

DECAL 2-Speed

5

MOTOR, DRIVE HYD 2-SPD See Illustration HYDROSTATIC MOTOR & BRAKE/ NA6498

6

7011184

HOSE, HYD ASSY

7

7011185

HOSE, HYD ASSY

8

7012608

HOSE, HYD

9

7012609

HOSE, HYD

10

7135519

HOSE ASSY

11

7212767

HOSE, HYD

12

7212770

HOSE, HYD

13

7212771

HOSE, HYD

14

15KB1212

FITTING, HYD CONNECTOR

14

79K12

O RING 10

15

7213529

HOSE, HYD

16

7214627

HARNESS, 2-SPD

17

7212768

HOSE, HYD

18

6815223

FITTING

19

55K214

O-RING

20

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2751 - manual controls

20

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2483 AHC, ACS & SJC

21

PUMP, HYD TANDEM See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA2507

22

7201981

MANIFOLD, DRAIN CASE See Illustration HYDROSTATIC CIRCUITRY/ NA2503

23

15KB0606

FITTING, HYD CONNECTOR Was 15KB606 - A

23

79K6

O RING 10

24

15KB608

FITTING, HYD CONNECTOR

24

79K8

O RING 10

25

17C620

BOLT

26

17KB0606

FITTING Was 17KB606 - A

26

27

17KB608

FITTING, HYD ELBOW

27

28

84G3744

BOLT

29

20J12

FLANGE
