Запчасти Bobcat T-Series TRACK TENSIONER DRIVE TRAIN

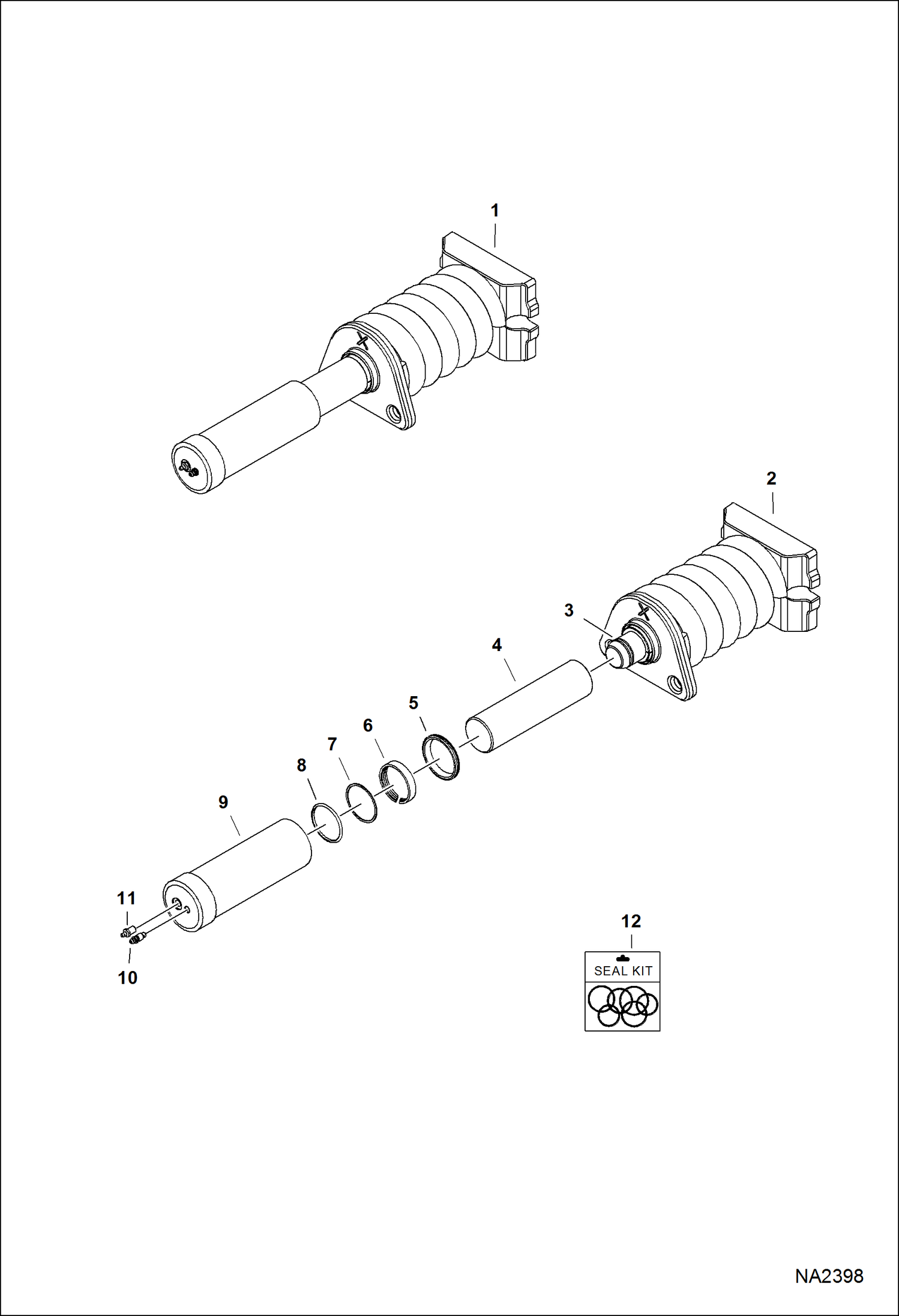

Схема запчастей Bobcat T-Series - TRACK TENSIONER DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

7180678

TENSIONER, TRACK ASSY Ref. 2-12

2

COIL SPRING ASSY NSS - Order Ref. 1

3

25K30118

O RING 10 not in kit

4

7135154

SHAFT, CHROME

5

6686968

SEAL, WIPER ROD

6

6688839

WEAR RING 9,53 mm (0.38'') wide

7

6685154

RING, BACK-UP

8

6672338

O-RING

9

7180325

TUBE, TENSIONER

10

6645812

SCREW, BLEED

11

6655752

FITTING 68,900 kpa (10,000 psi) - DO NOT SUBSTITUTE

12

7163219

KIT, SEAL Ref. 5-8

Выбрано товаров: 12
