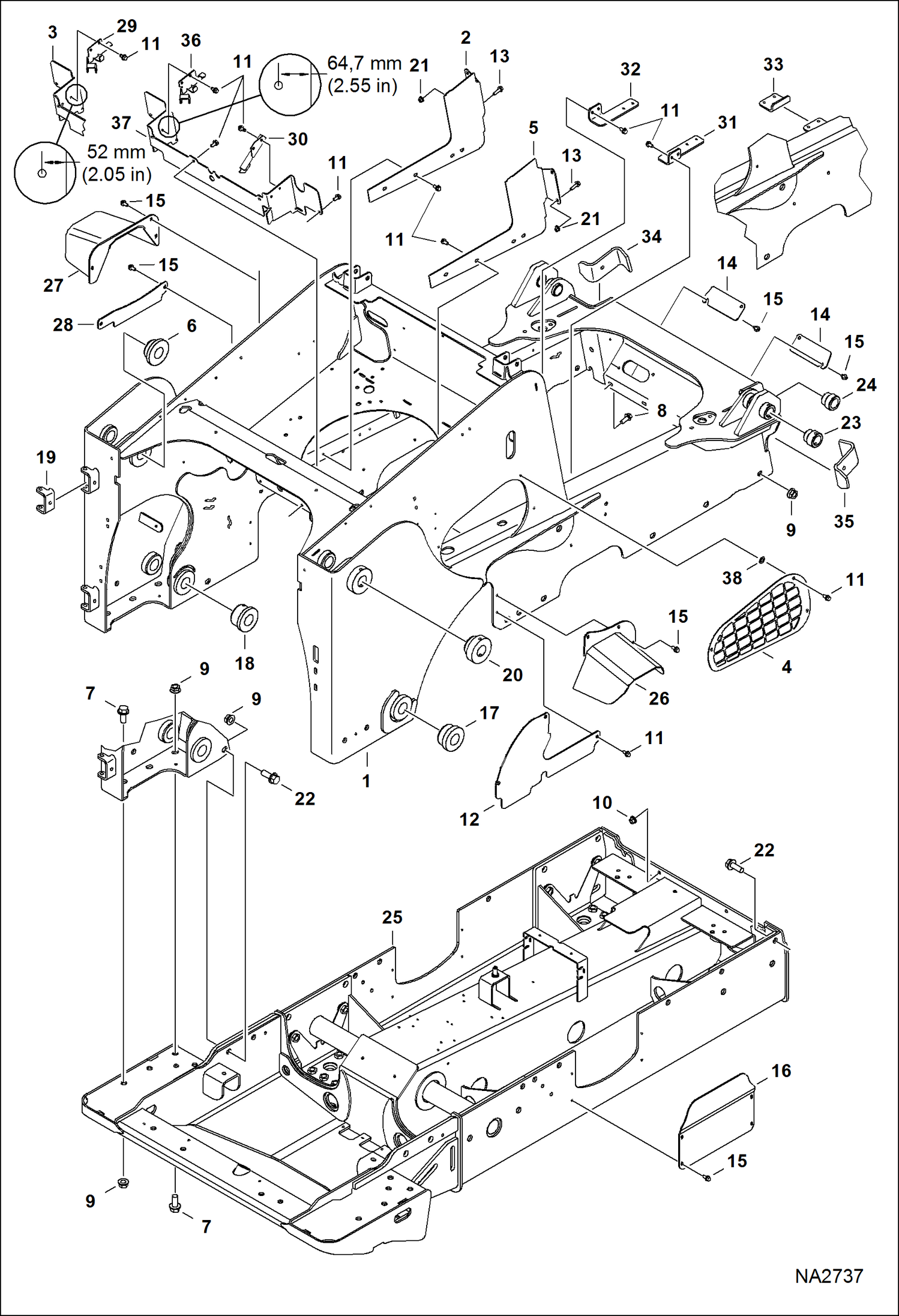

Запчасти Bobcat T-Series MAIN FRAME (S/N A3PG11001 - 11919, A3PH11001 - 11588) MAIN FRAME

1

7145867

FRAME, MAIN ASSY

2

7145821

DUCT, AIR See Illustration COOLING SYSTEM/ NA2599

3

CROSSMEMBER NLA - Use W/Ref. 29 - See dimension on illustration - Order Ref. 36 & 37 - Was 7209535 - A

4

7146169

SCREEN, OUTER

5

7145626

DUCT, AIR See Illustration COOLING SYSTEM/ NA2599

6

7145873

BUSHING, WELD-ON inside upright weld-on

7

31C1228

BOLT

8

31C820

BOLT

9

53D12

NUT

10

83D8

NUT 5

11

84G3712

BOLT 5

12

7178451

COVER, SIDE

13

35C620

BOLT 5

14

7159532

COVER, ACCESS

15

84G3712

BOLT 5

16

7136973

COVER

17

7161112

BUSHING, WELD-ON outside upright

18

7145875

BUSHING, WELD-ON inside upright

19

6708987

HINGE, WELD-ON

20

7145872

BUSHING, WELD-ON outside upright

21

89D6

NUT

22

31C1232

SCREW

23

7160314

BUSHING, WELD-ON

24

7160315

BUSHING, WELD-ON

25

DRIVECASE See Illustration DRIVE TRAIN/ NA2739

26

7140460

SHIELD, W/A RH

27

7140461

SHIELD, W/A LH

28

7140465

COVER, ACCESS

29

GUIDE, HOSE NLA - Use W/Ref. 3 - See dimension on illustration - Order Ref. 36 & 37 - Was 7200553 - A

30

7210851

BRACKET

31

7202799

BRACKET, SUPPORT LH

32

7202800

BRACKET, SUPPORT RH

33

BRACKET, WELD-ON NLA - LH - Order Ref. 31

33

BRACKET, WELD-ON NLA - RH - Order Ref. 32

34

7197247

GUIDE LH - weld-on

35

7197246

GUIDE RH - weld-on

36

7218782

GUIDE, HOSE Use W/Ref. 37 - See dimension on illustration

37

7218781

CROSSMEMBER Use W/Ref. 36 - See dimension on illustration

38

6674264

RETAINER NUT
