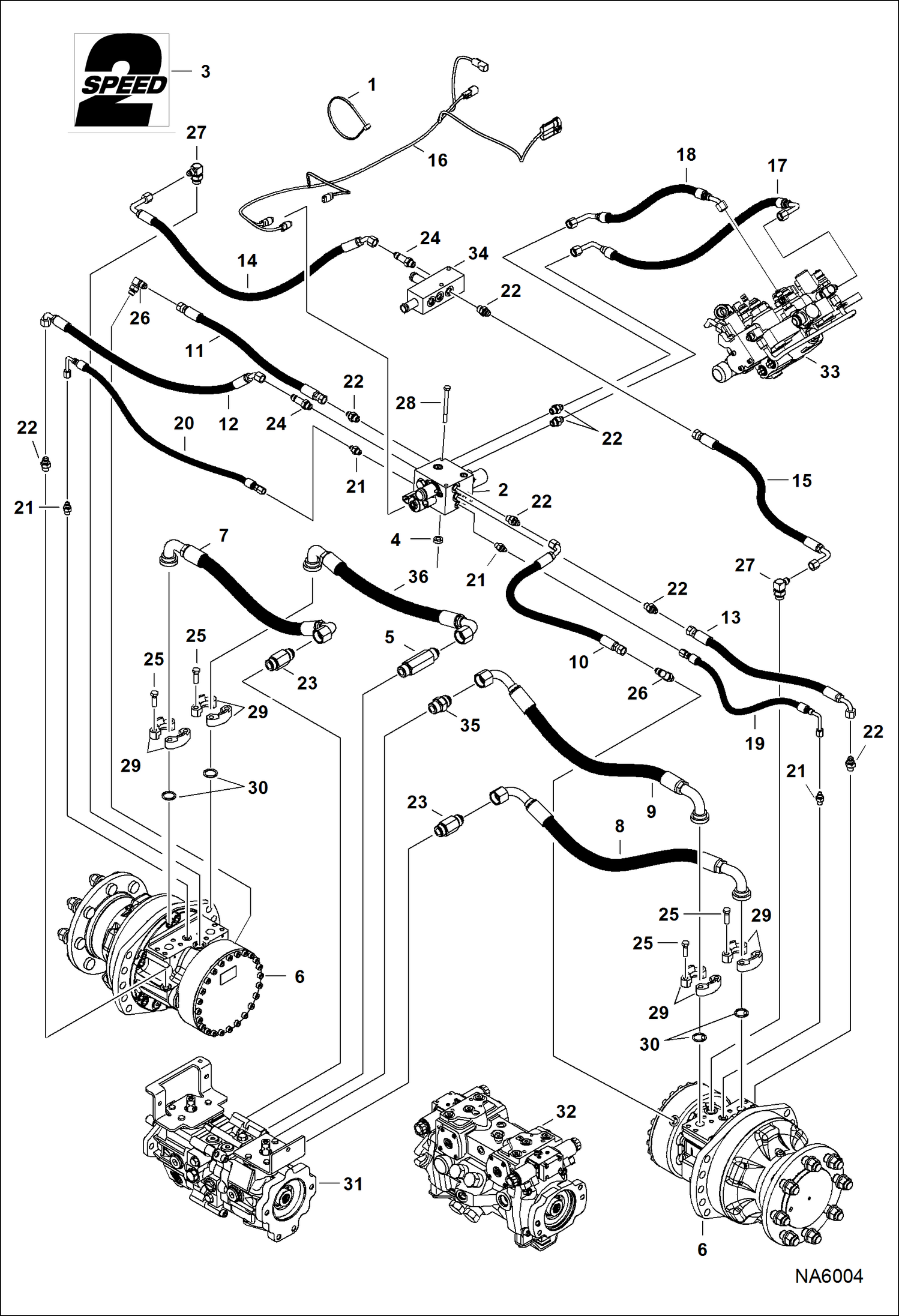

Запчасти Bobcat T-Series HYDROSTATIC CIRCUITRY (2-Speed Motor) (S/N ANKA11001 - 13449) HYDROSTATIC SYSTEM

1

6624289

STRAP, TIE

2

VALVE, 2-SPEED See Illustration 2-SPEED VALVE/ NA2164

3

6729078

DECAL 2-Speed

4

25E16

WSHR

5

6735511

ADAPTER

6

MOTOR, DRIVE See Illustration HYDROSTATIC MOTOR & BRAKE/ NA2870

7

7011081

HOSE, HYD

8

7011082

HOSE, HYD

9

7011084

HOSE, HYD

10

7173008

HOSE, HYD

11

7173009

HOSE, HYD

12

7173010

HOSE, HYD

13

7202343

HOSE, HYD

14

7173012

HOSE, HYD

15

7173013

HOSE, HYD

16

7177692

HARNESS, 2-SPD

17

7195109

HOSE, HYD

18

7195110

HOSE, HYD

19

7196359

HOSE, HYD

20

7196360

HOSE, HYD

21

15KB0404

FTG HYD S Connector

21

79K4

O RING 10

22

15KB0606

FITTING, HYD CONNECTOR

22

79K6

O RING 10

23

6815223

FITTING

23

79K12

O RING 10

24

16KB0606

FTG HYD L CONNECTOR

24

79K6

O RING 10

25

17C620

BOLT

26

17KB0606

FITTING Was 17KB606 - A

26

79K6

O RING 10

27

17KB608

FITTING, HYD ELBOW

27

79K8

O RING 10

28

1C556

SCREW HEX CAP

29

20J12

FLANGE

30

55K214

O-RING

31

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA1309 - manual, ACS & AHC

32

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA1309 - SJC

33

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1216 - manual controls

33

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1217 - AHC, ACS & SJC

34

MANIFOLD See Illustration MANUAL LIFT RELEASE SYSTEM/ NA1219

35

15KB1212

FITTING, HYD CONNECTOR

35

79K12

O RING 10

36

7011083

HOSE, HYD
