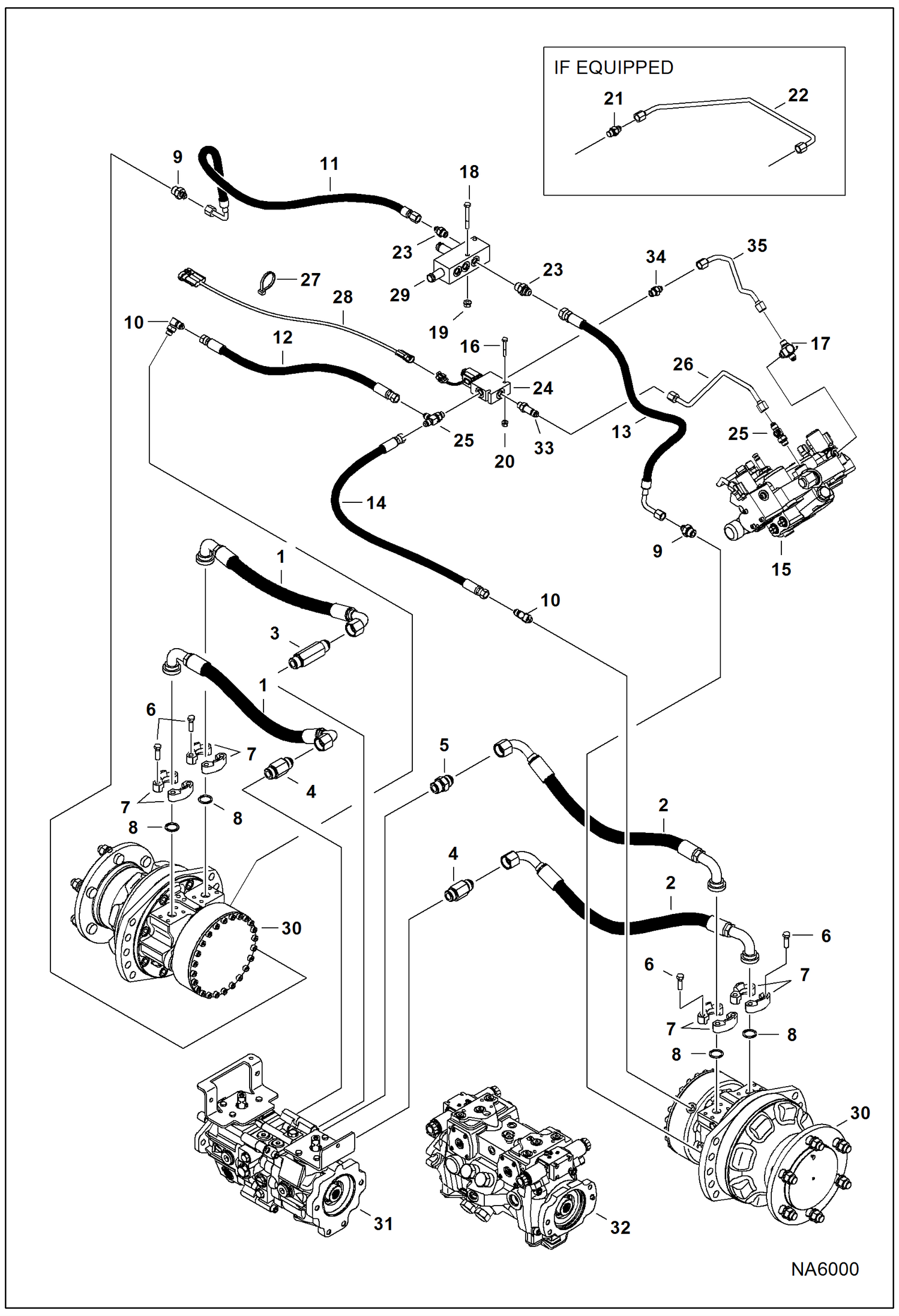

Запчасти Bobcat T-Series HYDROSTATIC CIRCUITRY (Single Speed Motors) (Rubber Tracks) HYDROSTATIC SYSTEM

1

7011081

HOSE, HYD

2

7011082

HOSE, HYD

3

6735511

ADAPTER

4

6815223

FITTING

4

79K12

O RING 10

5

15KB1212

FITTING, HYD CONNECTOR

5

79K12

O RING 10

6

17C620

BOLT

7

20J12

FLANGE

8

55K214

O-RING

9

15KB0608

FITTING, HYD CONNECTOR

9

79K8

O RING 10

10

17KB0606

FITTING

10

79K6

O RING 10

11

7159731

HOSE, HYD

12

7159730

HOSE, HYD

13

7159733

HOSE, HYD

14

7159732

HOSE, HYD

15

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1216 - manual controls

15

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1217 - ACS, AHC & SJC

16

17C428

BOLT

17

7180987

FITTING, CROSS

18

17C540

BOLT

19

83D5

NUT 5

20

83D4

NUT 10

21

6669676

CHECK VALVE 37,3 mm (1.47'') long - Use W/Ref. 22

22

7182087

TUBELINE, HYD Use W/Ref. 21

23

15KB0606

FITTING, HYD CONNECTOR

23

79K6

O RING 10

24

VALVE ASSY See Illustration BRAKE VALVE/ MS1144

25

21KB0606

FTG HYD STRAIGHT TEE

25

79K6

O RING 10

26

7182088

TUBELINE,HYD

27

6624289

STRAP, TIE

28

7165061

HARNESS, ADAPTER BRAKE

29

7201981

MANIFOLD, DRAIN CASE

30

MOTOR, DRIVE HYD See Illustration HYDROSTATIC MOTOR/ NA1304

31

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA1309 - manual controls, AHC, ACS

32

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA1309 - SJC

33

16KB0606

FTG HYD L CONNECTOR

33

79K6

O RING 10

34

15KB0606

FITTING, HYD CONNECTOR 34,8 mm (1.37'') long - Use W/Ref. 35

35

7218908

TUBELINE, HYD Use W/Ref. 34
