Запчасти Bobcat T-Series DRIVE TRAIN (Suspension) (S/N ANKA11001 - 13524) DRIVE TRAIN

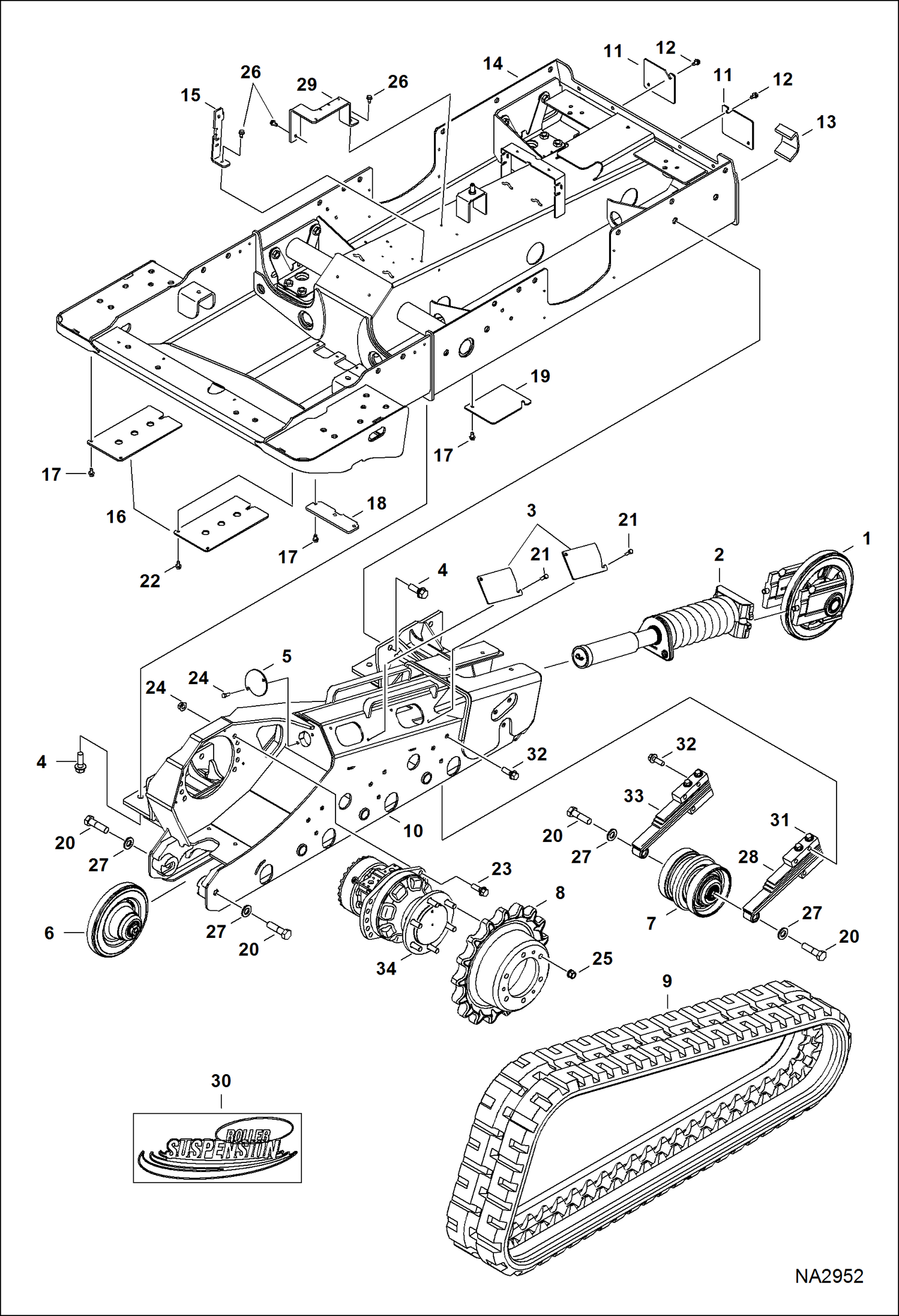

Схема запчастей Bobcat T-Series - DRIVE TRAIN (Suspension) (S/N ANKA11001 - 13524) DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

IDLER, FRONT See Illustration FRONT IDLER/ PE2554

2

TENSIONER, TRACK ASSY See Illustration TRACK TENSIONER/ NA2949

3

7137132

COVER

4

31C1236

BOLT

5

7143346

COVER, ACCESS

6

IDLER REAR See Illustration REAR IDLER/ PE2555

7

ROLLER ASSY See Illustration TRACK ROLLER/ PE2556

8

7165109

SPROCKET, MOTOR DRIVE TRACK single speed - 6 hole

8

7196807

SPROCKET, MOTOR DRIVE TRACK 2-speed - 8 hole

9

TRACK, RUBBER See Illustration TRACKS/ NA6162

10

7154208

FRAME, TRACK RH

10

7154209

FRAME, TRACK LH

11

6737088

COVER, ACCESS irregular shape - 146 x 127 mm (5.75 x 5'')

11

7240780

COVER, ACCESS 159 x 127 mm (6.25 x 5'') - Was 6716010 - A

12

84G3720

BOLT

13

7134445

BRACKET, TIE-DOWN weld-on

14

7139798

DRIVECASE

15

7151466

BRACKET

16

7145347

COVER

17

84G3712

BOLT 5

18

7159094

COVER, DRAIN

19

7158703

COVER, ACCESS

20

7143955

BOLT

21

17C616

BOLT 5

22

35C612

BOLT

23

31C1032

BOLT

24

53D10

NUT

25

6674724

NUT single speed motor

25

7020903

NUT 2-speed motor

26

84G3716

SCREW 5

27

28E14

WASHER

28

7131652

SPRING, SUSPENSION RH

29

7181085

BRACKET

30

7146178

DECAL roller suspension

31

7141349

BOLT

32

7139763

SCREW

33

7131653

SPRING, SUSPENSION LH

34

MOTOR, DRIVE HYD See Illustration HYDROSTATIC MOTOR/ NA1304 single speed

34

7010257

MOTOR, DRIVE HYD 2-SPD See Illustration HYDROSTATIC MOTOR & BRAKE/ NA2870
