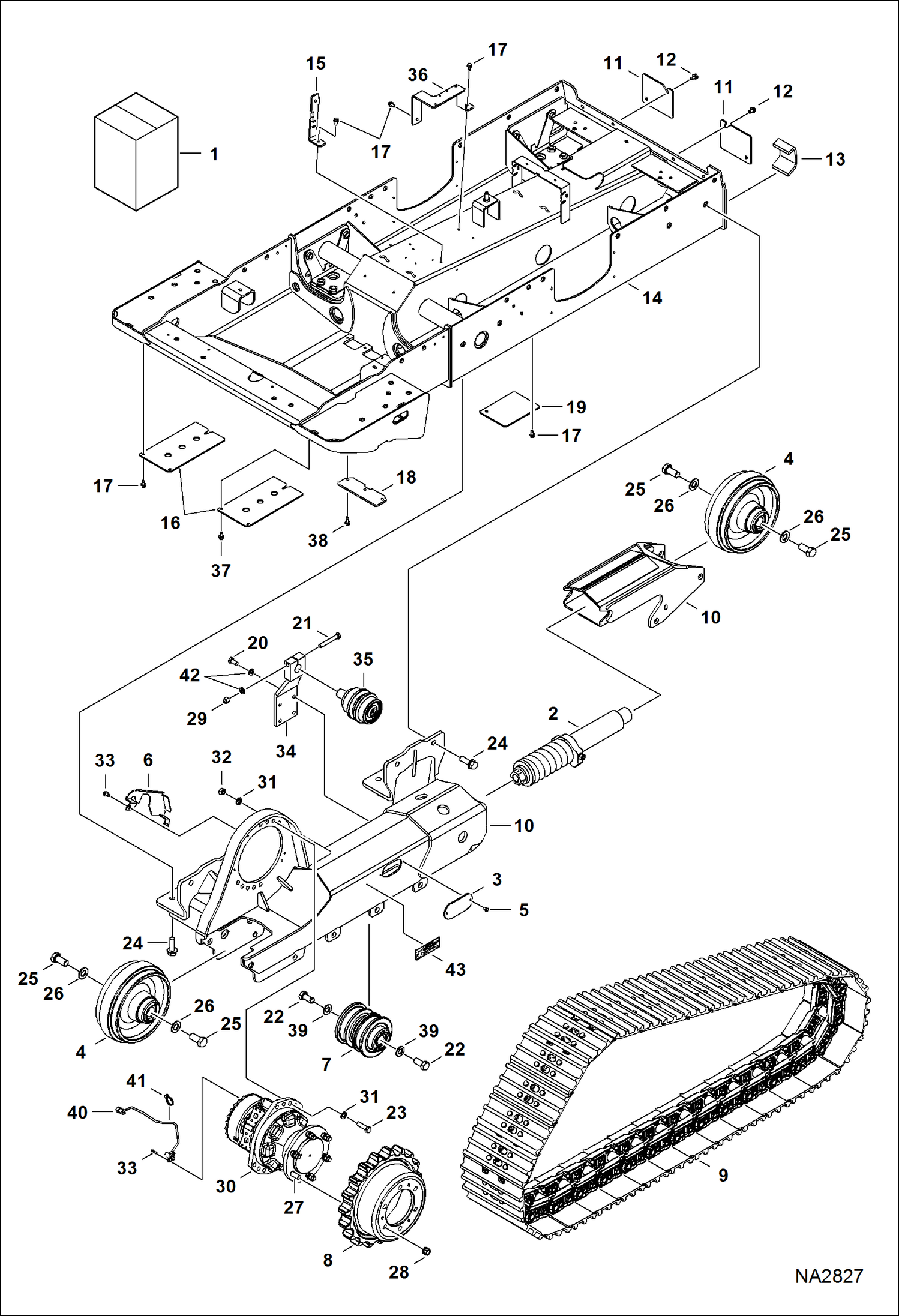

Запчасти Bobcat T-Series DRIVE TRAIN (Solid Mount) (Steel Track) DRIVE TRAIN

1

7183185

FRAME, TRACK

1

7183186

FRAME, TRACK

2

7020400

TENSIONER, TRACK ASSY RH

2

7009222

TENSIONER, TRACK ASSY LH

3

7010243

COVER, ACCESS

4

7009219

IDLER, ASSY

5

7010244

SCREW

6

7166712

COVER SJC

7

7011072

ROLLER, TRACK

8

7009231

SPROCKET, MOTOR DRIVE TRACK Was 7020401 - A

9

TRACK, STEEL See Illustration TRACKS/ NA2120

10

7020399

FRAME, TRACK RH

10

7020398

FRAME, TRACK LH

11

6737088

COVER, ACCESS irregular shape - 146 x 127 mm (5.75 x 5'')

11

7240780

COVER, ACCESS 159 x 127 mm (6.25 x 5'') - Was 6716010 - A

12

84G3720

BOLT

13

7134445

BRACKET, TIE-DOWN weld-on

14

7139798

DRIVECASE

15

7156252

MOUNT

16

7145347

COVER

17

84G3712

BOLT 5

18

7159094

COVER, DRAIN

19

7158703

COVER, ACCESS

20

7009227

BOLT

21

7009228

BOLT

22

7010567

BOLT

23

7009233

BOLT

24

31C1236

BOLT

25

7009221

BOLT

26

7009220

WASHER

27

6674706

STUD

28

6691215

NUT

29

MOTOR, DRIVE HYD add link to NA1304 when moving from WIP catalog

29

7009230

NUT

30

7009232

WASHER, LOCK

31

7009234

NUT

32

7102184

SCREW SJC

33

7009225

SUPPORT

34

7009226

ROLLER, UPPER

35

7181085

BRACKET

36

35C612

BOLT

37

84G3716

SCREW 5

38

7010566

WASHER

39

SENSOR, SPEED See BTI419 - NLA - Was 7139902

39

75K5

O-RING

40

6624289

STRAP, TIE

41

7009229

WASHER

42

6804114

DECAL, WARNING
