Запчасти Bobcat T-Series MAIN FRAME (S/N ANKA13525 & Above) MAIN FRAME

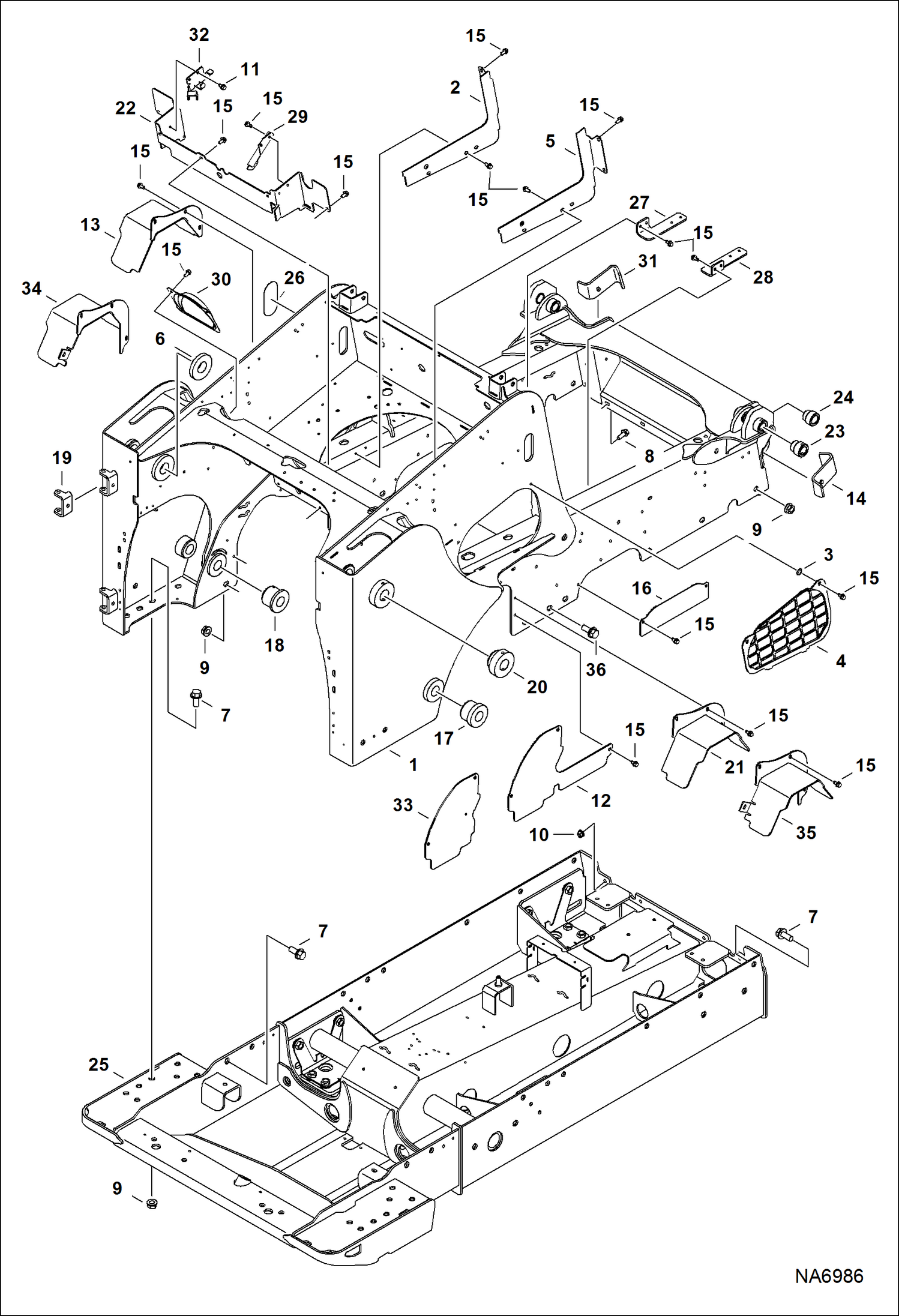

Схема запчастей Bobcat T-Series - MAIN FRAME (S/N ANKA13525 & Above) MAIN FRAME

Артикул

Название

Примечание

Количество

1

7211868

MAIN FRAME

2

7200099

DUCT, AIR LH

3

6674264

RETAINER NUT

4

7186009

LOUVER, PLASTIC RH

4

7186010

LOUVER, PLASTIC LH

5

7200100

DUCT, AIR RH

6

7134831

BUSHING, WELD-ON inside upright

7

31C1228

BOLT

8

31C820

BOLT

9

53D12

NUT

10

83D8

NUT 5

11

84G3708

SCREW

12

7178451

COVER, SIDE

13

7221106

SHIELD, LH 1 speed

14

7155692

GUIDE RH - weld-on

15

84G3712

BOLT 5

16

7210758

COVER, PLATE

17

7141675

BUSHING, WELD-ON outside upright

18

7211897

BUSHING, WELD-ON inside upright

19

6708987

HINGE, WELD-ON

20

7134830

BUSHING, WELD-ON outside upright

21

7221105

SHIELD, RH 1 speed

22

7218781

CROSSMEMBER

23

7162141

BUSHING, WELD-ON

24

6717278

BUSHING, WELD-ON

25

DRIVECASE See Illustration DRIVE TRAIN/ NA6985 See Illustration DRIVE TRAIN/ NA6984

26

7194975

GAUGE, SIGHT self adhesive

27

7202799

BRACKET, SUPPORT LH

28

7202800

BRACKET, SUPPORT RH

29

7210851

BRACKET

30

7215602

COVER, FILTER PARTICULATE

31

7155693

GUIDE LH - weld-on

32

7218782

GUIDE, HOSE

33

7227083

COVER, SIDE 2 speed

34

7227044

SHIELD, LH 2 speed

35

7227043

SHIELD, RH 2 speed

36

31C1236

BOLT

Выбрано товаров: 37
