Запчасти Bobcat T-Series MAIN FRAME (S/N ANKA11001 - 12311) MAIN FRAME

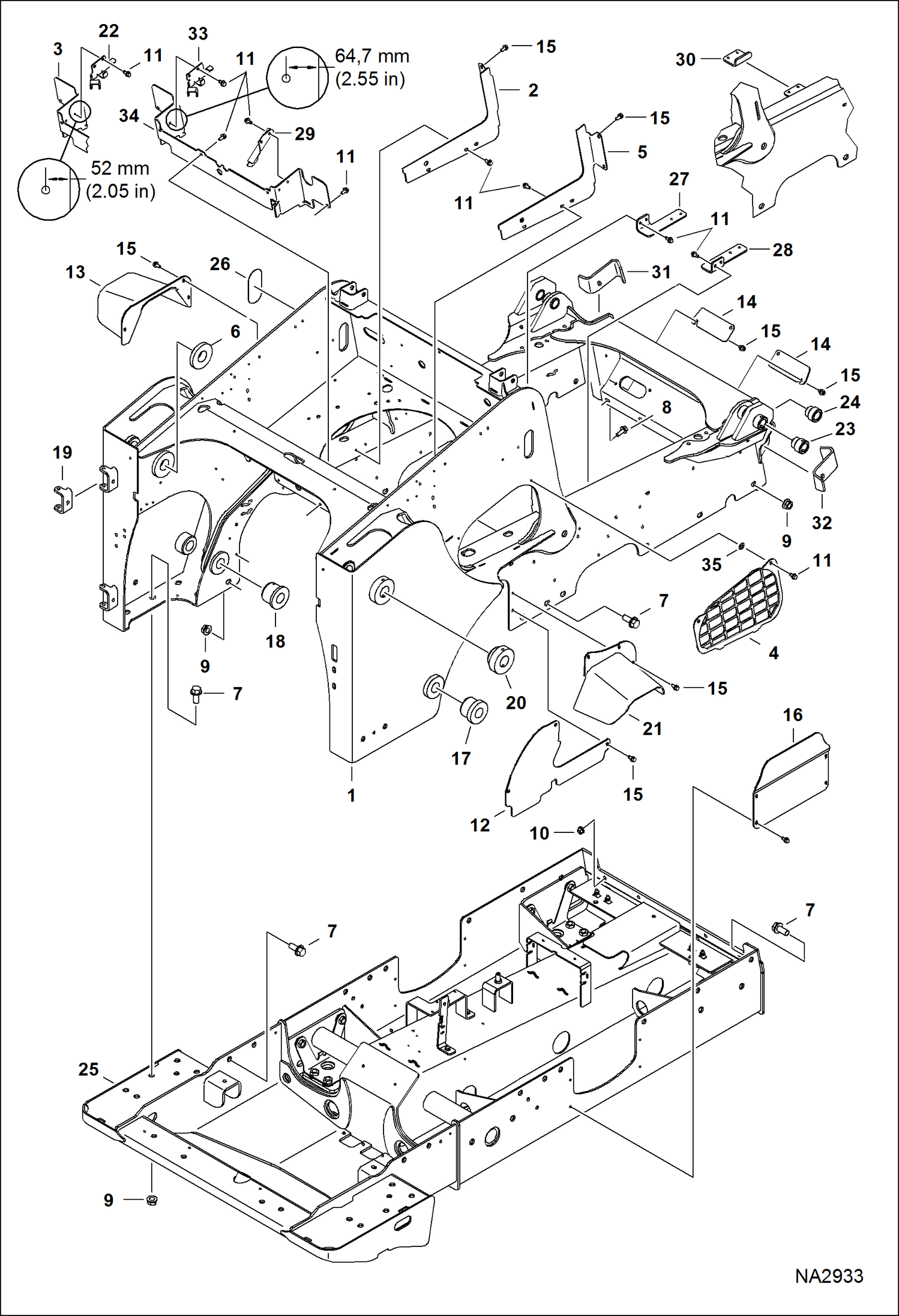

Схема запчастей Bobcat T-Series - MAIN FRAME (S/N ANKA11001 - 12311) MAIN FRAME

Артикул

Название

Примечание

Количество

1

7146294

MAIN FRAME

2

7200099

DUCT, AIR See Illustration COOLING SYSTEM/ NA2599 - LH - Was 7147264 - D

3

CROSSMEMBER NLA - Use W/Ref. 22 - See dimension on illustration - Order Ref. 33 & 34 - Was 7209535 - A

4

7186009

LOUVER, PLASTIC RH

4

7186010

LOUVER, PLASTIC LH

5

7200100

DUCT, AIR See Illustration COOLING SYSTEM/ NA2599 - RH - Was 7173128 - D

6

7134831

BUSHING, WELD-ON inside upright

7

31C1228

BOLT

8

31C820

BOLT

9

53D12

NUT

10

83D8

NUT 5

11

84G3712

BOLT 5

12

7178451

COVER, SIDE

13

7178450

SHIELD, W/A

14

7159532

COVER, ACCESS irregular shape - 182 x 70,1 mm (7.16 x 2.76'')

14

7240780

COVER, ACCESS 159 x 127 mm (6.25 x 5'') - Was 6716010 - A

15

84G3712

BOLT 5

16

7136973

COVER

17

7141675

BUSHING, WELD-ON outside upright

18

7141674

BUSHING, WELD-ON inside upright

19

6708987

HINGE, WELD-ON

20

7145872

BUSHING, WELD-ON outside upright

21

7178842

SHIELD, W/A

22

GUIDE, HOSE NLA - Use W/Ref. 3 - See dimension on illustration - Order Ref. 33 & 34 - Was 7200553 - A

23

7162141

BUSHING, WELD-ON

24

6717278

BUSHING, WELD-ON

25

DRIVECASE

26

7194975

GAUGE, SIGHT self adhesive

27

7202799

BRACKET, SUPPORT LH

28

7202800

BRACKET, SUPPORT RH

29

7210851

BRACKET

30

BRACKET, WELD-ON NLA - LH - Order Ref. 27

30

BRACKET, WELD-ON NLA - RH - Order Ref. 28

31

7155693

GUIDE LH - weld-on

32

7155692

GUIDE RH - weld-on

33

7218782

GUIDE, HOSE Use W/Ref. 34 - See dimension on illustration

34

7218781

CROSSMEMBER Use W/Ref. 33 - See dimension on illustration

35

6674264

RETAINER NUT
