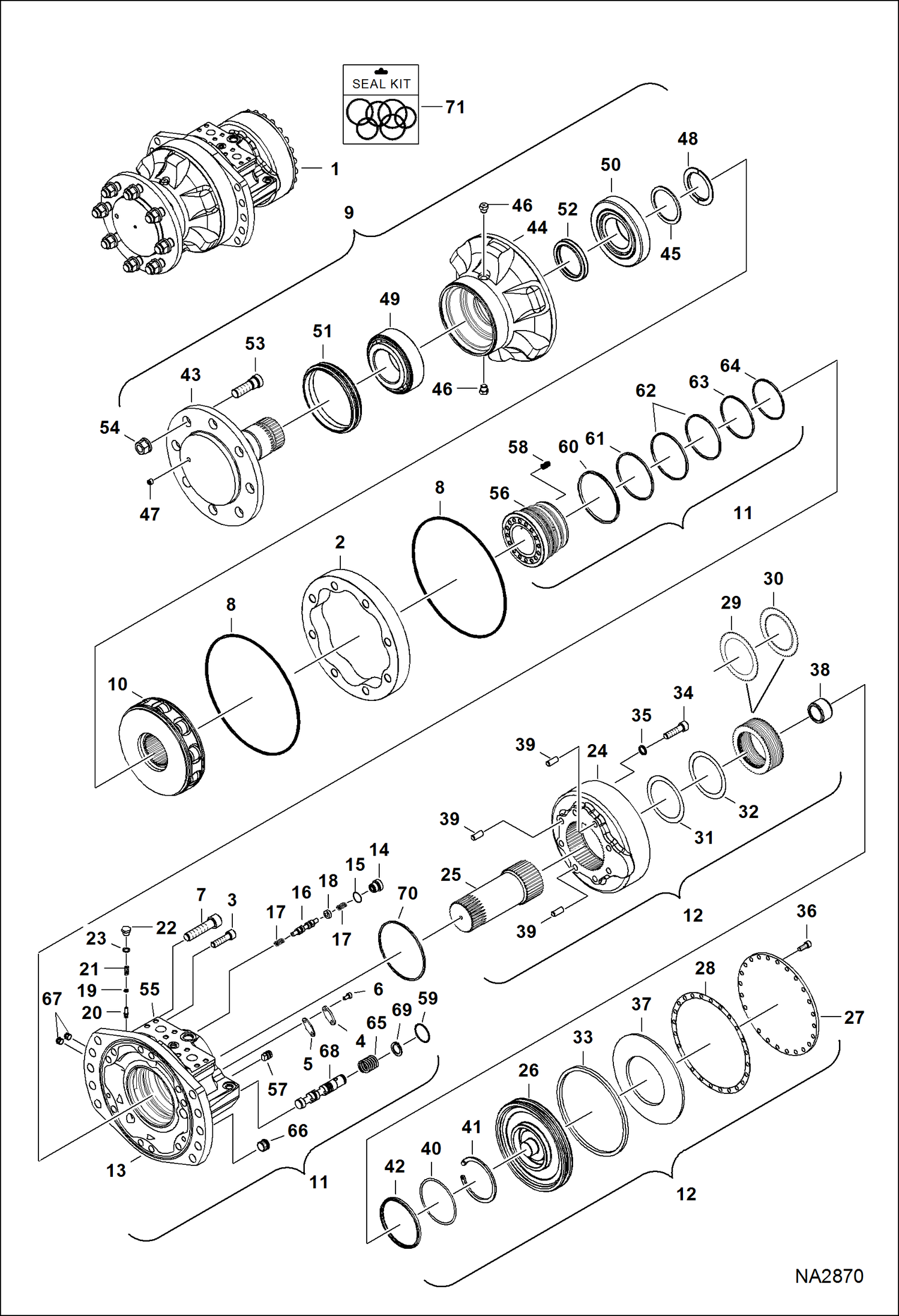

Запчасти Bobcat T-Series HYDROSTATIC MOTOR & BRAKE (2-Speed) (S/N A7PU11001 - 13049) HYDROSTATIC SYSTEM

1

7010257

MOTOR, DRIVE HYD 2-SPD Model R921810899 - Ref. 2-70

2

7020889

CAM

3

7020890

BOLT

4

6688716

COVER

5

6688717

GASKET

6

7020891

BOLT

7

7020892

BOLT

8

6691216

SEAL

9

7020893

CASE, FRONT ASSY Ref. 44-54

10

7024971

ROTOR, ASSY Was 7020894 - A

11

7020895

HOUSING, ASSY Ref. 56-70

12

7020896

BRAKE, ASSY Ref. 24-42

13

7020897

HOUSING

14

6691227

PLUG

15

6689133

O-RING

16

6690041

SPOOL

17

6674841

SPRING Was 6690042 - D

18

6675867

WASHER Was 6690043 - D

19

6674343

SHIM Was 6690044 - D

20

6690045

ORIFICE

21

6674344

SPRING Was 6690046 - D

22

6674345

PLUG Was 6690047 - D

23

6676038

O-RING Was 6689132 - D

24

7020898

HOUSING

25

7020899

SHAFT

26

6681638

PISTON Was 6691230 - A

27

6691098

COVER Was 6691231 - A

28

6674720

GASKET, MOTOR HYD Was 6691232

29

6674713

DISC inner

30

6674714

DISC outer

31

6674722

SHIM Was 6691235 - A

32

6691236

SHIM

33

6674728

SEAL Was 6691237 - A

34

6691238

BOLT

35

6674708

WASHER Was 6691239 - A

36

6689128

BOLT Was 6691240 - A

37

6678780

WASHER Was 6691241 - A

38

6674734

BUSHING Was 6691243 - A

39

6691244

PIN

40

6691245

O-RING

41

6691246

SNAP RING W/O pin holes

42

6691247

SEAL

43

6674054

SHAFT Was 7020900 - A

44

7020901

HOUSING

45

6691208

WASHER, KIT

46

7008700

PLUG

47

6691209

PLUG

48

6691210

RING

49

6689117

BEARING

50

6689118

BEARING

51

6691211

SEAL

52

6691212

SEAL

53

7020902

STUD

54

7020903

NUT

55

7020904

ROLLER

56

7020905

DISTRIBUTOR

57

6691220

PIN

58

6691221

SPRING

59

7020906

SEAL Was 7020706 - B,D

60

7020907

SEAL

61

7020908

SEAL

62

7020909

SEAL

63

7020910

SEAL

64

7020911

SEAL

65

7020912

SPRING

66

6689129

PLUG

67

7020913

PLUG

68

7020914

SPOOL

69

7020915

CLIP

70

7020916

SEAL

71

7024970

KIT, SEAL Ref. 8, 15, 23, 28, 33, 40, 51, 52, 59-64 & 70
