Запчасти Bobcat T-Series HYDROSTATIC MOTOR (Single Speed) HYDROSTATIC SYSTEM

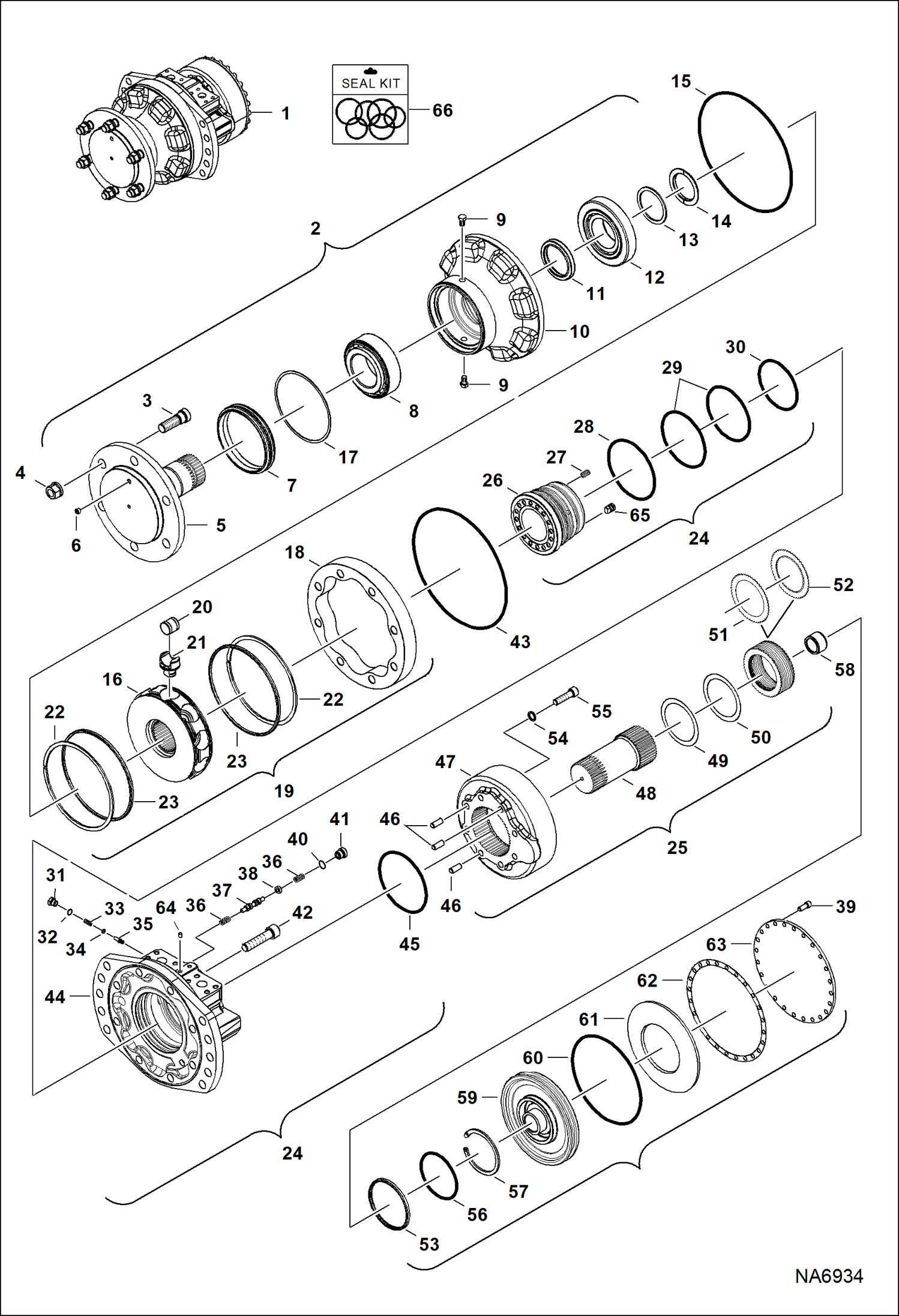

Схема запчастей Bobcat T-Series - HYDROSTATIC MOTOR (Single Speed) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

7223481

MOTOR, DRIVE HYD Model R921811356 - Ref. 2-64

2

7026578

CASE, FRONT ASSY

3

6691214

STUD

4

6674724

NUT

5

SHAFT NLA - Order Ref. 1

6

6680019

PLUG

7

6691211

SEAL

8

6689117

BEARING

9

7008700

PLUG magnetic

10

7008042

CASE, FRONT

11

7026581

SEAL, SHAFT

12

6660018

BEARING, MOTOR DRIVE shaft

13

6691208

WASHER, KIT bearing - contains 13 washers from .077'' to .12''

14

6660016

RING, SPLIT

15

7026582

O-RING

16

7026583

GROUP, ROTARY NSS - Order Ref. 19

17

6689121

O-RING

18

7009545

CAM

19

7026579

GROUP, ROTATING

20

6690022

ROLLER

21

6689126

PISTON

22

7021782

RING, SNAP

23

7024973

RING, RETAINING

24

7026580

CASE, REAR ASSY

25

6691260

BRAKE ASSY

26

6676909

DISTRIBUTOR

27

6691221

SPRING

28

6660034

SEAL

29

6676910

SEAL

30

6660037

SEAL

31

6674345

PLUG

32

6676038

O-RING

33

6674344

SPRING

34

6674343

SHIM

35

6691226

RELIEF VALVE

36

6674841

SPRING

37

6690041

SPOOL

38

6675867

WASHER

39

6689128

BOLT

40

6689133

O-RING

41

6691227

PLUG

42

6691217

SCREW

43

7026582

O-RING

44

7026584

CASE, REAR

45

7020916

SEAL

46

6691244

PIN

47

6691228

HOUSING

48

6681622

SHAFT

49

6674722

SHIM

50

6691236

SHIM

51

6674714

DISC

52

6674713

DISC

53

6691247

SEAL

54

6674708

WASHER

55

6691238

BOLT

56

6691245

O-RING

57

6691246

SNAP RING W/O pin holes

58

6674734

BUSHING

59

6681638

PISTON

60

7026585

RING, SEAL

61

6678780

WASHER

62

6674720

GASKET, MOTOR HYD

63

6691098

COVER

64

PLUG NLA

65

6660032

PIN

66

6691249

KIT, SEAL Ref. 7, 11, 15, 28-30, 32, 40, 43, 45, 56, 60 & 62

Выбрано товаров: 66
