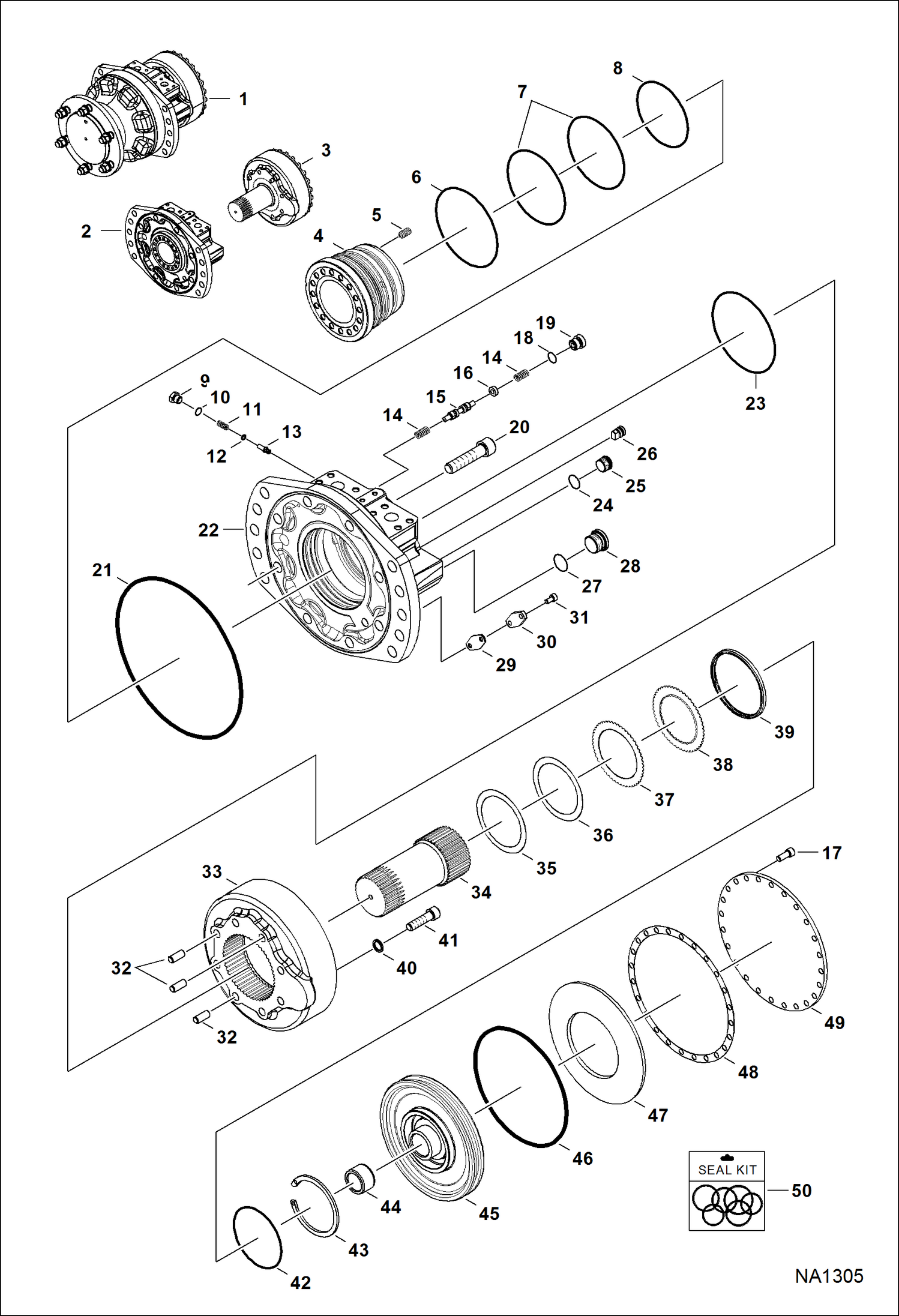

Запчасти Bobcat T-Series HYDROSTATIC MOTOR (Single Speed) HYDROSTATIC SYSTEM

1

MOTOR, DRIVE HYD See BTI419 - Model R921810767 - Was 6698328 - A

2

6691259

REAR CASE ASSY

3

6691260

BRAKE ASSY

4

6676909

DISTRIBUTOR Was 6691219 - D

5

6691221

SPRING

6

6660034

SEAL Was 6691222 - D

7

6676910

SEAL Was 6691248 - D

8

6660037

SEAL Was 6691223

9

6674345

PLUG Was 6690047 - D

10

6676038

O-RING Was 6689132 - D

11

6674344

SPRING Was 6690046 - D

12

6674343

SHIM Was 6690044 - D

13

6691226

RELIEF VALVE

14

6674841

SPRING Was 6690042 - D

15

6690041

SPOOL

16

6675867

WASHER Was 6690043 - D

17

6689128

BOLT Was 6691240 - D

18

6689133

O-RING

19

6691227

PLUG

20

6691217

SCREW

21

6676597

O-RING Was 6691216 - D

22

6691259

REAR CASE ASSY

23

6691224

SEAL

24

O-RING NSS - Order Ref. 25

25

6689129

PLUG

26

6660032

PIN Was 6691220 - D

27

O-RING NSS - Order Ref. 28

28

6691225

PLUG

29

6688717

GASKET

30

6688716

COVER

31

6688718

BOLT

32

6691244

PIN

33

6691228

HOUSING

34

6681622

SHAFT Was 6691229 - A

35

6674722

SHIM Was 6691235 - A

36

6691236

SHIM

37

6674714

DISC Was 6691233 - A

38

6674713

DISC Was 6691234 - A

39

6691247

SEAL

40

6674708

WASHER Was 6691239 - D

41

6691238

BOLT

42

6691245

O-RING

43

6691246

SNAP RING W/O pin holes

44

6674734

BUSHING Was 6691243 - D

45

6681638

PISTON Was 6691230 - A

46

6674728

SEAL Was 6691237 - A

47

6678780

WASHER Was 6691241 - D

48

6674720

GASKET, MOTOR HYD Was 6691232 - D

49

6691098

COVER Was 6691231 - D

50

6691249

KIT, SEAL See Illustration HYDROSTATIC MOTOR/ NA1304 Ref. 7, 11 & 15 - Also includes Ref. 6-8, 21, 23, 29, 39, 42, 46 & 48 on this page
