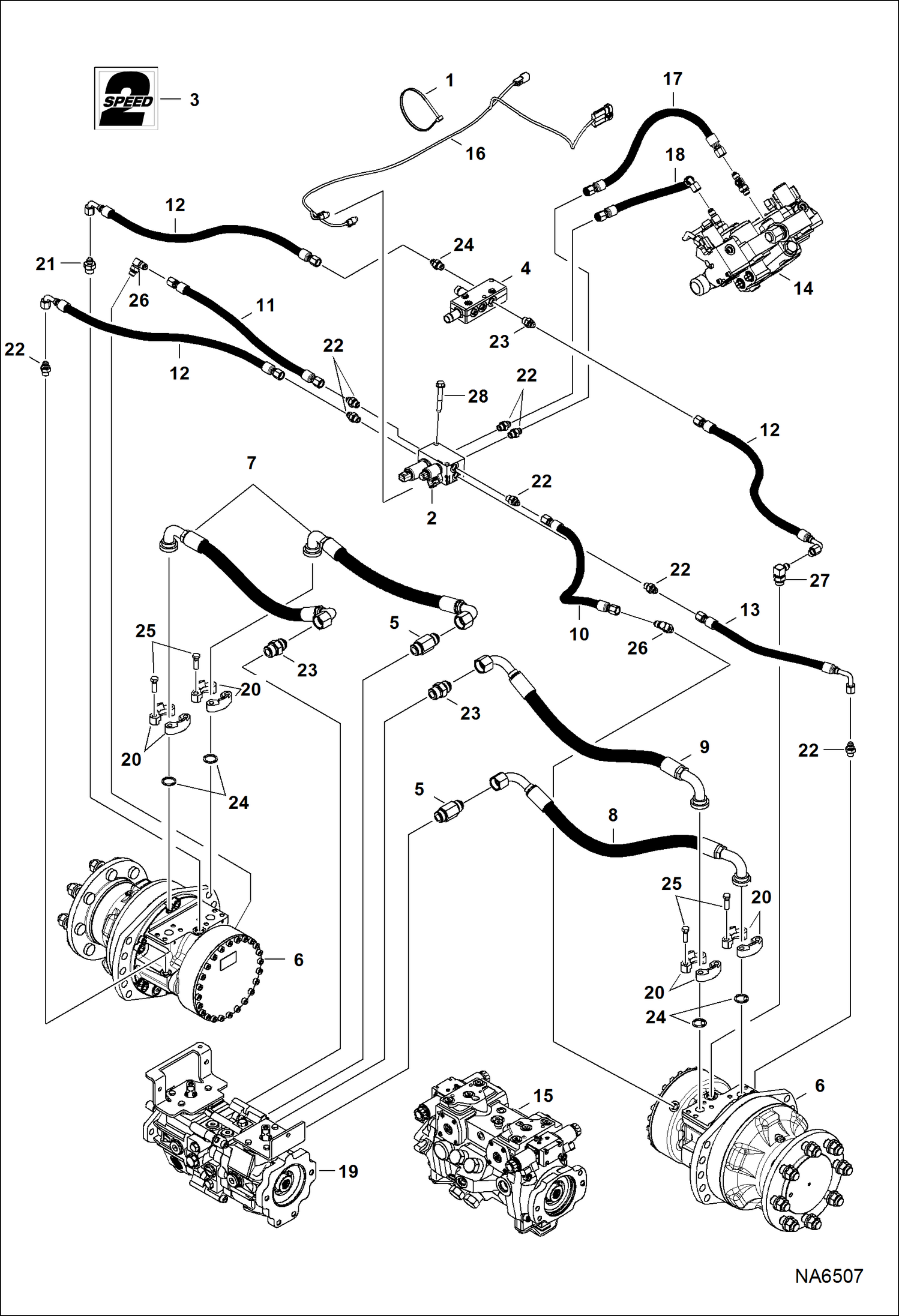

Запчасти Bobcat T-Series HYDROSTATIC CIRCUITRY (2-Speed Motor) (S/N A7PU13050 & Above) HYDROSTATIC SYSTEM

1

6624289

STRAP, TIE

2

VALVE, 2-SPEED See Illustration 2-SPEED VALVE/ NA6501 NLA - Was 7211449 - A

3

6729078

DECAL 2-Speed

4

7201981

MANIFOLD, DRAIN CASE See Illustration HYDROSTATIC CIRCUITRY/ NA1225

5

6815223

FITTING

6

MOTOR, DRIVE HYD 2-SPD See Illustration HYDROSTATIC MOTOR & BRAKE/ NA6498

7

7011081

HOSE, HYD

8

7011082

HOSE, HYD

9

7011084

HOSE, HYD

10

7179099

HOSE, HYD ASSY

11

7125723

HOSE

12

7235457

HOSE, HYD Was 6727045 - A

13

7212792

HOSE, HYD

14

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1216 - manual controls

14

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1217 - AHC, ACS & SJC

15

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA1309 - SJC

16

7214626

HARNESS, 2-SPD

17

7212793

HOSE, HYD

18

7201263

HOSE, HYD Was 7126166 - B

19

7001896

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA1309 - manual controls, AHC & ACS

20

20J12

FLANGE

21

15KB608

FITTING, HYD CONNECTOR

21

79K8

O RING 10

22

15KB0606

FITTING, HYD CONNECTOR Was 15KB606 - A

22

79K6

O RING 10

23

15KB1212

FITTING, HYD CONNECTOR

23

79K12

O RING 10

24

16KB606

FITTING, HYD ELBOW

24

55K214

O-RING

25

17C620

BOLT

26

17KB0606

FITTING Was 17KB606 - A

26

79K6

O RING 10

27

17KB608

FITTING, HYD ELBOW

27

79K8

O RING 10

28

84G3744

BOLT
