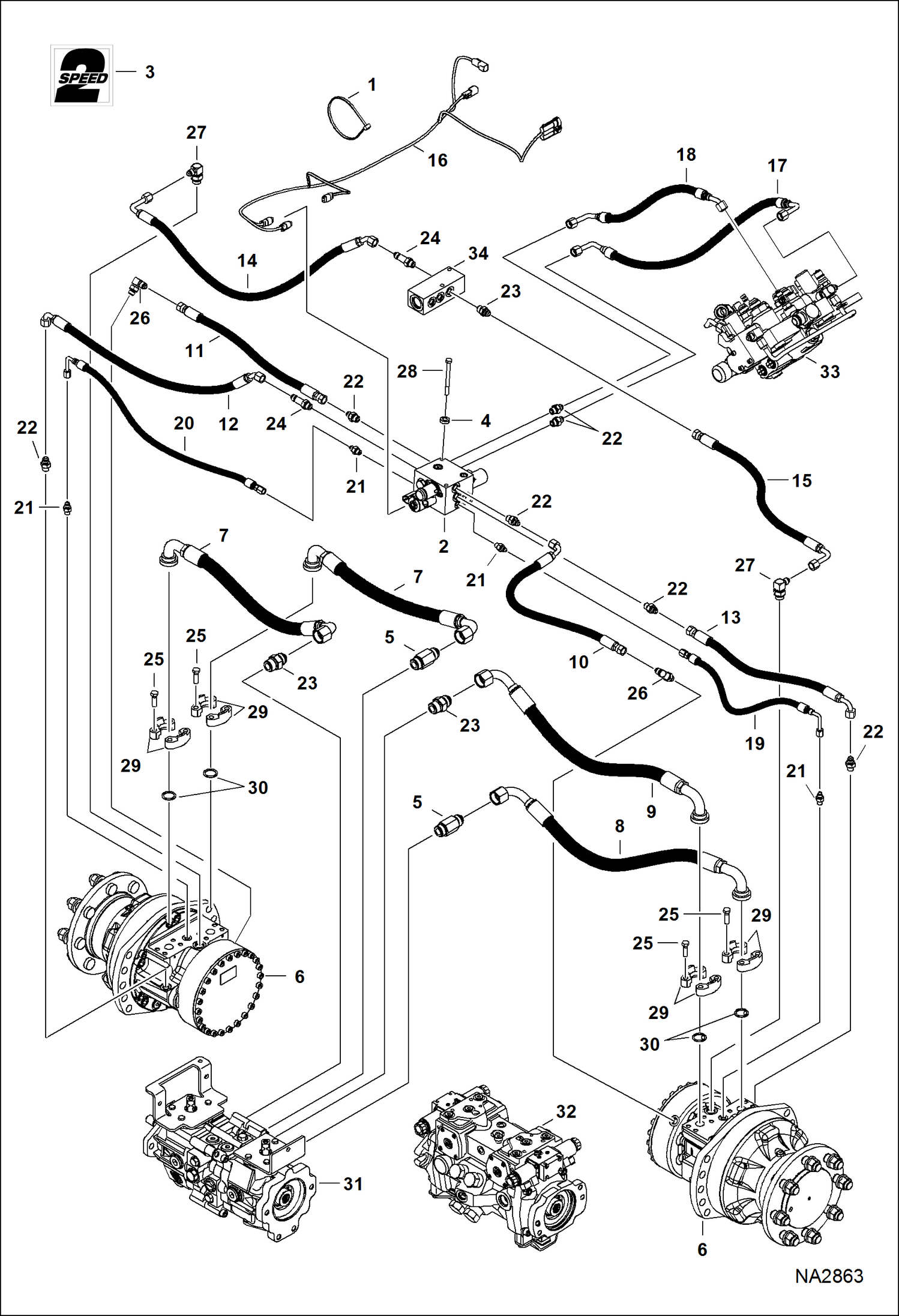

Запчасти Bobcat T-Series HYDROSTATIC CIRCUITRY (2-Speed Motor) (S/N A7PU11001 - 13049) HYDROSTATIC SYSTEM

1

6624289

STRAP, TIE

2

VALVE, 2-SPEED See Illustration 2-SPEED VALVE/ NA2164

3

6729078

DECAL 2-Speed

4

6734043

SPACER

5

6815223

FITTING

6

MOTOR, DRIVE See Illustration HYDROSTATIC MOTOR & BRAKE/ NA2870

7

7011081

HOSE, HYD

8

7011082

HOSE, HYD

9

7011084

HOSE, HYD

10

7173008

HOSE, HYD

11

7173009

HOSE, HYD

12

7173010

HOSE, HYD

13

7202343

HOSE, HYD Was 7173011 - C

14

7173012

HOSE, HYD

15

7173013

HOSE, HYD

16

7177692

HARNESS, 2-SPD

17

7195109

HOSE, HYD

18

7195110

HOSE, HYD

19

7196359

HOSE, HYD

20

7196360

HOSE, HYD

21

15KB404

FITTING, HYD CONNECTOR

22

15KB0606

FITTING, HYD CONNECTOR Was 15KB606 - A

23

15KB1212

FITTING, HYD CONNECTOR

24

16KB606

FITTING, HYD ELBOW

25

17C620

BOLT

26

17KB0606

FITTING Was 17KB606 - A

27

17KB608

FITTING, HYD ELBOW

28

1C556

SCREW HEX CAP

29

20J12

FLANGE

30

55K214

O-RING

31

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA1309

32

PUMP, HYD See Illustration HYDROSTATIC PUMP/GEAR PUMP/ NA1309

33

CONTROL VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA1217 See Illustration HYDRAULIC CONTROL VALVE/ NA1216

34

MANIFOLD See Illustration HYDROSTATIC CIRCUITRY/ NA1225
