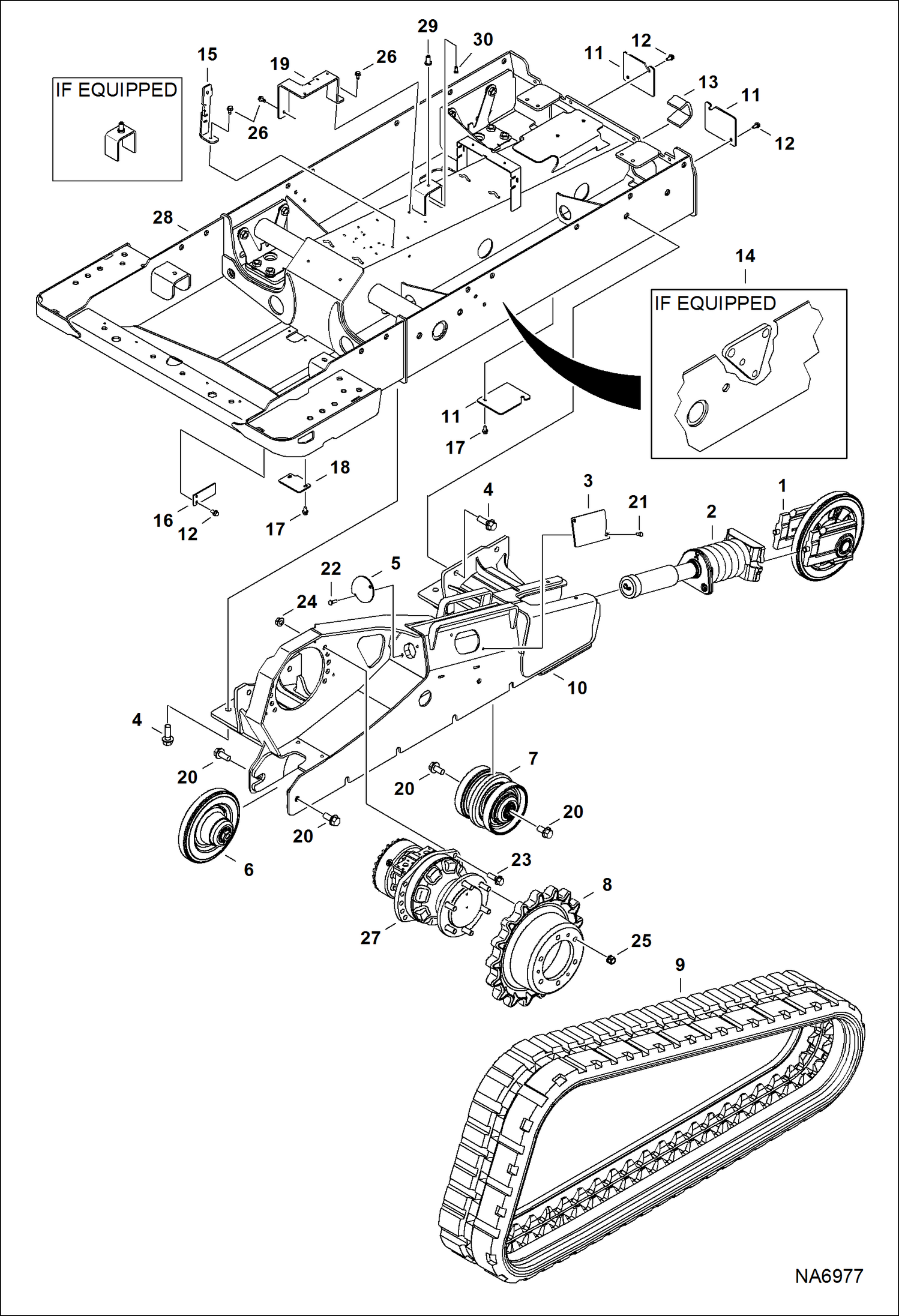

Запчасти Bobcat T-Series DRIVE TRAIN (Solid Mount) (S/N A7PU13476-13505 & 13507 & Above) DRIVE TRAIN

1

IDLER, FRONT See Illustration FRONT IDLER/ PE2554

2

TENSIONER, TRACK ASSY See Illustration TRACK TENSIONER/ NA2175

3

7137132

COVER

4

31C1236

BOLT

5

7143346

COVER, ACCESS

6

IDLER, REAR See Illustration REAR IDLER/ PE2555

7

ROLLER, TRACK See Illustration TRACK ROLLER/ PE2556

8

7165109

SPROCKET, MOTOR DRIVE TRACK single speed - 6 hole

8

7196807

SPROCKET, MOTOR DRIVE TRACK 2-speed - 8 hole

9

TRACK, RUBBER See Illustration TRACKS/ NA6161

10

7226841

FRAME, TRACK RH

10

7226842

FRAME, TRACK LH

11

7240780

COVER, ACCESS Was 6716010 - A

12

35C612

BOLT

13

6706485

HOOK weld-on

14

DRIVECASE NLA - W/ .5'' hyd control valve drivecase weld-on spacer plate - Order Ref. 28 W/ 7220859 valve mount & (2) ea of 31C824 bolt & 53D8 nut - Was 7217296

15

7156252

MOUNT

16

7223183

COVER, DRAIN

17

84G3712

BOLT 5

18

7190754

COVER, DRAIN

19

7189341

MOUNT

20

31C1224

BOLT services 31C1228 in this application

21

17C610

BOLT

22

17C616

BOLT 5

23

31C1032

BOLT

24

53D10

NUT

25

6674724

NUT single speed motor

25

7020903

NUT 2-speed motor

26

84G3716

SCREW 5

27

7223481

MOTOR, DRIVE HYD See Illustration HYDROSTATIC MOTOR/ NA6934 single speed

27

7223482

MOTOR, DRIVE HYD 2-SPD See Illustration HYDROSTATIC MOTOR & BRAKE/ NA6935

28

7217296

DRIVECASE W/O .5'' hyd control valve drivecase weld-on spacer plate
