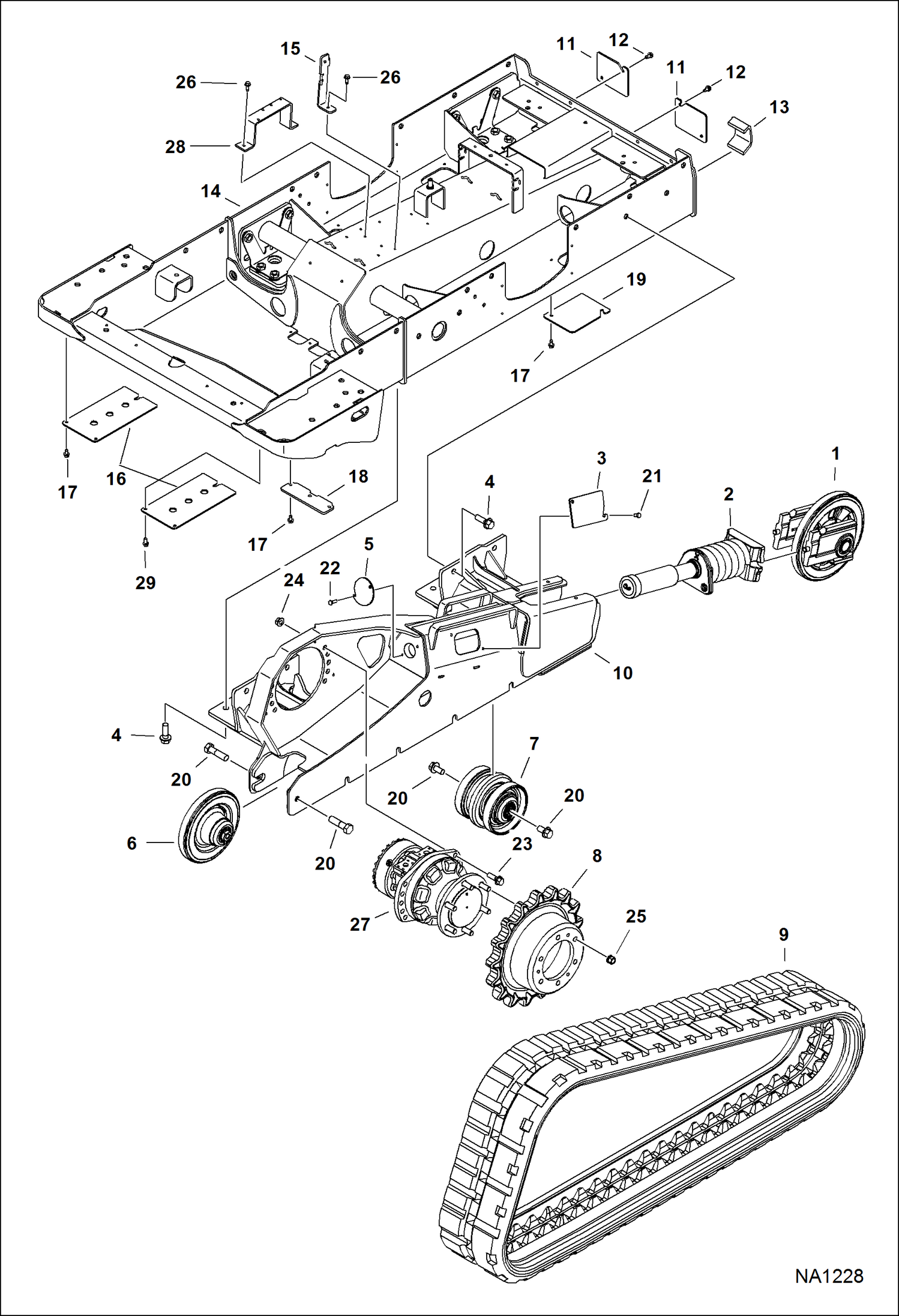

Запчасти Bobcat T-Series DRIVE TRAIN (Solid Mount) (S/N A7PU11001 - 13475 & 13506) DRIVE TRAIN

1

IDLER, FRONT See Illustration FRONT IDLER/ PE2554

2

TENSIONER, TRACK ASSY See Illustration TRACK TENSIONER/ NA2175

3

7137132

COVER

4

31C1236

BOLT

5

7143346

COVER, ACCESS

6

IDLER, REAR See Illustration REAR IDLER/ PE2555

7

ROLLER, TRACK See Illustration TRACK ROLLER/ PE2556

8

7165109

SPROCKET, MOTOR DRIVE TRACK single speed - 6 hole

8

7196807

SPROCKET, MOTOR DRIVE TRACK 2-speed - 8 hole

9

TRACK, RUBBER See Illustration TRACKS/ NA6161

10

7153258

FRAME,TRACK RH

10

7153260

FRAME, TRACK LH

11

6737088

COVER, ACCESS irregular shape - 146 x 127 mm (5.75 x 5'')

11

7240780

COVER, ACCESS 159 x 127 mm (6.25 x 5'') - Was 6716010 - A

12

84G3720

BOLT

13

7134445

BRACKET, TIE-DOWN weld-on

14

7130836

DRIVECASE

15

7151466

BRACKET

16

7145347

COVER

17

84G3712

BOLT 5

18

7159094

COVER, DRAIN

19

7158703

COVER, ACCESS

20

31C1224

BOLT services 31C1228 in this application

21

17C610

BOLT

22

17C616

BOLT 5

23

31C1032

BOLT

24

53D10

NUT

25

6674724

NUT single speed motor

25

7020903

NUT 2-speed motor

26

84G3716

SCREW 5

27

MOTOR, DRIVE HYD See Illustration HYDROSTATIC MOTOR/ NA1304 single speed

27

7010257

MOTOR, DRIVE HYD 2-SPD See Illustration HYDROSTATIC MOTOR & BRAKE/ NA2870

27

MOTOR, DRIVE HYD 2-SPD See Illustration HYDROSTATIC MOTOR & BRAKE/ NA6498

28

7156246

MOUNT

29

35C612

BOLT
