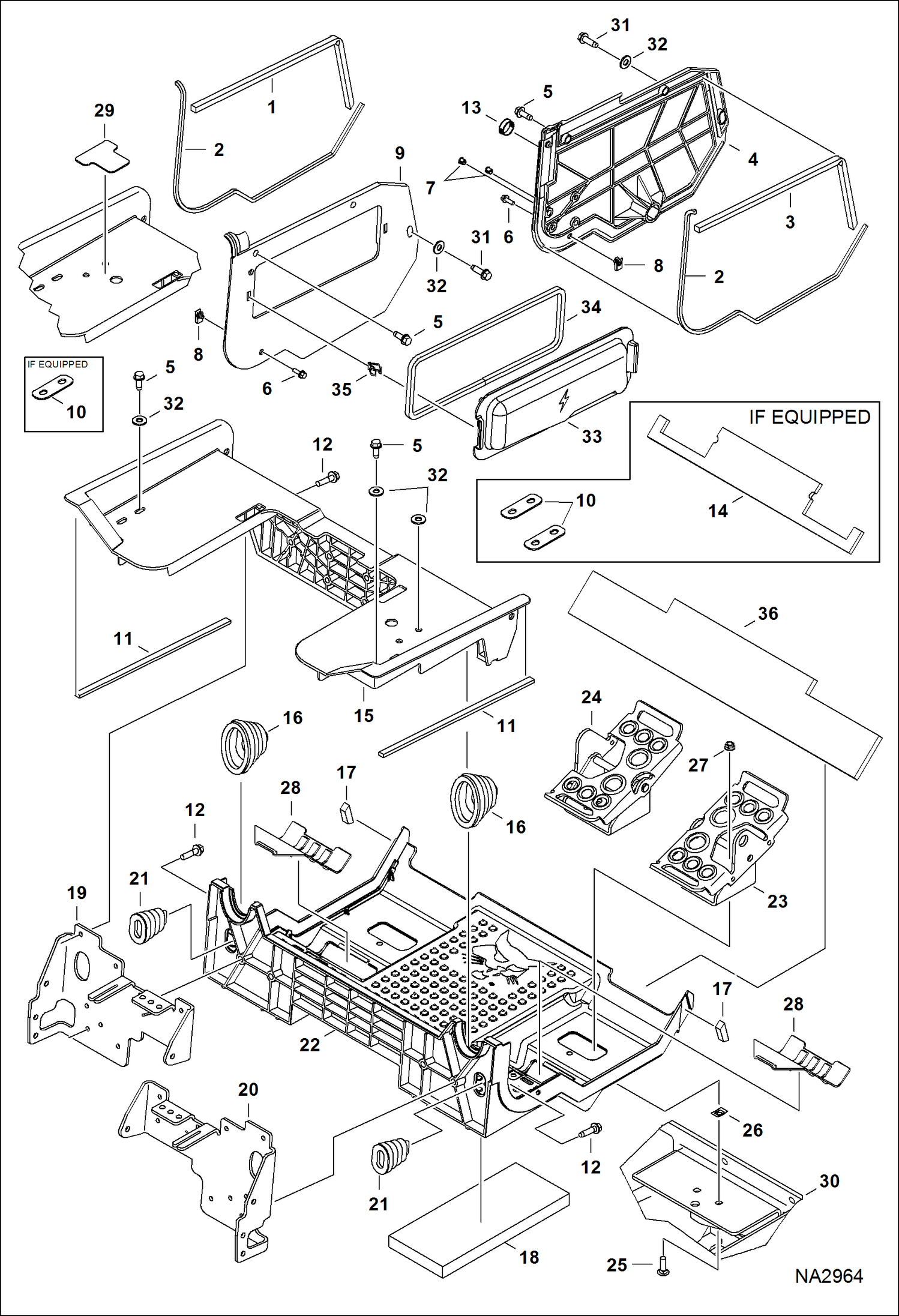

Запчасти Bobcat T-Series PANELS (Floor Pan) (Manual Controls, AHC & ACS) (S/N A7PU11664 & Above) MAIN FRAME

1

7166197

FOAM, PANEL LH

2

7166199

FOAM, EDGE

3

7166198

FOAM, PANEL RH

4

7180032

PANEL, RH

5

84G3716

SCREW 5

6

35C412

BOLT

7

5289686

PLUG black - 0.38'' dia hole

8

7160765

NUT

9

7196671

PANEL, LH

10

PLATE, WASHER NLA - Order (2) of Ref. 32 - Was 7167118 - A

11

7166196

FOAM, PANEL

12

84G3724

BOLT

13

7166315

PLUG

14

7163132

FOAM, FRONT

15

7185169

PANEL, STEERING Was 7180037 - A

16

7147815

BOOT

17

7166200

FOAM, PAN FLOOR

18

7166195

PAD, PAN FLOOR

19

7176118

MOUNT

20

7176117

MOUNT

21

7153503

BOOT

22

7156917

PAN, FLOOR

23

PEDAL ASSEMBLY See Illustration CONTROL PEDALS/ NA2726 - RH

24

PEDAL ASSEMBLY See Illustration CONTROL PEDALS/ NA2726 - LH

25

37C620

BOLT

26

6684033

NUT

27

57D6

NUT 5

28

7164345

COVER, PAN FLOOR

29

7185170

COVER Use W/Ref. 15 to cover three holes if present on the LH side

30

DRIVECASE See Illustration DRIVE TRAIN/ NA1228 See Illustration DRIVE TRAIN/ NA1233

31

84G3720

BOLT

32

25E18

WASHER

33

7197082

COVER W/Ref. 34 & 35

34

7205329

SEAL, COVER

35

7165333

CLIP
