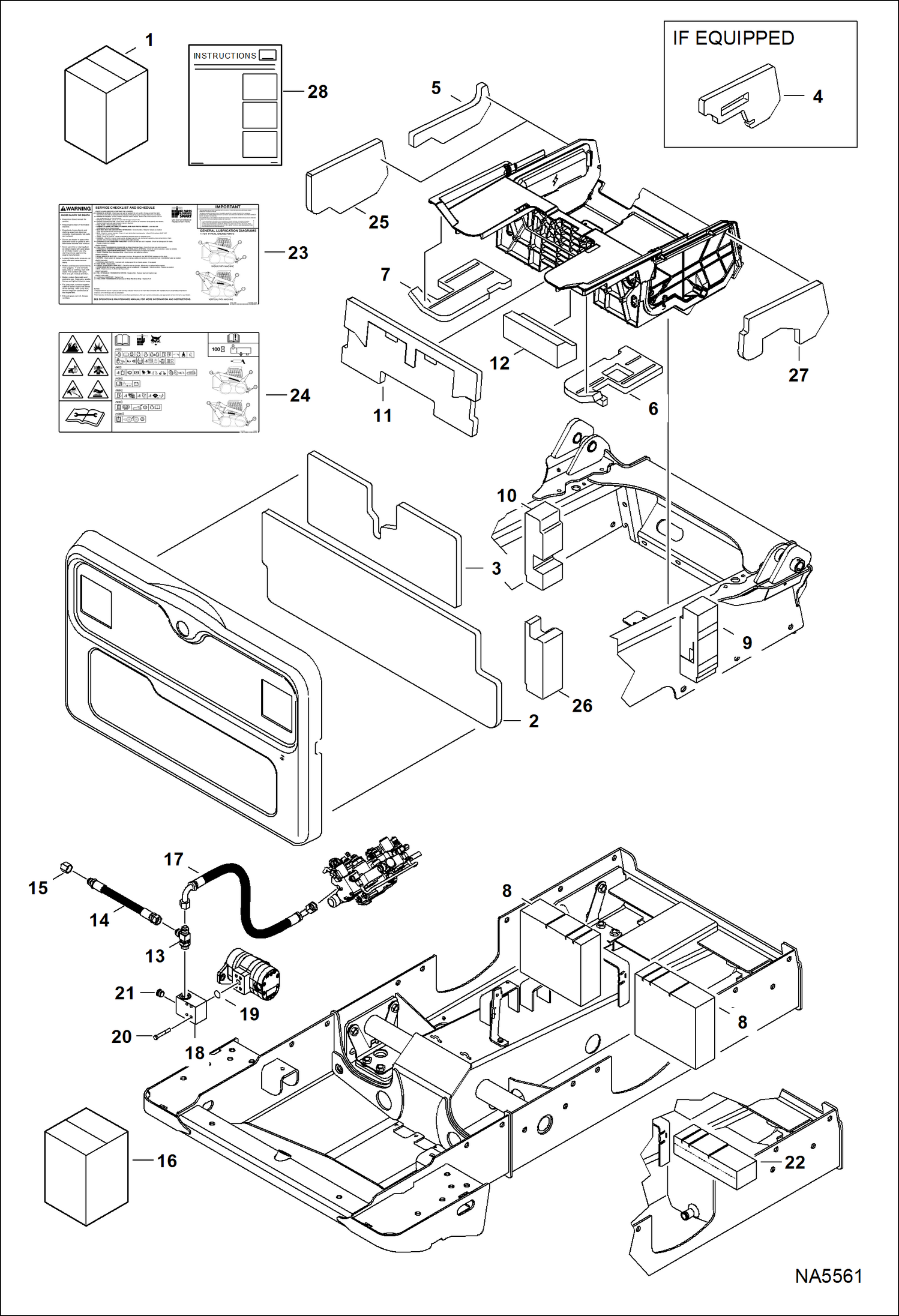

Запчасти Bobcat T-Series SOUND/NOISE REDUCTION KIT ACCESSORIES & OPTIONS

1

KIT, SOUND/NOISE REDUCTION NLA - Ref. 2-15 & 17-26 & 28 - for loaders W/O Ref. 18 manifold and not equipped with Power Bob-Tach, Also Order Ref. 16 - Was 7172902 - A

1

7213438

KIT, SOUND/NOISE REDUCTION Ref. 2,3,5-14,16-28

2

7171192

INSULATION, DOOR REAR

3

7171194

INSULATION, DOOR REAR

4

7196358

INSULATION RH

5

7198481

INSULATION, PANEL LH

6

7171219

INSULATION, PANEL RH

7

7171220

INSULATION, PANEL LH

8

7230944

INSULATION Was 7174849 - A

9

7230941

INSULATION Was 7196318 - B

10

7172023

INSULATION, FENDER

11

7173982

INSULATION, CROSSMEMBER

12

7174850

INSULATION,TRANSMISSION

13

21KB1212

FITTING, HYD TEE

14

7185232

HOSE, HYD muffler

15

36K8

CAP

16

KIT, MANIFOLD NLA - not in kit - Order Ref. 17-21

17

7219833

HOSE, HYD Was 7172235 - A

18

7226207

MANIFOLD, OUTLET PUMP Was 7029565 - A

19

55K214

O-RING

20

17C644

BOLT

21

24K6

FITTING Was 47K7 - B

22

7180052

INSULATION, TRANS

23

7205726

DECAL, SERVICE Was 7167998 - A

24

7205727

DECAL, SERVICE no text - EMEA - Was 7168042 - A

25

7171218

INSULATION, PANEL LH

26

7230942

INSULATION Was 7202003 - B

27

7213424

INSULATION, PANEL

28

6987338

INSTRUCTIONS
