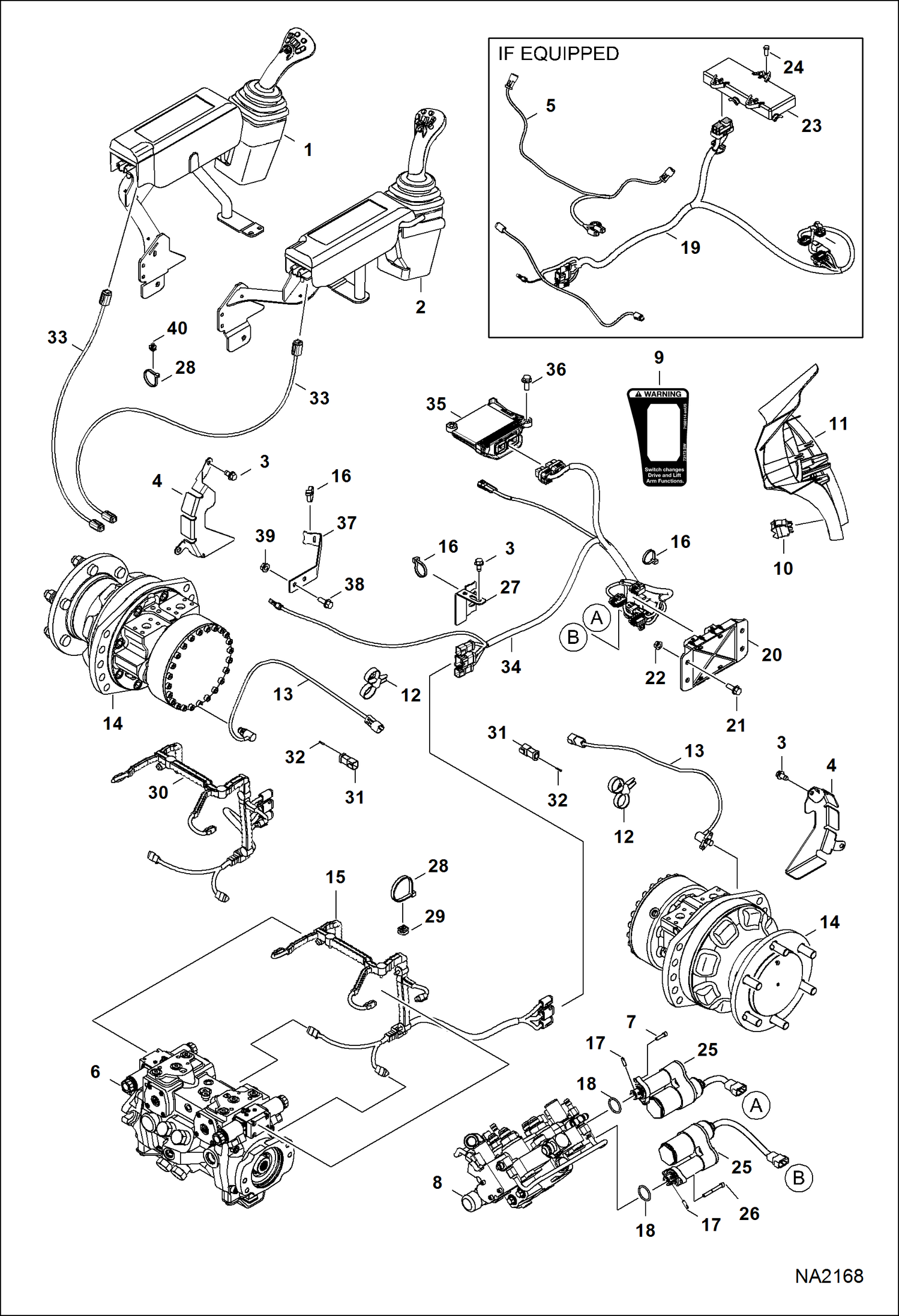

Запчасти Bobcat T-Series CONTROLS ELECTRICAL (Selectable Joystick Controls) ELECTRICAL SYSTEM

1

JOYSTICK, SJC LH See Illustration CONTROLS ELECTRICAL/ NA2169

2

JOYSTICK, SJC RH See Illustration CONTROLS ELECTRICAL/ NA2169

3

84G3712

BOLT 5

4

7143444

COVER, SENSOR SPEED

4

7189826

COVER 2-Speed

5

7163706

HARNESS, JOYSTICK

6

PUMP, HYD See Illustration HYDROSTATIC PUMP/ MS2184

7

29G416

BOLT

8

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA1217

9

7168114

DECAL, SWITCH

10

7001710

SWITCH, ISO

11

PANEL, RH See Illustration OPERATOR CAB/ NA1161

12

6678668

STRAP, DUAL TIE

13

SENSOR, SPEED See BTI419 - NLA - Was 7139902

13

25K20016

O RING 10 Was 25K20100 - B,D

14

MOTOR, HYD See Illustration HYDROSTATIC MOTOR/ NA1304

15

HARNESS, PUMP NLA - Order Ref. 30 - Was 7169309 - A

16

6624289

STRAP, TIE

17

7108236

PIN

18

58K120

O-RING

19

HARNESS, SJC See BTI419 - NLA - W/Speed sensor connectors - Was 7159458 - A

19

7210504

HARNESS, SJC W/O speed sensor connectors

20

6680410

CONTROLLER plastic - W/ 3-connector plug

21

17C616

BOLT 5

22

97D6

NUT 10

23

6679485

CONTROLLER SJC

24

43C616

BOLT

25

7101672

ACTUATOR W/Ref. 18

26

69G436

BOLT

27

7122359

BRACKET

28

6690690

STRAP, TIE

29

6690688

TREE MOUNT

30

7188448

HARNESS, PUMP

31

6691419

CONNECTOR, ELECTRICAL

32

6665370

PLUG
