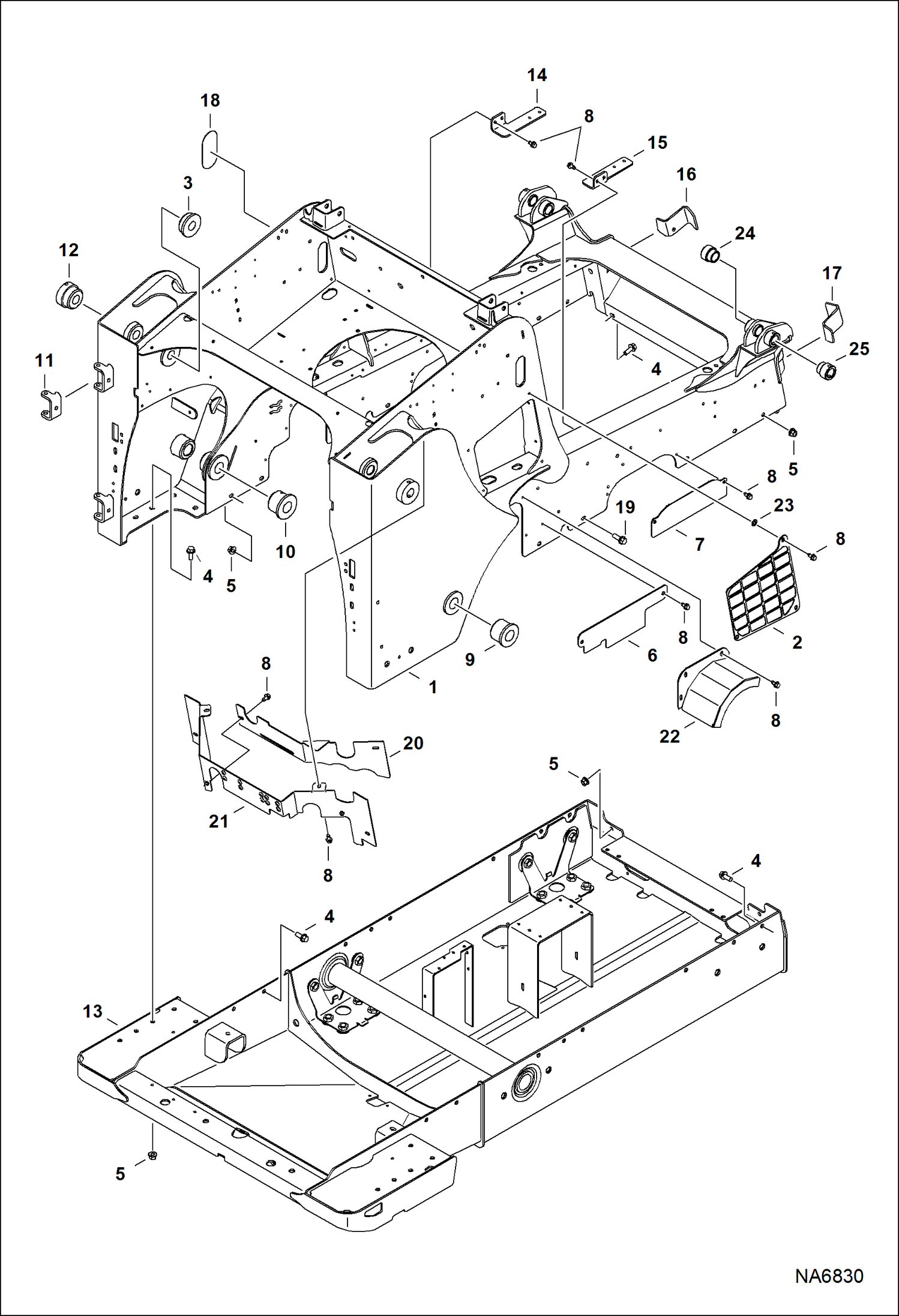

Запчасти Bobcat T-Series MAIN FRAME MAIN FRAME

1

7147889

FRAME, MAIN ASSY

2

7189453

LOUVER RH

2

7189454

LOUVER LH

3

7140749

BUSHING, WELD-ON inside upright weld-on

4

31C820

BOLT

5

83D8

NUT 5

6

7184392

COVER single speed

7

7136973

COVER

8

84G3712

BOLT 5

9

7147896

BUSHING, WELD-ON outside upright

10

7147897

BUSHING, WELD-ON inside upright

11

6708987

HINGE, WELD-ON

12

7140748

BUSHING, WELD-ON outside upright

13

CHAINCASE See Illustration DRIVE TRAIN/ NA6749 See Illustration DRIVE TRAIN/ NA6748

14

7202799

BRACKET, SUPPORT LH

15

7202800

BRACKET, SUPPORT RH

16

7184008

GUIDE LH - weld-on

17

7184007

GUIDE RH - weld-on

18

7194975

GAUGE, SIGHT

19

31C824

BOLT 10

20

7219194

PANEL, ACCESS

21

7219193

PANEL, CROSSMEMBER

22

7225536

SHIELD, RH 152.4 mm (6'') wide

22

7225541

SHIELD, RH 200.6 mm (7.9'') wide

22

7225537

SHIELD, LH 152.4 mm (6'') wide

22

7225542

SHIELD, LH 200.6 mm (7.9'') wide

23

6674264

RETAINER NUT

24

6717278

BUSHING, WELD-ON

25

6717277

BUSHING, WELD-ON
