Запчасти Bobcat T-Series DRIVE TRAIN (Suspension) DRIVE TRAIN

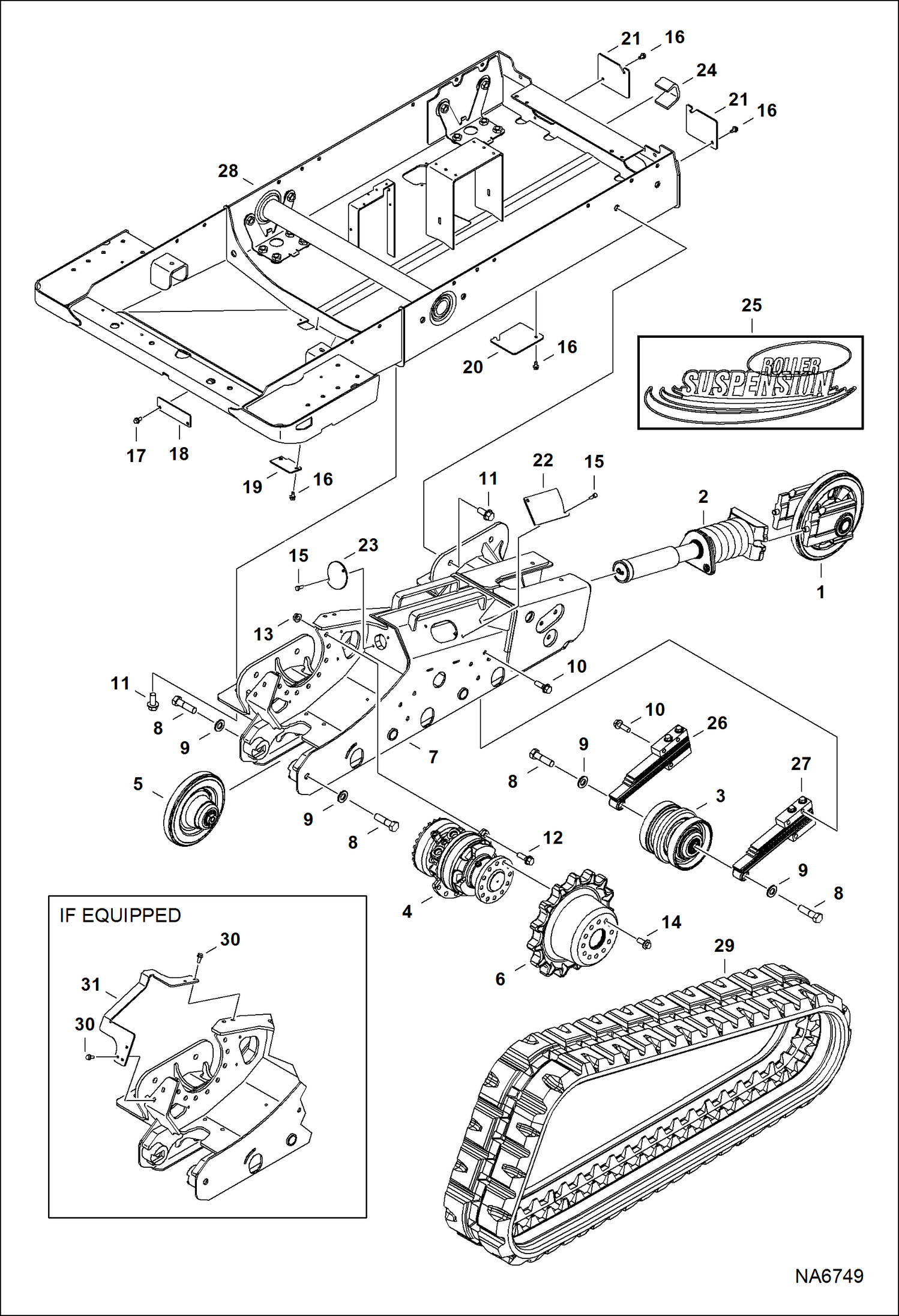

Схема запчастей Bobcat T-Series - DRIVE TRAIN (Suspension) DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

IDLER, FRONT See Illustration FRONT IDLER/ PE2554

2

TENSIONER, TRACK ASSY See Illustration TRACK TENSIONER/ NA6746

3

ROLLER, TRACK See Illustration TRACK ROLLER/ PE2556

4

MOTOR, DRIVE

5

IDLER REAR See Illustration REAR IDLER/ PE2555

6

7166679

SPROCKET, MOTOR DRIVE TRACK

7

7173021

FRAME, TRACK RH

7

7173022

FRAME, TRACK LH

8

7143955

BOLT

9

28E14

WASHER

10

7139763

SCREW

11

31C1228

BOLT

12

31C1032

BOLT

13

53D10

NUT

14

29CM1640

BOLT

15

17C616

BOLT 5

16

84G3712

BOLT 5

17

35C612

BOLT

18

7210048

COVER, PLATE

19

7190754

COVER, DRAIN

20

7240780

COVER, ACCESS Was 6716010 - A

21

7240780

COVER, ACCESS if equipped - Was 6716010 - A

22

7137132

COVER

23

7143346

COVER, ACCESS

24

6706485

HOOK

25

7146178

DECAL

26

7131653

SPRING, SUSPENSION

27

7131652

SPRING, SUSPENSION

28

7202098

TRANSMISSION, COMPLETE ASSY

28

7226303

DRIVECASE

29

TRACK, RUBBER See Illustration TRACKS/ NA6825

30

84G3716

SCREW 5

31

7172910

SHIELD, BOTTOM RH RH - if equipped

31

7172911

SHIELD, BOTTOM LH LH - if equipped

Выбрано товаров: 34
