Запчасти Bobcat T-Series TURBOCHARGER POWER UNIT

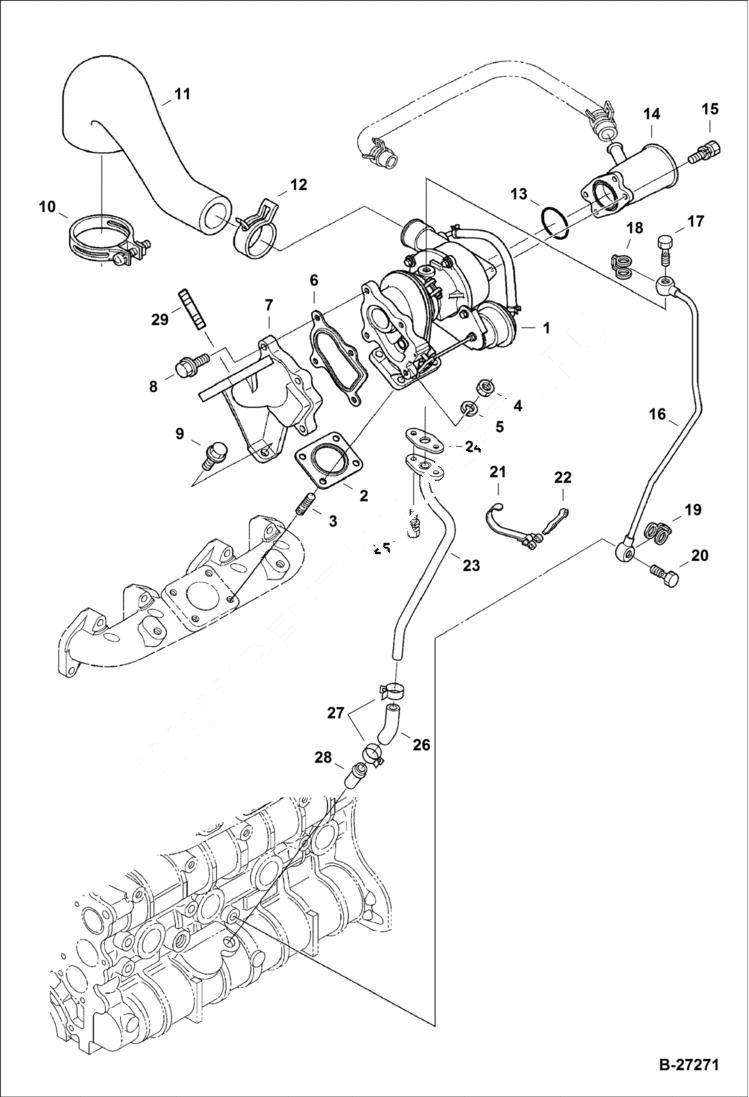

Схема запчастей Bobcat T-Series - TURBOCHARGER POWER UNIT

Артикул

Название

Примечание

Количество

1

7020831

TURBOCHARGER

2

7000678

GASKET, TURBOCHARGER

3

6680564

STUD

4

6652792

NUT

5

6667422

WASHER

6

7000679

GASKET, FLANGE MUFFLER

7

7000755

FLANGE, MUFFLER

8

6657416

BOLT

9

6686043

BOLT

10

6655143

BAND bolt type

10

7012017

CLAMP, HOSE screw type

11

7000657

HOSE, AIR FORMED

12

6686046

CLAMP

13

7000598

O-RING

14

7000656

FLANGE, INTAKE

15

6653584

BOLT

16

7000764

PIPE, OIL

17

6685598

BOLT

18

7000642

WASHER, SEALING COPPER

19

6689331

GASKET

20

7023827

BOLT, EYE

21

6685601

CLAMP

22

6680576

PIN

23

7000765

PIPE, OIL

24

6680570

GASKET

25

1CM614

SCREW Was 4CM614 - A

26

6685600

TUBE

27

6675618

CLAMP

28

6655880

PIPE

29

6680799

STUD

Выбрано товаров: 30
