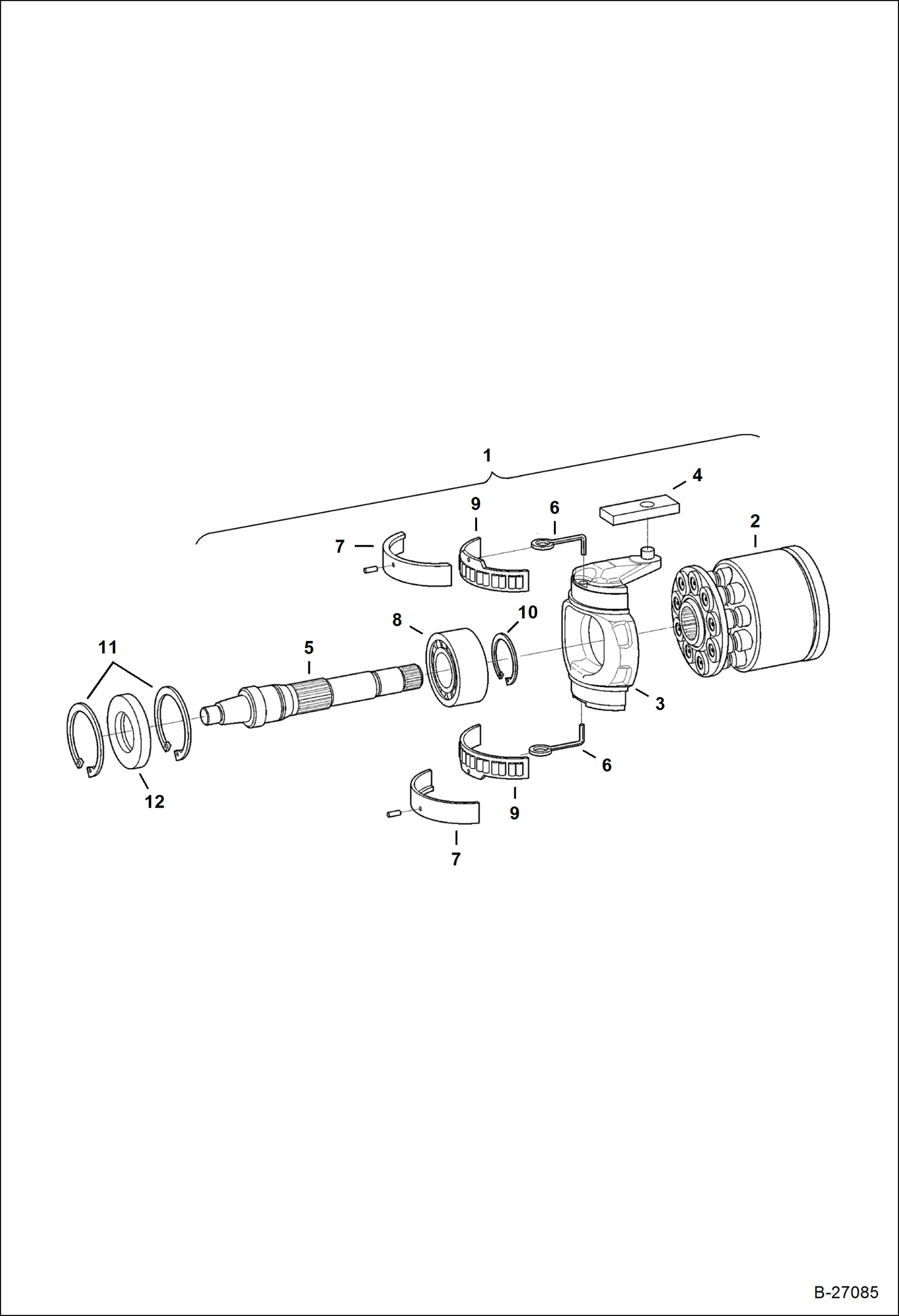

Запчасти Bobcat T-Series HYDROSTATIC PUMP (Rotating Group - L.H.) (Selectable Joystick Controls) HYDROSTATIC SYSTEM

1

6693871

GROUP, ROTATING LH rotation - model R902124680

1

7001121

GROUP, ROTATING LH rotation - model R902132930

1

7008105

GROUP, ROTATING LH model R902136509

2

ROTARY GRP NLA - W/control plate - Order 6693869 & 6687976 - Was 6693873 - A

2

6693869

ROTARY GRP W/O control plate

2

6687976

PLATE control

3

6687951

SWASHPLATE models R902124680 & R902132930

3

7008117

SWASHPLATE model R902136509

4

6687940

PLATE

5

SHAFT NLA - model R902124680 - Order 7001120 shaft - Also Order 96D16 nut and 6805550 washer - Was 6693875 - A

5

6687959

SHAFT model R902132930 & R902136509 - Was 7001120 - D

6

6687930

WIRE models R902124680 & R902132930

6

7008802

WIRE model R902136509

7

6687956

2 HALF BEARINGS

8

6688018

BEARING

9

6687987

2 HALF BEARINGS models R902124680 & R902132930

9

7008118

BEARING model R902136509

10

6687999

RING, SNAP

11

6671741

SNAP RING

12

6693876

SEAL, SHAFT Was 6688038 - D
