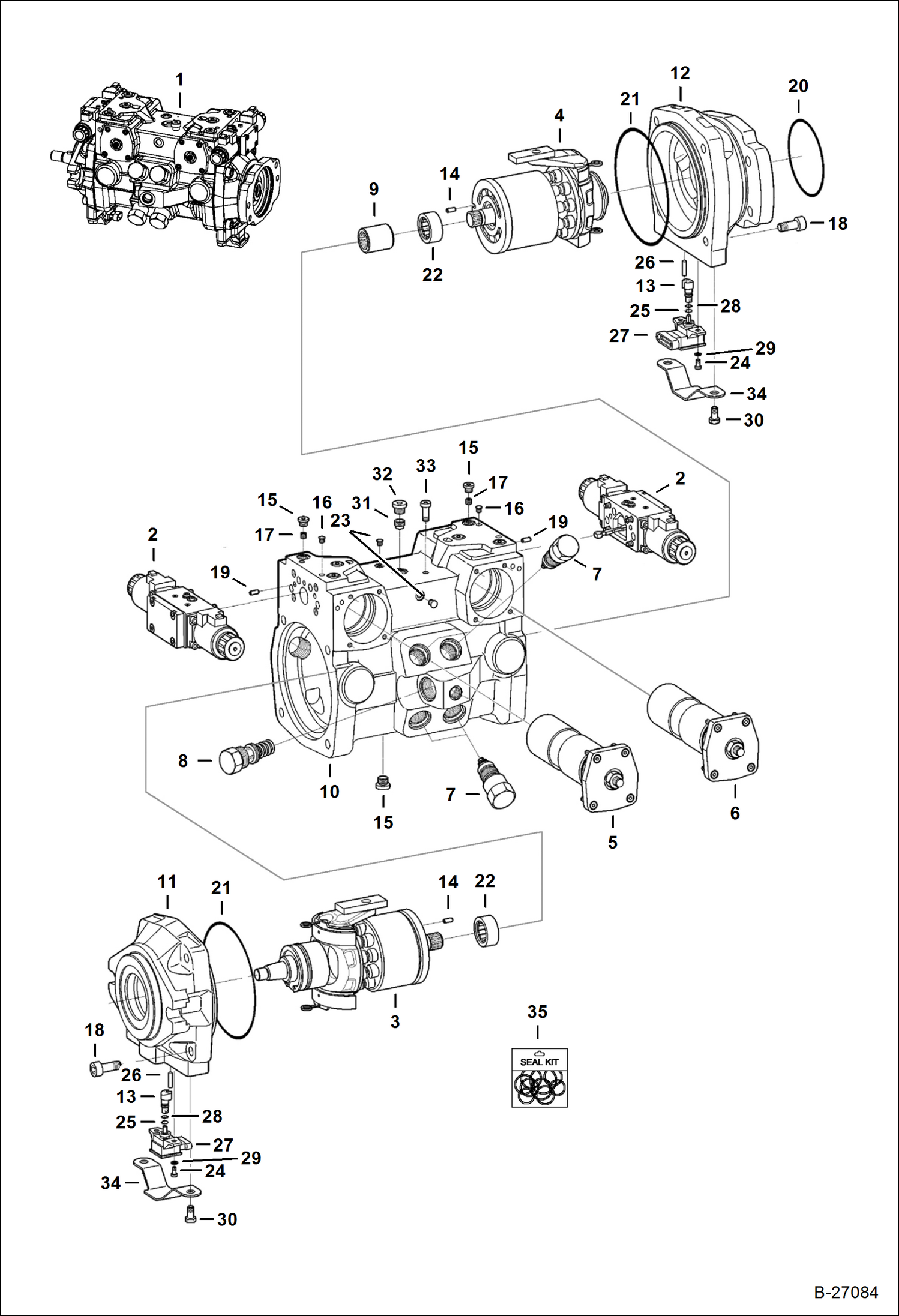

Запчасти Bobcat T-Series HYDROSTATIC PUMP (Selectable Joystick Controls) (S/NA7MP11001-62125, AAKZ11001-35000) HYDROSTATIC SYSTEM

1

PUMP ASSY NLA - Model R902124680 - Order 7158235 pump & 96D16 nut - Was 6692921 - A

1

PUMP, HYD TANDEM ASSY See Illustration HYDROSTATIC PUMP/ NA2245 NLA - Model R902132930 - Order 71700198 pump and 7169309 harness - Was 7158235

2

6687970

MODULATOR See Illustration HYDROSTATIC PUMP/ B25016

3

6693871

GROUP, ROTATING See Illustration HYDROSTATIC PUMP/ B27085 LH rotation - Model R902124680

3

7001121

GROUP, ROTATING See Illustration HYDROSTATIC PUMP/ B27085 LH - Model R902132930

4

6693870

GROUP, ROTATING See Illustration HYDROSTATIC PUMP/ B25012 RH rotation

5

6687960

CONTROL See Illustration HYDROSTATIC PUMP/ B25013

6

6687961

CONTROL See Illustration HYDROSTATIC PUMP/ B25013A

7

6692332

VALVE,RELIEF See Illustration HYDROSTATIC PUMP/ B25014 - preset at 350 bar

8

6687938

VALVE See Illustration HYDROSTATIC PUMP/ B25015

9

6687941

COUPLER

10

6693872

HOUSING Model R902124680

10

7001119

HOUSING, CONTROL PUMP HYD Model R902132930

11

6687973

FLANGE

12

6687974

FLANGE

13

6687965

SHAFT

14

6688011

PIN

15

6682875

PLUG 9/16''-18 - MB port

15

6698343

ORING

16

6682879

PIN

17

ORIFICE See BTI393 Was 6967419 - B

18

6688008

SCREW

19

6682919

PIN

20

6682949

O-RING

21

6688009

SEAL

22

6688040

BEARING

23

6687932

PIN

24

6687994

SCREW

25

6687990

RING

26

6688014

PIN

27

6687984

SENSOR, PUMP HYD POSITION Use W/ 7139761 harness - oval connector

28

6688007

SEAL

29

6687998

SHIM

30

6688003

SCREW

31

6687988

FILTER

32

6682877

PLUG

33

6687992

SCREW

34

7131322

COVER

35

6689021

SEAL KIT complete
