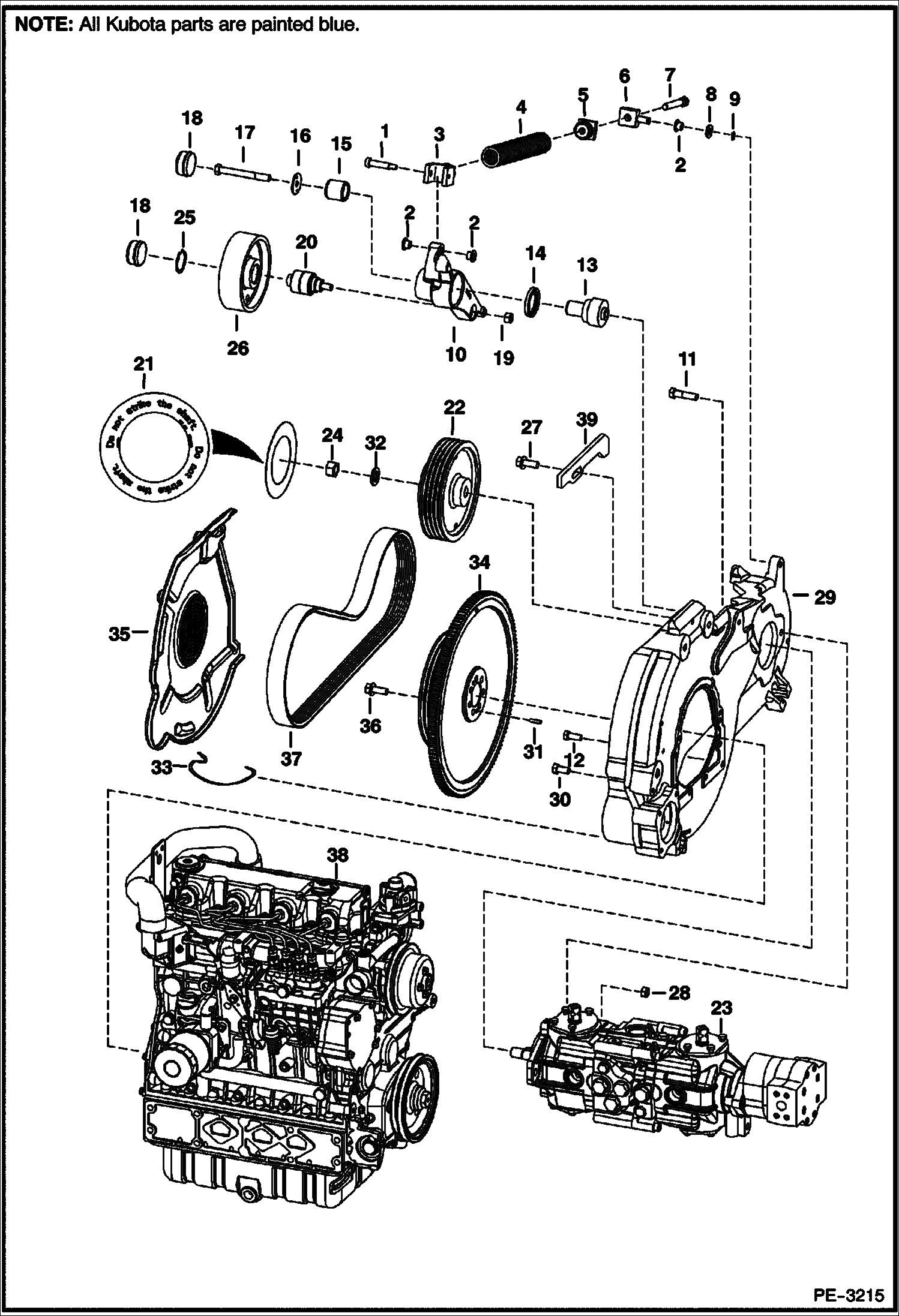

Запчасти Bobcat T-Series ENGINE & ATTACHING PARTS (Belt Drive System) POWER UNIT

1

38C828

BOLT shoulder

2

1313116

BUSHING

3

7109910

ADAPTER SPRING

4

7143534

SPRING ASSY Was 7125257 - A

5

6568425

ADAPTER

6

7113407

PIN SWIVEL

7

6586710

BOLT

8

25E21

WASHER 5

9

6518955

SNAP RING

10

7113353

IDLER MACHINED

11

17C832

BOLT hydrostatic pump mount

12

6730894

BOLT

13

6707699

PIVOT

14

6661377

SEAL

15

6587765

BUSHING, PRESS FIT

16

6707698

WASHER

17

17C872

BOLT

18

6660967

CAP grease

19

95D8

NUT

20

6691330

BEARING

21

DECAL NLA - pulley - do not strike - Was 7122009 - A

22

7149860

PULLEY pump - 8.63 (219mm) OD - Was 7130013 - A

22

7155324

PULLEY, PUMP HYD pump - for Selectable Joysrtick Control pump - 8.63'' (219 mm) O.D. - Was 7141987 - A

23

PUMP See Illustration HYDROSTATIC PUMP/GEAR PUMP/ PE2824

24

96D12

NUT for Manual Control pump

24

6805549

NUT for Selectable Joystick Control pump - pump model R902124680 - A

24

96D16

NUT for Selectable Joystick Control pump - pump model R902132930

25

6665308

SNAP RING

26

7112916

IDLER DRIVE drive idler

27

31C820

BOLT

28

85D8

NUT, 5

29

7141329

MOUNT ENGINE

30

6719828

BOLT

31

14J3112

PIN

32

6576033

WASHER for Manual Control pump

32

6805550

WASHER for Selectable Joystick Control pump

33

6701160

CLIP

34

7138353

FLYWHEEL ASSY W/ring gear

34

6665222

GEAR, RING STARTER

35

7141330

SHIELD DRIVE has webbed center

36

6680747

BOLT, FLYWHEEL

37

7138985

BELT pump drive

38

ENGINE See Illustration ENGINE & UPPER GASKET KIT/ B26841

39

7113382

STOP IDLER idler
