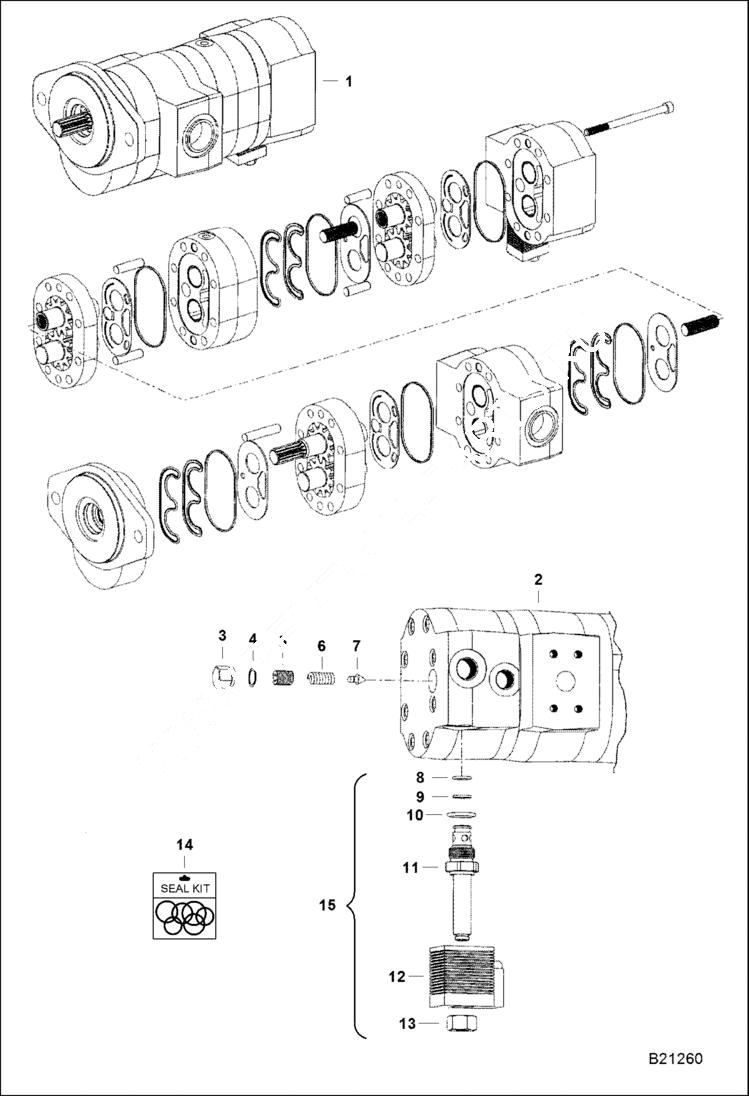

Запчасти Bobcat T-Series HIGH FLOW HYDRAULICS (Double Gear Pump) HIGH FLOW HYDRAULICS

1

PUMP NLA - 163D1295 - for 4445128 pump - Order 6684636 - Was 6681604 - A

1

PUMP NLA - 163D1318 - for 4445142 pump - Order 6684636 - Was 6684455 - A

2

BODY NSS

3

6681486

CAP

4

GASKET NSS - Order Ref 14.(6683205 seal kit)

5

6681484

SET SCREW

6

SPRING NSS - Order Ref 14.(6683205 seal kit)

7

6681482

RELIEF VALVE

8

O-RING NSS - Order Ref 14.(6683205 seal kit)

9

WASHER NSS - back-up - Order Ref. 14(6683205 seal kit)

10

O-RING NSS - Order Ref 14.(6683205 seal kit)

11

VALVE NSS - Order Ref. 15

12

6681491

COIL

13

6681492

NUT

14

6688320

SEAL KIT for 163D1295 & 163D1318 - Was 6682259 - A

14

6683205

SEAL KIT W/Ref. 4, 6-10 & 13

15

6685027

VALVE W/Ref. 8-13 - Was 7002984 - A
