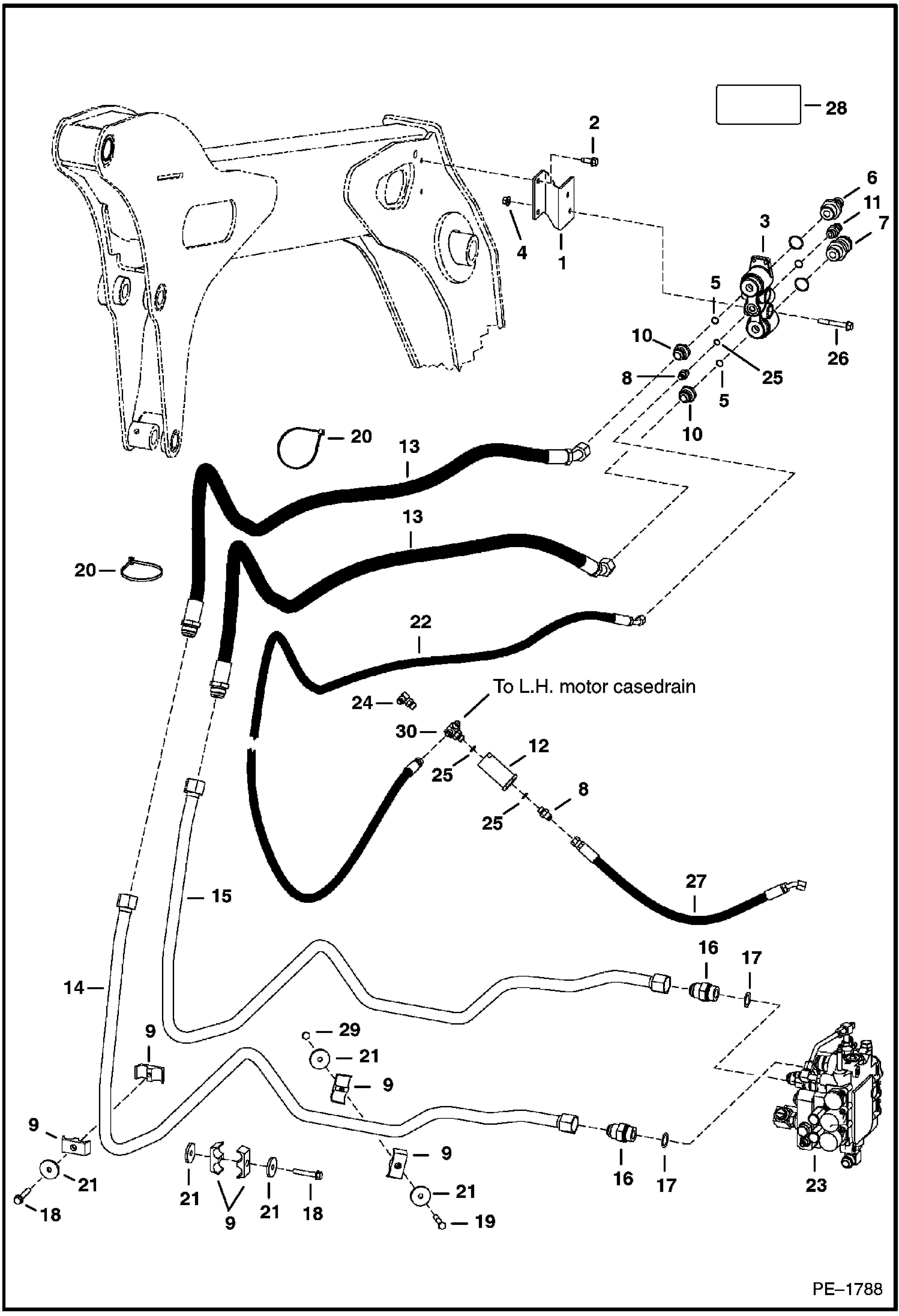

Запчасти Bobcat T-Series AUXILIARY HYDRAULICS (S/N 521911001, 522011001 & Above) (S/N 525411001-13999, 525511001-11999) HYDRAULIC SYSTEM

1

7102414

BRACKET Was 6731199 - A

2

84G3716

SCREW 5

3

6678076

BLOCK Ref. 6, 7, 11 & (2) of Ref. 10

4

83D6

NUT 5

5

79K12

O RING 10

6

6679837

COUPLER male

6

6679841

SEAL blue - front

6

6680020

SEAL KIT (3) O-rings & (3) back-up washers

7

KIT coupler - female - FF - Order 6680018 coupler kit - Was 6679839 - A

7

6680020

SEAL KIT (3) O-rings & (3) back-up washers

8

15KB0606

FITTING, HYD CONNECTOR W/Ref. 25

9

6729320

CLAMP

10

6679836

ADAPTER W/spring & Ref. 5

11

6679838

KIT, COUPLER male casedrain - W/valve, spring, seal & O-ring

11

6679840

SEAL blue

12

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527

13

6734769

HOSE, HYD ASSY Was 6729745 - A

14

6730879

TUBELINE

15

6730878

TUBELINE

16

15KB1612

FITTING, HYD CONNECTOR W/Ref. 17 - Was 6715878 - A

17

79K12

O RING 10

18

84G3736

BOLT

19

17C640

BOLT 5

20

6624289

STRAP, TIE

21

872229

WASHER

22

6729746

HOSE

23

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE1745 See Illustration HYDRAULIC CONTROL VALVE/ PE1729 CONTROL

24

17KB0606

FITTING

25

79K6

O RING 10 tappered boss face

26

31C644

BOLT

27

6702079

HOSE

28

6731757

DECAL, OPERATION to release auxiliary hyd. pressure - not in kit

29

85D6

NUT, 5

30

6725182

TEE
