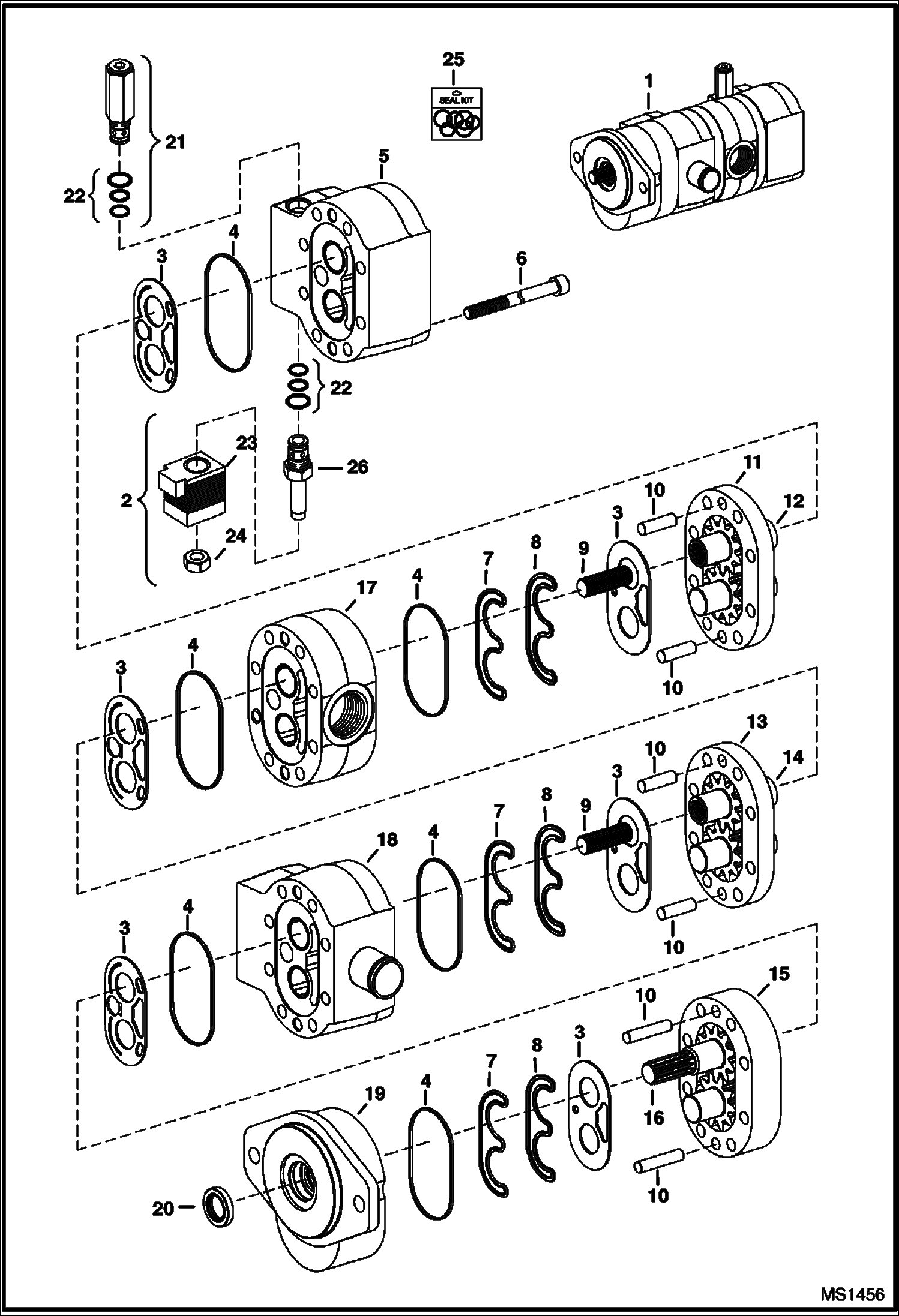

Запчасти Bobcat T-Series HIGH FLOW HYDRAULICS (Gear Pump) HIGH FLOW HYDRAULICS

1

PUMP, GEAR TRIPLE NLA - Model 163D72024 - light gray - Was 6688714 - B

1

6688714

PUMP, GEAR TRIPLE Model 83009899 - dark gray

2

6685027

VALVE W/Ref. 22-24 & 26

3

WEAR PLATE NSS

4

SEAL, SECTION NSS

5

HOUSING, REAR NSS

6

BOLT NSS

7

SEAL, PRE-LOAD NSS

8

SEAL, LOAD NSS

9

CONNECTOR, SPLINE NSS

10

PIN NSS

11

HOUSING, GEAR NSS - #3

12

GEAR SET NSS - #3

13

HOUSING, GEAR NSS - #2

14

GEAR SET NSS - #2

15

HOUSING, GEAR NSS - #1

16

GEAR SET NSS - drive

17

HOUSING, CENTER NSS

18

HOUSING, CENTER NSS

19

HOUSING, FRONT NSS

20

SEAL, SHAFT NSS

21

6685026

VALVE

22

6683206

SEAL KIT

23

6681491

COIL

24

6681492

NUT

25

6688321

SEAL KIT Ref. 3, 4, 7, 8 & 20

26

STEM NSS - Order Ref. 2
