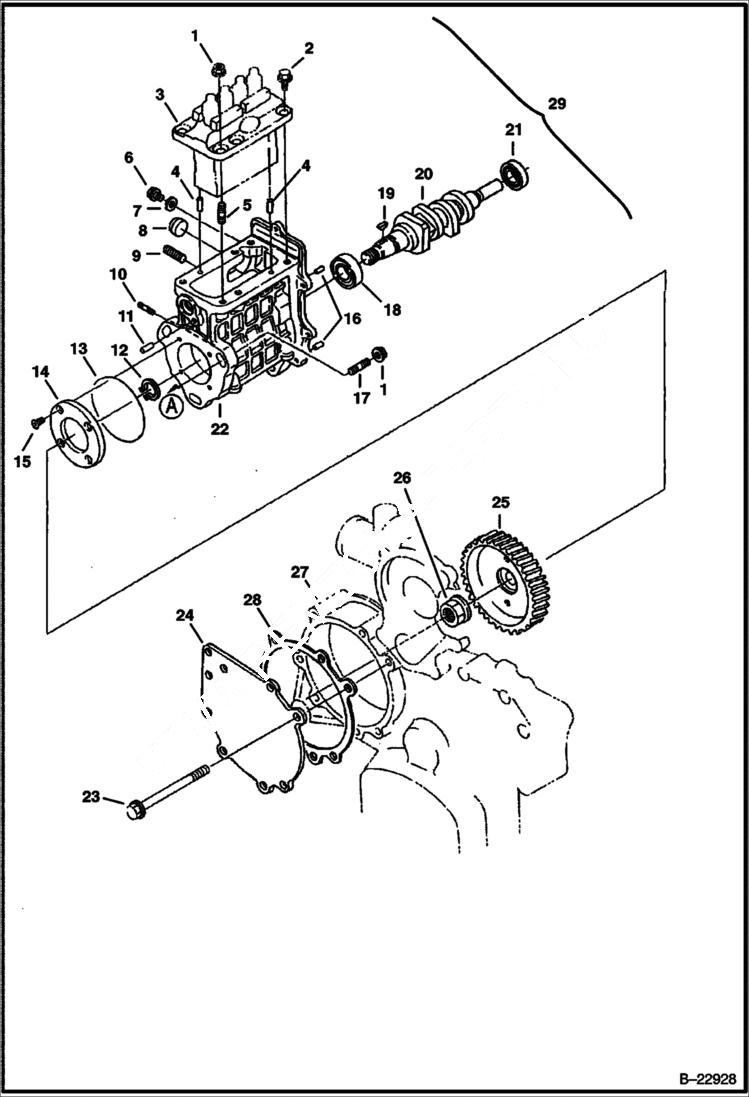

Запчасти Bobcat T-Series FUEL INJECTION SYSTEM (V3300 DI T Kubota) POWER UNIT

1

6680663

NUT

2

6680801

BOLT

3

INJECTION PUMP See Illustration FUEL INJECTION PUMP/ B17614

4

3974394

PIN

5

6680807

STUD

6

6680815

SET SCREW

7

3974095

MET-GASK

8

6680808

PLUG

9

6680815

SET SCREW

10

3974503

STUD

11

21JM20

PIN

12

5JM20

CIRCLIP, EXTERNAL

13

6680816

O-RING

14

6680814

FLANGE

15

6680678

SCREW

16

6680809

PIN

17

6680799

STUD

18

6685950

BEARING, BALL RADIAL & THRUST

19

6680813

KEY woodruff

20

6689309

CAMSHAFT, FUEL fuel - Was 6685949 - A

21

6680812

BEARING

22

6680806

HOUSING W/Ref. 4, 5, 8, 10, & 16

23

6680802

BOLT

24

6685947

COVER

25

6685946

GEAR

26

6680818

NUT

27

FRONT COVER See Illustration FRONT COVER/ B22924

28

6685948

GASKET

29

6685935

PUMP, FUEL INJ ASSY complete w/housing, fuel pump, camshaft, injection pump & governor

29

6685935REM

PUMP, FUEL INJ. KUBOTA V3300 W/ GOVERN. complete w/housing, fuel pump, camshaft, injection pump & governor
