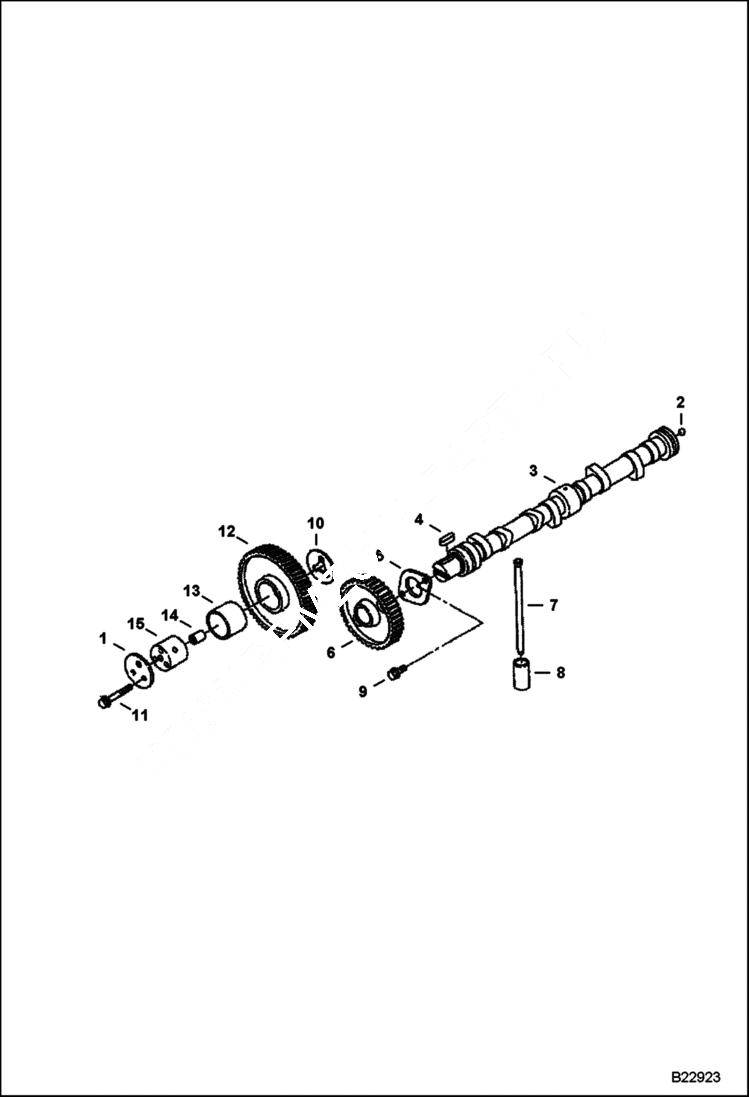

Запчасти Bobcat T-Series CAMSHAFT (V3300 DI T Kubota) POWER UNIT

1

6680717

COLLAR

2

6680710

BALL

3

7017203

CAMSHAFT, VALVE W/Ref. 2 & 4-6 - Was 6680709 - A

4

6652679

KEY

5

6680712

FLANGE

6

7017197

GEAR, CAMSHAFT Was 6680711 - A

7

6680708

PUSH ROD

8

7015269

TAPPET Was 6667428 - A

9

6680662

BOLT

10

6680716

COLLAR

11

6680685

BOLT

12

7017200

GEAR, IDLER W/Ref. 13 - Was 6685932 - A

13

6680720

BUSHING

14

6680715

PIN

15

6680714

SHAFT idler gear
