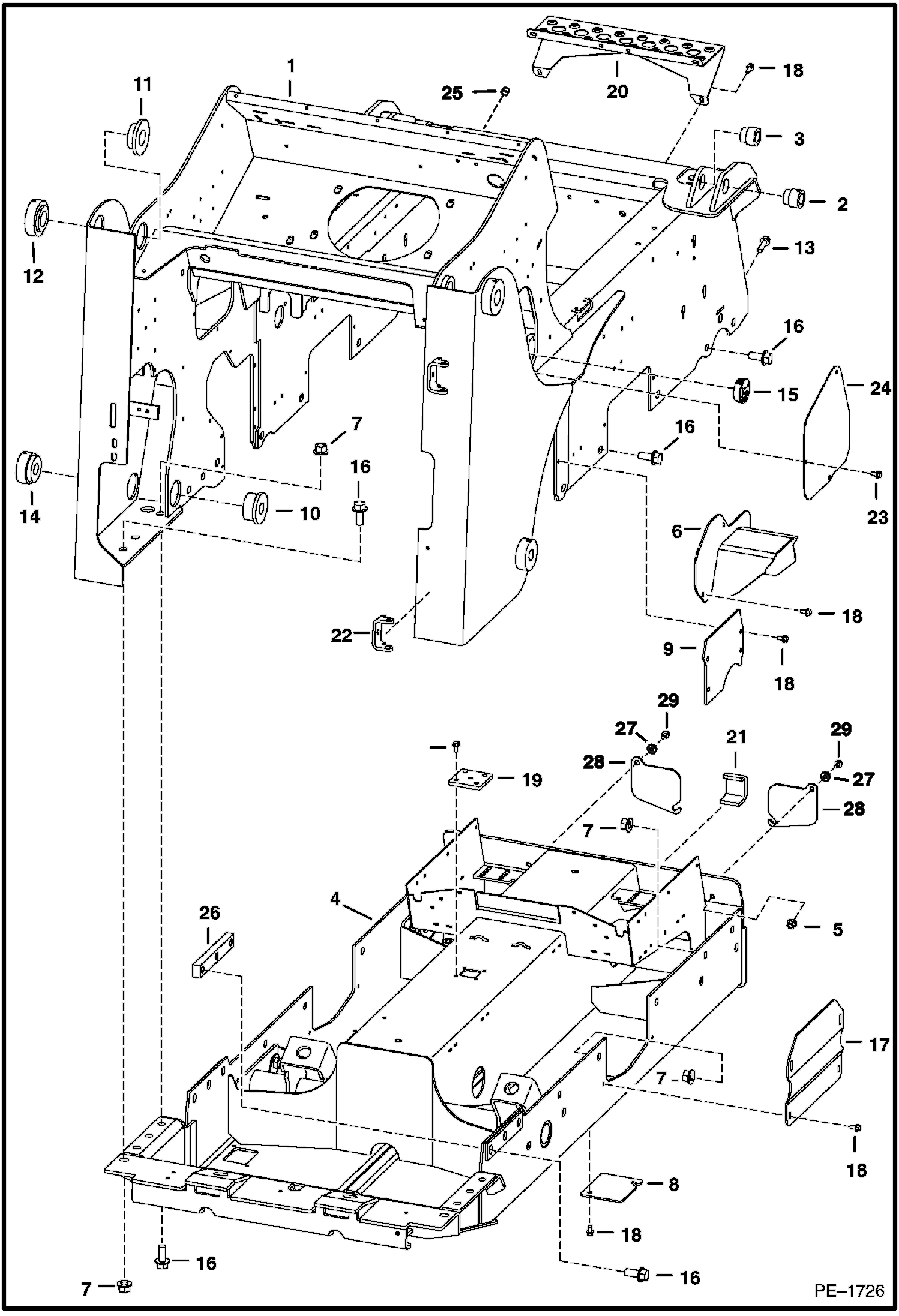

Запчасти Bobcat T-Series MAIN FRAME MAIN FRAME

1

MAIN FRAME NLA - Order 7101453 & 7166136 adapter for cooling fan - modify crossmember for radiator - Was 6731768 - A

1

7101453

MAIN FRAME

1

7114934

STOP See BTI379 weld on - 1'' thick - Was 6733784 - A

2

6717277

BUSHING, WELD-ON weld-on

3

6717278

BUSHING, WELD-ON

4

DRIVECASE

5

83D8

NUT 5

6

COVER NLA - R.H. - Order 6736769 Drill New Holes - Was 6734685 - A

6

6736769

COVER RH

6

COVER NLA - L.H. - Order 6736770 Drill New Holes - Was 6734684 - A

6

6736770

COVER LH

7

53D12

NUT Was 83D000012B - B

8

7240780

COVER, ACCESS Was 6716010 - A

9

COVER NLA - Order 6736772 - Drill New Holes - Was 6732024 - A

9

7124841

COVER Was 6736772 - A

10

6730785

BUSHING inside upright weld-on

11

6729401

BUSHING inside upright weld-on

12

6729402

BUSHING outside upright weld-on

13

31C824

BOLT 10

14

6730784

BUSHING outside upright weld-on

15

6718796

PLUG Bobcat head

16

31C1228

BOLT

17

6719201

COVER

18

84G3712

BOLT 5

19

6730378

COVER

20

6732577

STEP, MFR

21

6706485

HOOK tie down - weld-on

22

6708987

HINGE, WELD-ON

23

84G3708

SCREW

24

6730783

COVER

25

6679966

PLUG

26

6706857

BLOCK threaded

27

6562619

BUSHING

28

COVER NLA - W/Ref. 27 - Was 6577812 - A

28

6737088

COVER, ACCESS

29

84G3720

BOLT
