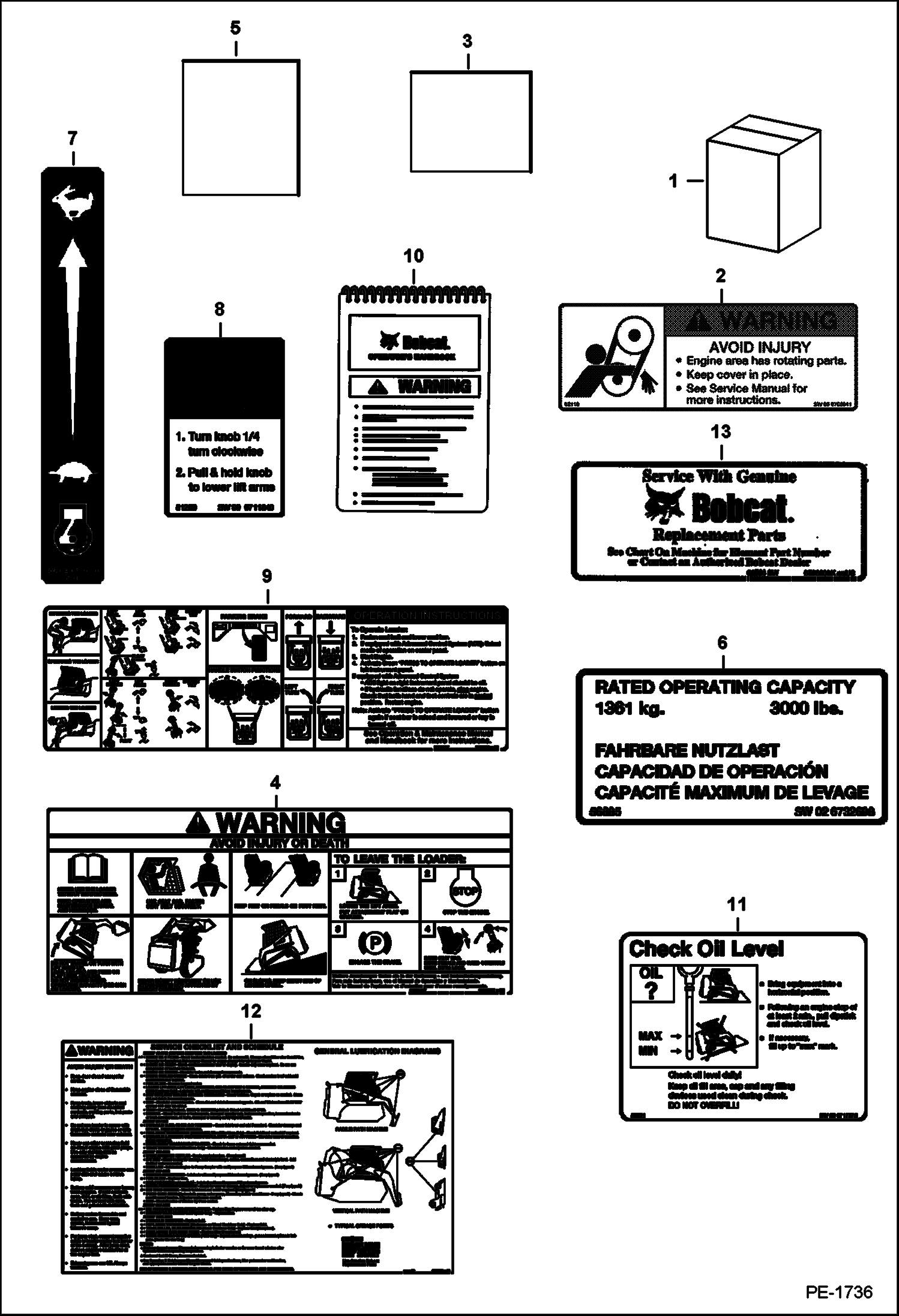

Запчасти Bobcat T-Series DECALS (Inside) ACCESSORIES & OPTIONS

1

6733751

KIT decal - Ref.

1

6733750AR

KIT translation - SEE NOTE

1

7101427AR

KIT translation - SEE NOTE - Tier II engine

1

6733750BR

KIT translation - SEE NOTE

1

7101427BR

KIT translation - SEE NOTE - Tier II engine

1

6733751AR

KIT decal - SEE NOTE

1

6733751BR

KIT decal - SEE NOTE

1

6733751JP

KIT decal - SEE NOTE

2

6708941

DECAL, WARNING rotating parts

3

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

4

6728540

DECAL, WARNING

5

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

6

7149435

DECAL, LOAD operating capacity - Was 6736823 - B

7

6735140

DECAL, THROTTLE

8

6711840

DECAL lift lock

9

6727926

DECAL, OPERATION hand & foot controls - not in kit

9

6717639

DECAL seat & seat bar operating - AHC - W/O seat sensor

10

6902808

HANDBOOK, OPERATOR'S W/WIRE ROPE not in kit - Was 6728607 - A

10

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

10

6558310

SLEEVE wire rope

10

84G3112

BOLT 5

11

6717679

DECAL check oil

12

6734534

DECAL, SERVICE service/warning/filters

13

6565200

DECAL, FILTER
