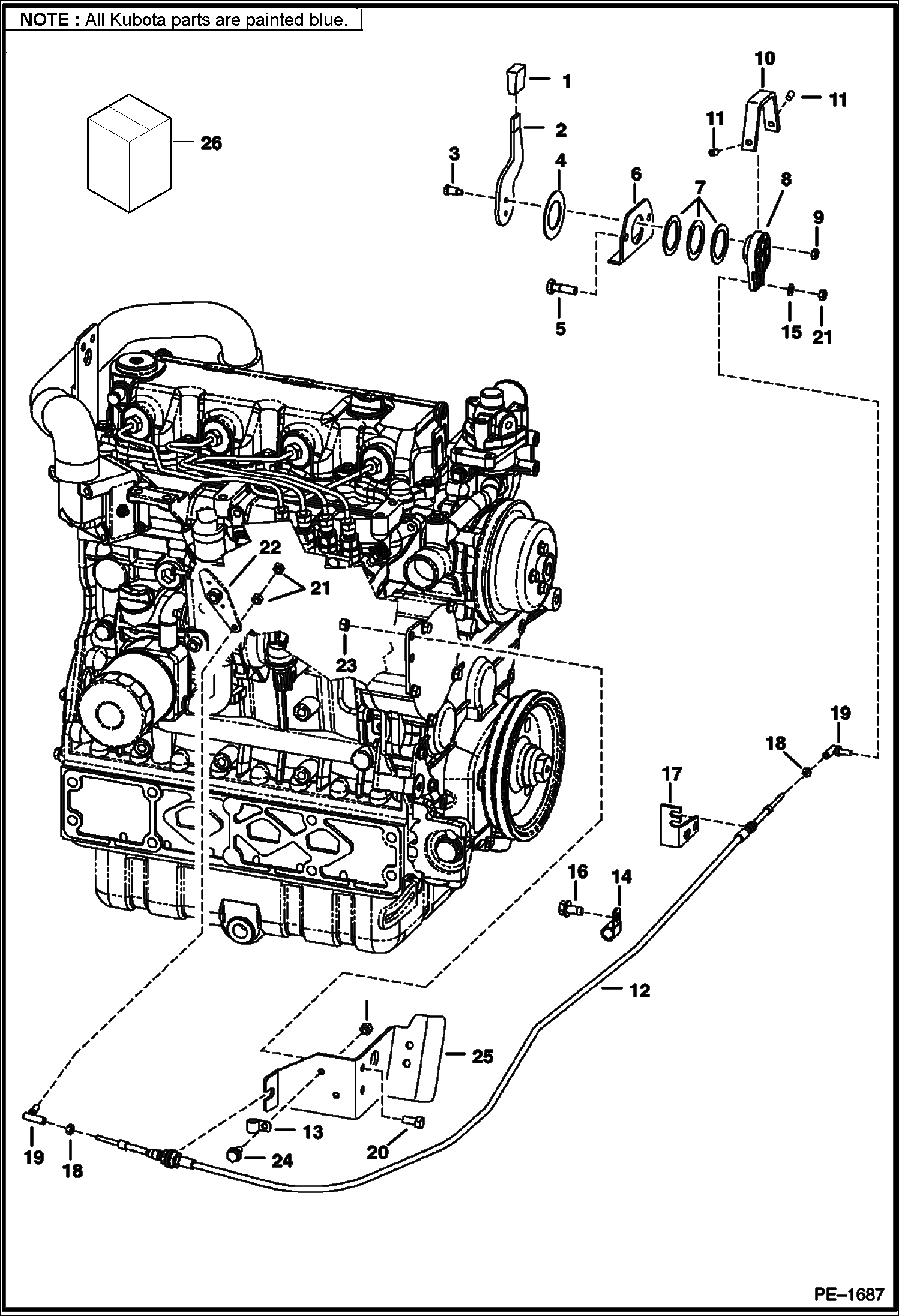

Запчасти Bobcat T-Series ENGINE SPEED CONTROL POWER UNIT

1

6564452

GRIP

2

6705452

LEVER

3

38C610

BOLT shoulder

4

6567962

WASHER

5

84G3724

BOLT

6

6576262

MOUNT

7

6630945

WASHER

8

LEVER NLA - 2-hole rod attachment - Order 6734416 lever - Was 6709022 - A

8

6734416

LEVER 3-hole rod attachment

9

85D5

NUT 5

10

6576261

COVER Was 6734520 - A

11

6706572

SET SCREW

12

6675668

CABLE, THROTTLE

13

30H26

CLIP Was 30H000021B - B

14

30H31

CLAMP 10

15

25E11

WASHER

16

84G3712

BOLT 5

17

6732450

BRACKET

18

14D10

NUT

19

6644965

BALL JOINT

20

17C512

BOLT 5

21

62D4

NUT

22

LEVER See Illustration GOVERNOR/ B26807 See Illustration GOVERNOR/ B17615

23

95D5

NUT

24

84G3110

SCREW

25

6734437

MOUNT Tier I - Was 6730754 - A

25

6734772

MOUNT Tier II
