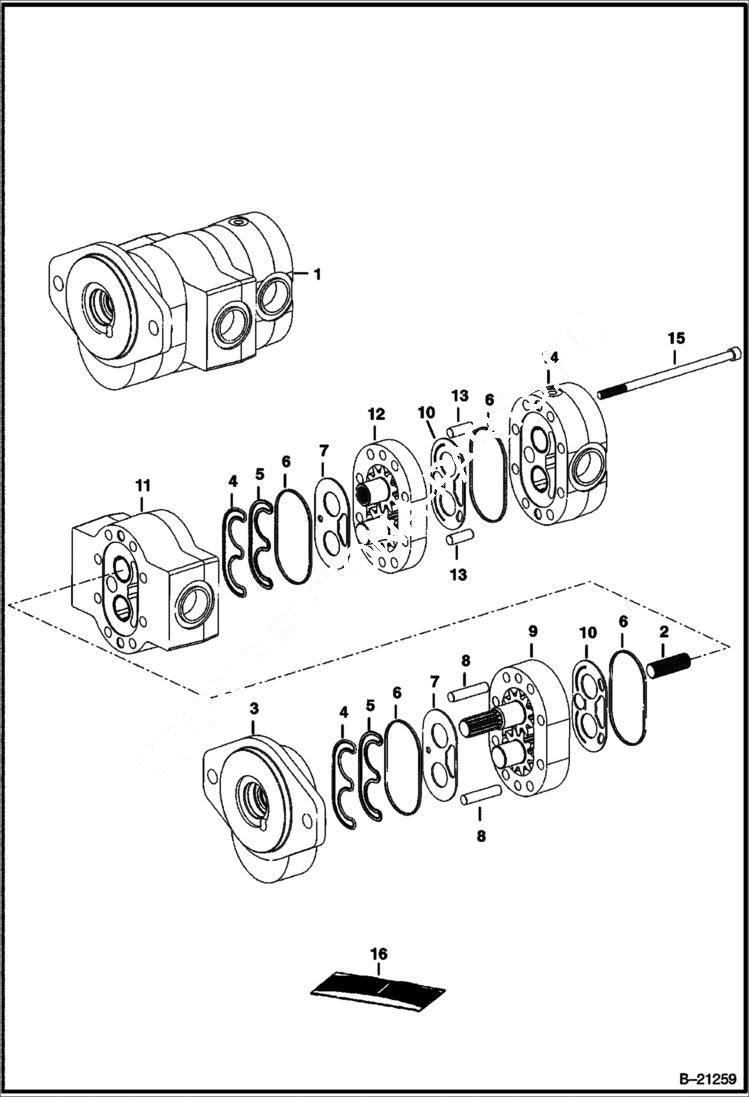

Запчасти Bobcat T-Series GEAR PUMP HYDROSTATIC SYSTEM

1

GEAR PUMP NLA - standard flow - model 163D1294 - for pump 4445129 - Order 6686709 - Was 6681603 - A

1

GEAR PUMP NLA - standard flow - model 163D1316 - for pump 4445143 - Order 6686709 - Was 6684454 - A

1

GEAR PUMP NLA - standard flow - model 163D1316 - for pump 4445164 - Order 6686709 - Was 6682982 - A

1

6686709

PUMP, GEAR DOUBLE standard flow - model 163D1487 - for pump 4445188

2

COVER NSS

3

SNAP RING NSS

4

SEAL NSS - back-up

5

SEAL NSS - load

6

SEAL NSS

7

WEAR PLATE NSS

8

PIN NSS

9

SECTION NSS

10

WEAR PLATE NSS

11

BODY NSS

12

SECTION NSS

13

PIN NSS

14

SECTION NSS

15

BOLT NSS

16

6688327

SEAL KIT Ref. 4-7 & 10 - Was 6682265
