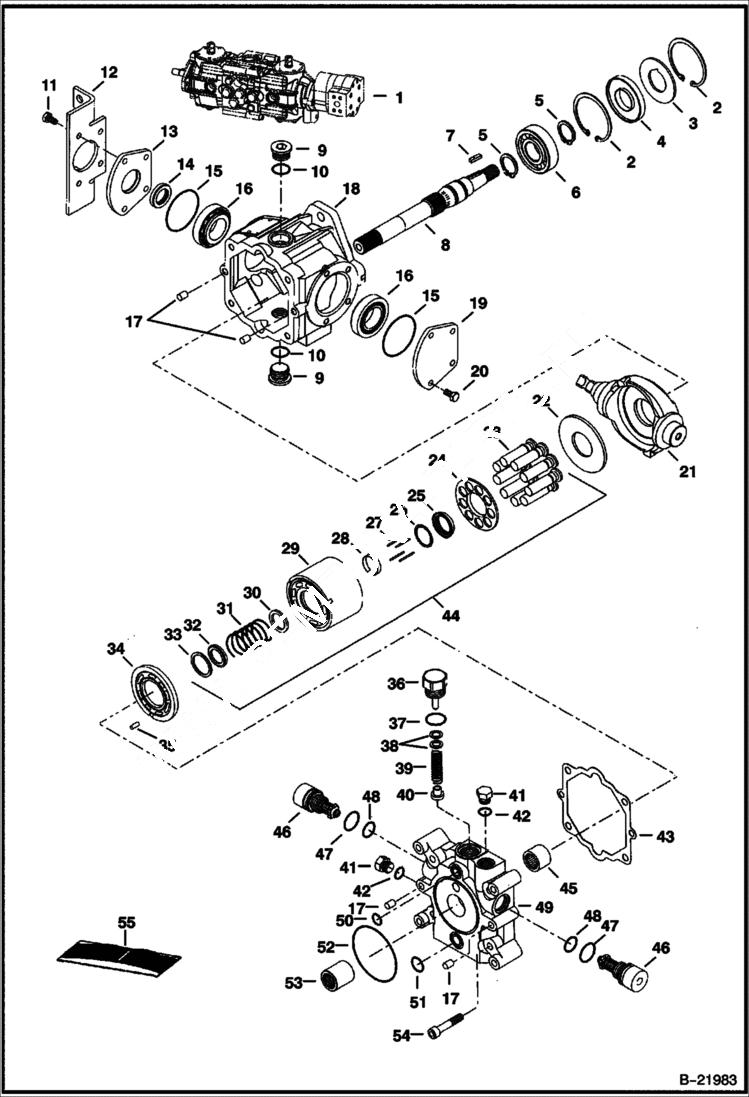

Запчасти Bobcat T-Series HYDROSTATIC PUMP (Left Half) HYDROSTATIC SYSTEM

1

PUMP NLA - Model 4445129 - complete W/gear pump - standard flow - Order 6686708 pump or 6686708REM pump - Also Order 7127545 bracket, 6732575 spacer & 17C824 bolt - must use 6576196 bracket & 6706096

1

PUMP NLA - Model 4445143 - complete W/gear pump - standard flow - Order 6686708 pump or 6686708REM pump - Also Order 7127545 bracket, 6732575 spacer & 17C824 bolt - must use 6576196 bracket & 6706096

1

PUMP NLA - Model 4445143 - complete W/gear pump - standard flow - Order 6686708 pump or 6686708REM pump - Also Order 7127545 bracket - must use 6576196 bracket & 6706096 bracket from original pump - W

1

PUMP NLA - Model 4445164 - complete W/gear pump - standard flow - Order 6686708 pump or 6686708REM pump - Also Order 7127545 bracket - Was 6685036 - A

1

6686708

PUMP, HYD TANDEM Model 4445188 - complete W/gear pump - standard flow - Also Order 7127545 bracket

1

6686708

PUMP, HYD TANDEM Model 4445188 - complete W/gear pump - standard flow

1

6686708REM

PUMP, HYD TANDEM, W/O GEAR PUMP

1

PUMP NLA - Model 4445128 - complete W/gear pump - high flow - Order 6687832 pump or 6687024REM pump - Also Order 6686713 gear pump, 7127545 bracket, 6732575 spacer & 17C824 bolt - must use 6576196 bra

1

PUMP NLA - Model 4445128 - complete W/gear pump - high flow - Order 6687832 pump or 6687024REM pump - Also Order 6686713 gear pump, 7127545 bracket, 6732575 spacer & 17C824 bolt - must use 6576196 bra

1

PUMP NLA - Model 4445142 - complete W/gear pump - high flow - Order 6687832 pump or 6687024REM pump - Also Order 6686713 gear pump, 7127545 bracket - must use 6576196 bracklet & 6706096 bracket from o

1

PUMP NLA - Model 4445158 - complete W/gear pump - high flow - Order 6687832 pump or 6687024REM pump - Also Order 6686713 gear pump & 7127545 bracket - must use 6576196 bracket & 6706096 bracket from o

1

PUMP NLA - Model 4445165 - complete W/gear pump - high flow - Order 6687832 pump or 6687024REM pump - Also Order 6683713 gear pump & 7127545 bracket - Was 6685037 - A

1

PUMP, HYD TANDEM NLA - Model 4445197 - complete W/gear pump E series - high flow - Order 6687832 pump or 6687024REM pump - Also Order 6683713 gear pump - Was 6687024 - A

1

6687024REM

PUMP, HYD TANDEM, W/O GEAR PUMP

1

HYDRO PUMP NLA - Model 4445178 - complete W/gear pump - 40 GPM high flow - Order 6688679 pump & 7127545 bracket or 6685838REM pump - Was 6685838 - A

1

6685838REM

PUMP, HYD TANDEM, W/O GEAR PUMP

1

PUMP, HYD TANDEM ASSY NLA - Model 4445221 - complete W/gear pump - 37 GPM high flow - Order 6687832 pump or 6688679REM pump - Also Order 6688673 gear pump & 7127545 bracket - Was 6688679 - A

1

PUMP, HYD TANDEM ASSY NLA - Model 4445221 - complete W/gear pump - 37 GPM high flow - Order 6687832 pump or 6688679REM pump - Also Order 6688673 gear pump - Was 6688679 - A

1

6688679REM

PUMP, HYD TANDEM, W/O GEAR PUMP

1

6687832

PUMP, HYD TANDEM W/O GEAR PUMP Model 4445208

2

669863

RING, SNAP

3

6669409

WASHER

4

6687191

SEAL, OIL Was 6645090 - A

5

658128

RING, SNAP

6

654299

BEARING

7

6682261

KEY

8

6682260

SHAFT

9

47K8

PLUG W/Ref. 10

10

79K12

O RING 10

11

6671518

BOLT

12

6706096

MOUNT

12

7109905

BRACKET Was 7103314 - A

13

6657067

COVER W/Ref. 14

14

6678226

SEAL, OIL

15

6660814

O-RING

16

6669411

BEARING

17

6675342

PIN

18

6669402

HOUSING

19

6657068

COVER

20

6650668

BOLT

21

SWASH PLATE NLA - Order 6685344 - Was 6671513 - A

21

6685344

SWASHPLATE W/threaded shaft hole - Was 6671513 - A

22

6650627

PLATE

23

PISTON ASSY. NSS - Order Ref. 44

24

RETAINER NSS - Order Ref. 44

25

RETAINER NSS - guide - Order Ref. 44

26

WASHER NSS - Order Ref. 44

27

6650629

PIN hold down

28

6650630

RETAINER

29

BLOCK NSS - Order Ref. 44

30

WASHER NSS - Order Ref. 44

31

SPRING NSS - Order Ref. 44

32

WASHER NSS - Order Ref. 44

33

RETAINING RING NSS - Order Ref. 44

34

6676147

PLATE, VALVE

35

6650636

PIN spring

36

6650648

PLUG charge relief - W/Ref. 37

37

79K10

O RING 10

38

6669410

KIT, SHIM charge relief

39

6673882

SPRING Was 6684038 - A

40

6650652

POPPET charge relief

41

6645086

PLUG W/Ref. 42

42

6661481

O-RING

43

6650634

GASKET

44

6675341

GROUP, ROTARY W/Ref. 23-33

45

6650635

BEARING

46

6670685

RELIEF VALVE 5000 PSI (345 bar) - W/Ref. 48 & 49 - Was 6689601 - A

47

6657028

O-RING

48

79K8

O RING 10

49

7023162

CAP, END Was 6669406 - A

50

6650646

O-RING

51

6650647

O-RING

52

6645081

O-RING

53

6650675

COUPLER

54

6650637

BOLT

55

6671516

KIT, SEAL
